Chapter 1
1-25 Getting Started

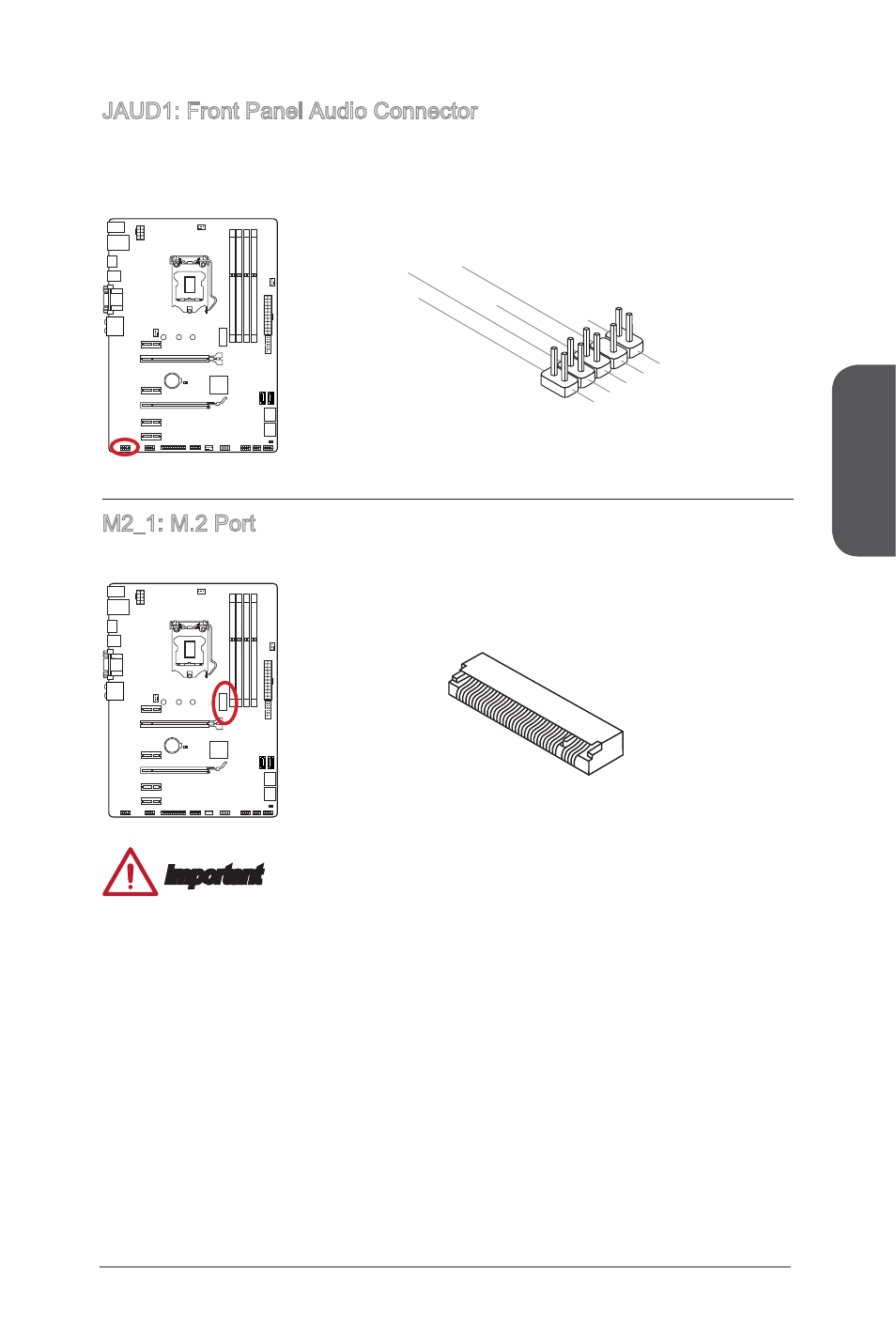

JAUD1: Front Panel Audio Connector
This connector allows you to connect the front audio panel located on your computer
case. This connector is compliant with the Intel ® Front Panel I/O Connectivity Design
Guide.
1.MIC
L
3.MIC
R
10.H
ead
Phon
e De
tectio
n
5.He
ad P
hone
R
7.SE
NSE
_SEN
D
9.He
ad P
hone
L
8.No
Pin
6.MIC
Dete
ction
4.NC
2.Gro
und
M2_1: M.2 Port
The M.2 port supports either M.2 SATA 6Gb/s module or M.2 PCIe module.
Important
The SATA5 and SATA6 ports will be unavailable when installing a module in the
M.2 port.
M.2 PCIe interface only supports UEFI option ROM, NOT support legacy option
ROM.
M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10.
•
•
•
