KMW Communications KMW Programmable Antenna User Manual
Antenna installation guide with site configuration

1
Confidential and Proprietary
KMW Communications
KMW Communications
http://www.kmwcomm.com
Enabling Differences…
Antenna Installation Guide with Site Configuration

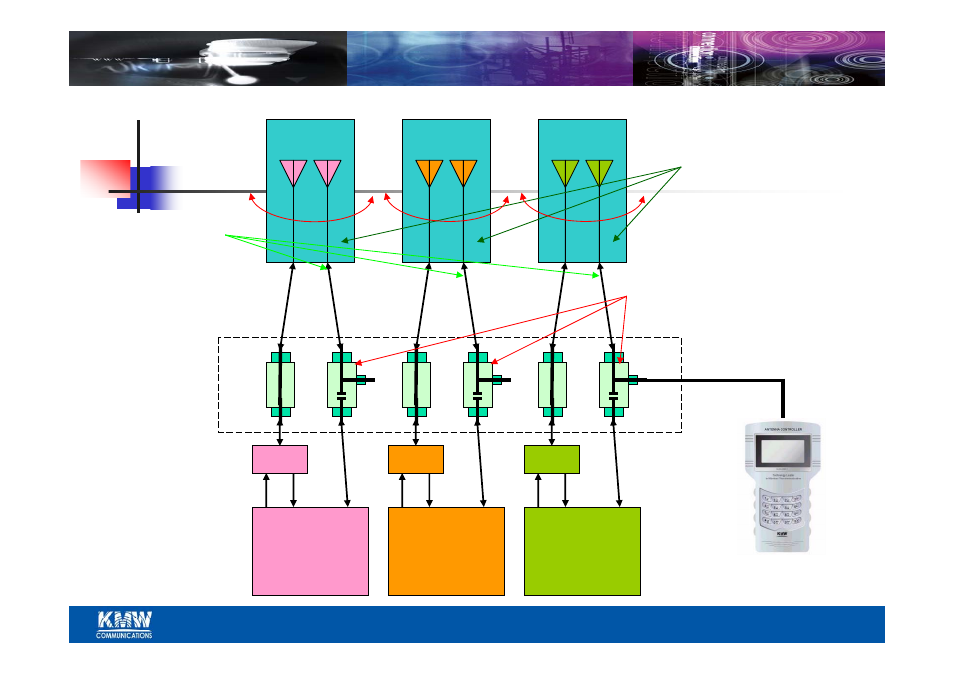

Near
Hatch Plate
Or
Inside BTS Cabinet
PCS BTS
Alpha
TX RX TX RX
Duplexer
PCS BTS
Gamma
TX RX TX RX
Duplexer
PCS BTS
Beta
TX RX TX RX
Duplexer
+45 °
Slant
-45°
Slant
+45 °
Slant
-45°
Slant
+45 °
Slant
-45°
Slant
Bias-Injector
w/ Lightning Arrestor
KMW Hybrid 2-way EDTA
Remote Adjustable
Antenna
w/ Built-in RCU
Control port
(Labeled as
CTRL
)
Portable Remote
Controller
(Controls One Sector at a time)
