HornBlasters HK-TW-540 - Manual (Page 8)

Compressor Load
(White)
+ -
30A Fuse
Fused Positive
Power Source (Red)
Toggle Switch
12G A
WG
12G A
WG (R
ed)
Trigger/Switch Positive
(Small Red)
Air Compressor
12V Battery
1/2”
Air Line
1/2”
A
ir Line
Hornblasters, Inc.
4532 W. Kennedy Blvd #233
Tampa, FL 33609-2042 Phone: +1 (813) 783-8058
Fax: +1 (813) 783-2407
email: [email protected]

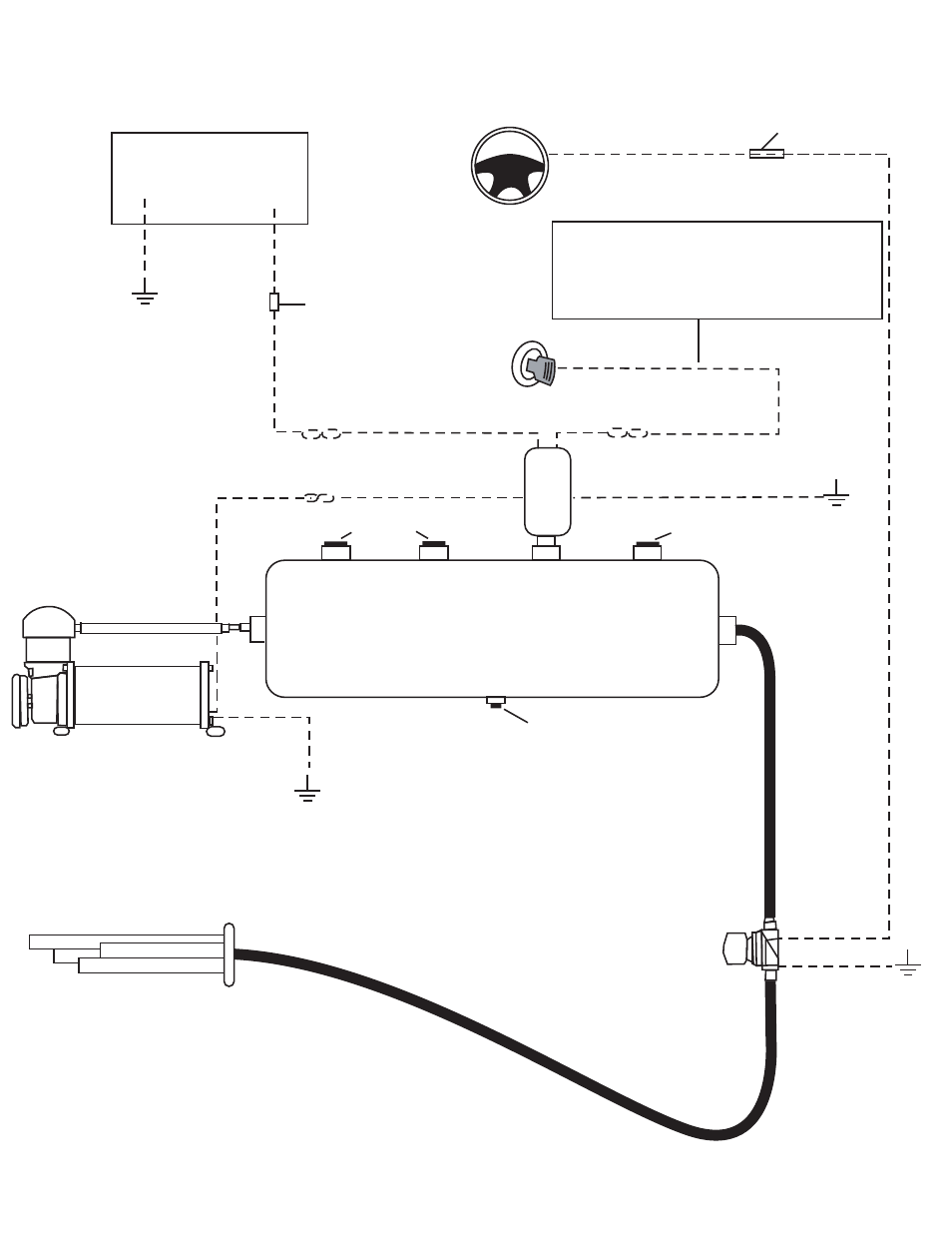

Train Whistle with Simple Air Source Diagram
Ignition Wire
Run this wire to an ignition wire (this is a wire that
is only powered when the key is turned to the on
position). This will insure that the air compressor
will not run when the car is turned off and drain
your batteries.
Drain Cock
Power
(Red or Black)
Ground (Black)
HORNBLASTERS.COM
AIR TANK
Pr
essur
e
Swit
ch
Ground (Black)
Ground (Black)
Port Plug Port Plug
