getting started
Step #1: Remove the seat and both wires (+ and -) from the battery.
Step #2: Remove the outer fairing/headlamp assembly. Refer to a service manual
if you need help with this. NOTE: A towel on the front fender can help
prevent scratches or “dings” from dropped tools or fasteners etc.
Expletives will also be kept to a minimum!
Step #: 3 Locate the main power harness and plug it into the matching connector
on the amplifier. Locate the 8 pin harness and plug it into “Audio Input”
on the side of the amp. If you are using this amplifier to power front
speakers (and tweeter pod if present) locate the 4 pin harness ending in
a black plug and plug it into the black 4 pin connector on the amp.
Make sure to plug this into the black plug and NOT the blue plug on the
8 pin input connector. NOTE: If using this amplifier to power Hogtunes
692.2/Lids 6x9”speaker lid kit, FL-7W 7” Fairing lower woofer kit or
speakers as part of Hogtunes Rear Speaker pod kit, the speaker wire
harness that comes in those kits will now plug into the 4 pin black plug
on the side of the amp.
Step #4a: Mounting the amp For Standards, Street Glide, EG Classic and Ultra Classic--
If this is the only amp in the system, the amplifier gets mounted to the top
of the factory radio using the supplied “hook and loop” adhesive and must
sit so you can read the badge on top of the
amplifier as in Diagram 1.1. The amplifier
needs to mount as far back on the radio as
possible so the fairing can go back on. The
minimum distance from the back of the radio
to the most forward edge of the amplifier is
5/8” (15mm). On 1998-2005 model bikes,
it is a tight fit--but will go. 2006-2013
(Advanced Audio) radios have a “bump” on
top of the radio that runs from front to back
down the center of the radio. Cut the
adhesive in half and apply one piece on
either side of this bump. The amp will then
mount flush. Most adhesives work best at
room temperature or higher. NOTE: 2006-
2013 Ultras have the CB module on top of
the radio. The amp will adhere on top of the
CB module so it is “half on/half off” this
module as shown in Diagram 1.2. The
supplied adhesive is plenty strong for this!
The amp can adhere on top of CB and XM modules without issue.

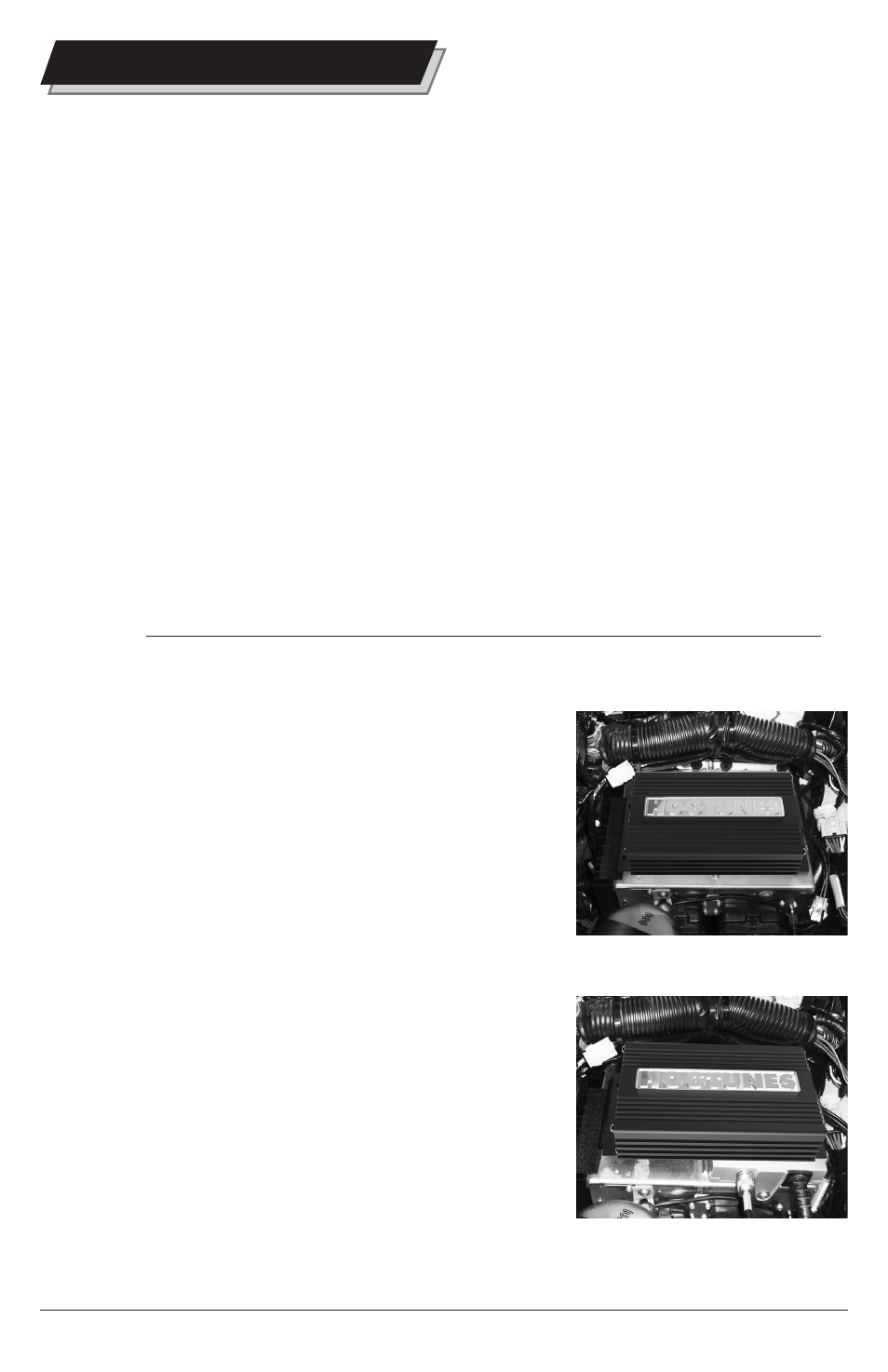

Diagram 1.1
No CB/XM Module Present
Diagram 1.2 - Shown
mounted on top of CB Module
