Light Engineered Displays System Accessories - Manual

Remote Alarm Indicator Abort Station
109 Portwatch Way Wilmington, N.C. 28412 Phone: (800) 251-2512 Fax: (800) 251-9878
Internet: www.ledinc.com Email: [email protected]
Graphic Annunciators * Water Leak Detection
Fireman’s Smoke Control Panels * ARA Systems
SYSTEM
ACCESSORIES
Part No.
RL-1
RL-2
RL-3 Description
LED
LED w/ resistor
Incandescant Part No.
AS-1 Description
Abort Station w/ one N.O. contact
Red spring-loaded mushroom pushbutton. Voltage
1-8 Volt Polarized
24 Volt Polarized
24 Volt Non-polar Current
10 Milliamp
20 Milliamp
40 Milliamp
Disconnect Switch Fire Fighter Telephone Jack
Part No.
DS-1 Description
Switch is SPST Maintained w/ screw terminals.
Mounted on single gang brushed SS plate.
Contacts rated for 5 amps, 115 VAC. Part No.
PJ-0
PJ-1
PJ-2 Description
Standard tip & ring - No auxillary contacts.
Standard tip & ring w/ 1 NO contact.
Standard tip & ring w/ 2 aux. contacts.

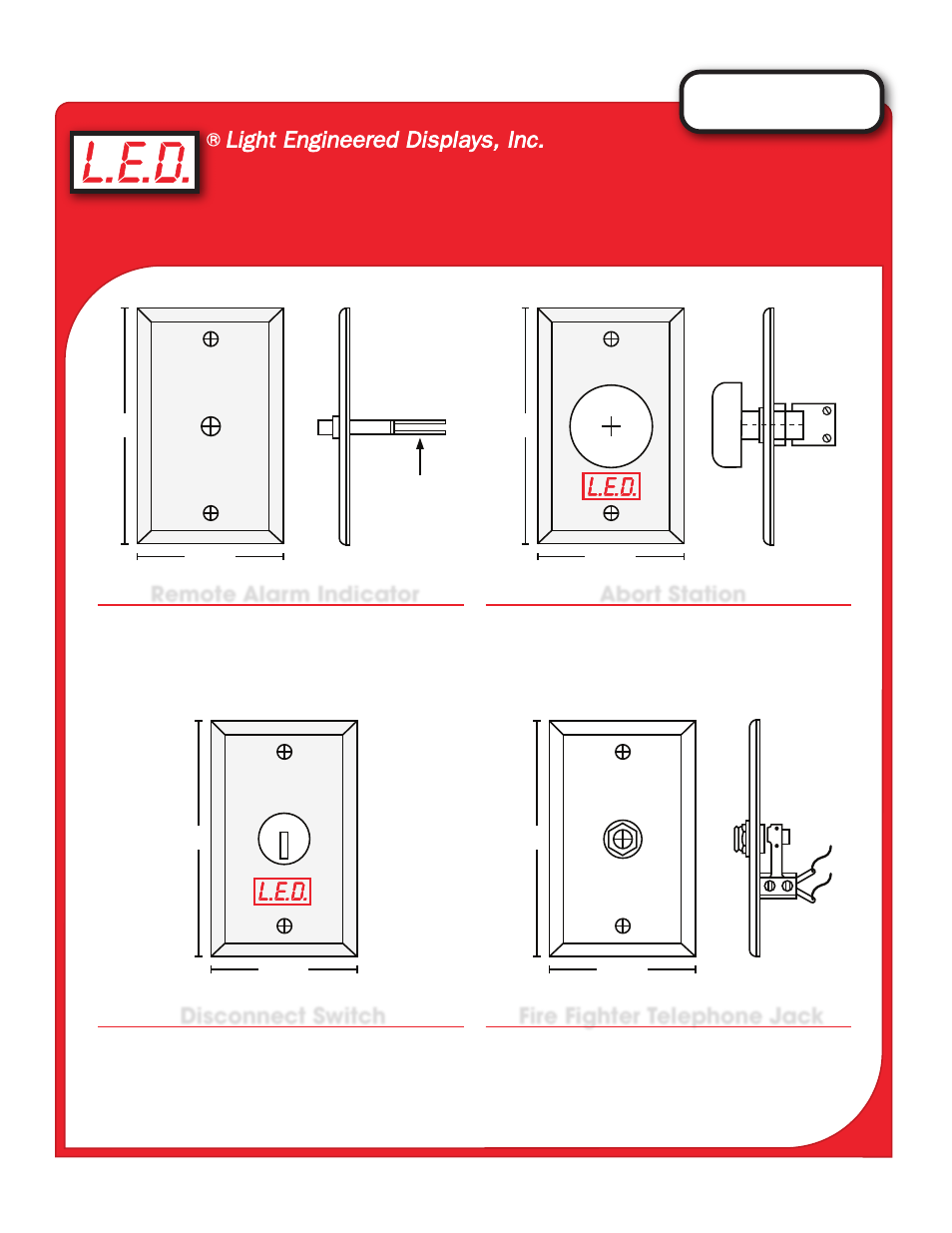

REMOTE
ALARM
SYSTEM
ABORT
2 3/4”
4 1/2”
6” Wire Leads
2 3/4”
4 1/2”
SERVICE DISCONNECT
NORM.
DISC.
2 3/4”
4 1/2”
FIRE
EMERGENCY
PHONE
2 3/4”
4 1/2”
Single Gang
Stainless Steel
Double 6” color-coded
wire leads to prevent
T-taps
NOTE: Custom wording and special features are available. Contact factory for details and minimum order requirements.
