6 602T, 602R - Using the Two-fiber Detachable Optical DVI System
The EDID LED flashes several times while reading the EDID. The LED turns
OFF after about eight seconds.
5. Disconnect the transmitter from the display.
The LED lights
6. Disconnect the 602T.
The EDID information is now stored and the Indication LED is on.

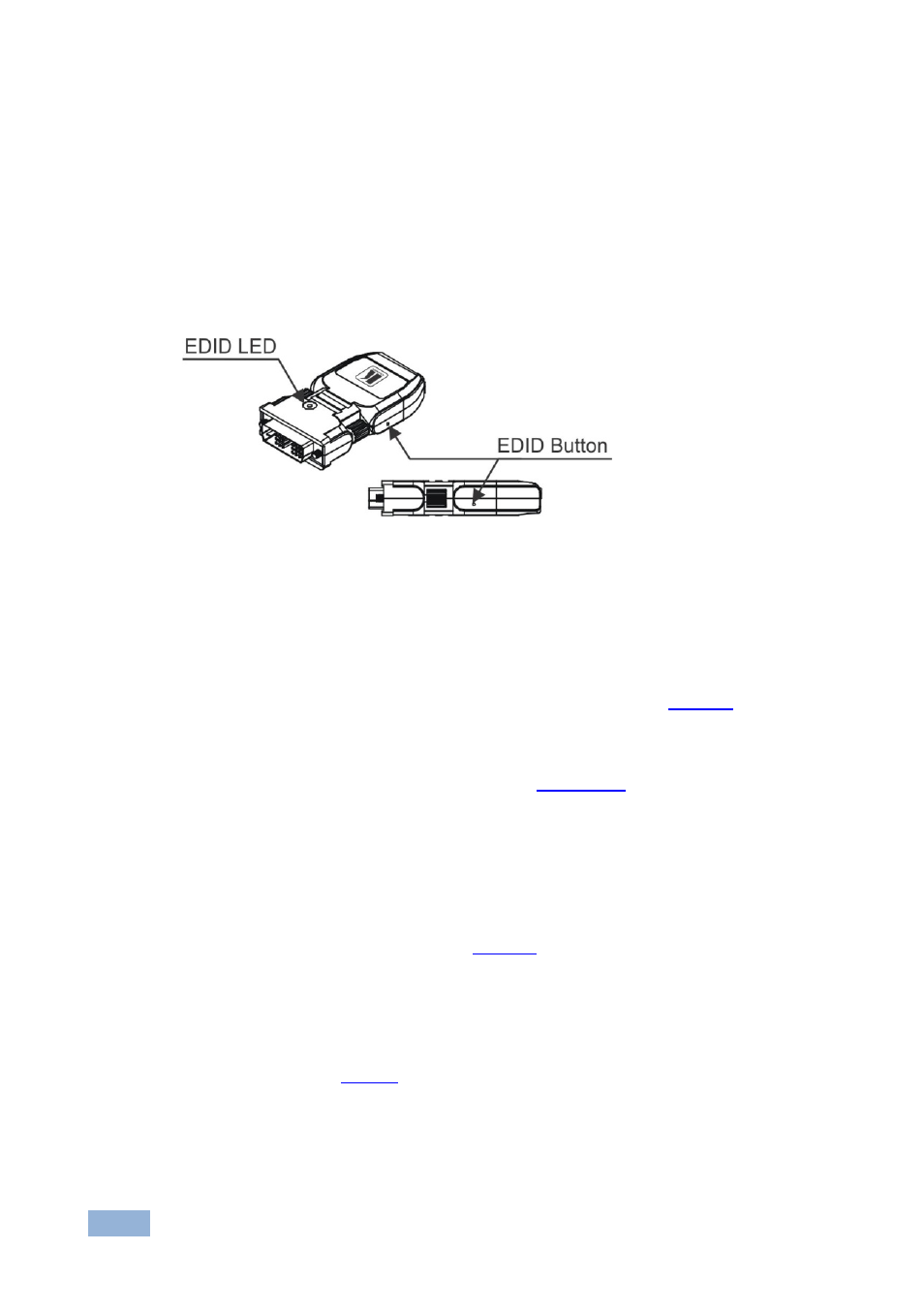

Figure 2: The Auto EDID Button on the 602T
4.2 Connecting the Detachable Optical DVI
Transmitter/Receiver
To connect the 602T Two-fiber Detachable Optical DVI Transmitter with the 602R
Two-fiber Detachable Optical DVI Receiver, as the example in Figure 4 illustrates,
do the following:
1. Set the EDID of the display device (see Section 4.1 ).
2. Connect the 602R to the 5V DC power adapter and connect the adapter to
the mains electricity. The blue LED lights.
3. Connect the duplex LC fiber cables to the 602T and 602R modules, one
cable at a time, as illustrated in Figure 3 .
Single-mode and multi-mode fiber are applicable up to 500 meters. For distances over
500 meters, use single-mode fibers.
4. Plug the 602T DVI connector directly to the DVI connector of the computer.
Do not use any intermediate cable or adapter between them, and connect cables 1 and
2 as indicated in
Figure 3
5. Connect the 602R DVI connector directly to the DVI connector of the display
device.
