6 PT-4iREX - Connecting the PT-4iREX
4 Connecting the PT-4iREX
Always switch off the power to each device before connecting it to your
PT-4iREX. After connecting your PT-4iREX, connect its power and
then switch on the power to each device.
To connect the PT-4 iREX IR Repeater, as illustrated in the example in Figure 3 ,
do the following:
1. Connect the OUT (up to four IR receivers) 3.5mm mini connector (from 1 to
4) to the following IR receivers via the IR emitter cable (see Figure 2 ):
Stick the IR emitter to the IR receiver window (usually located on the front panel of the
video player).
 OUT 1 to a DVD player
 OUT 2 to a video player
 OUT 3 to an amplifier
 OUT 4 to a plasma display
2. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.

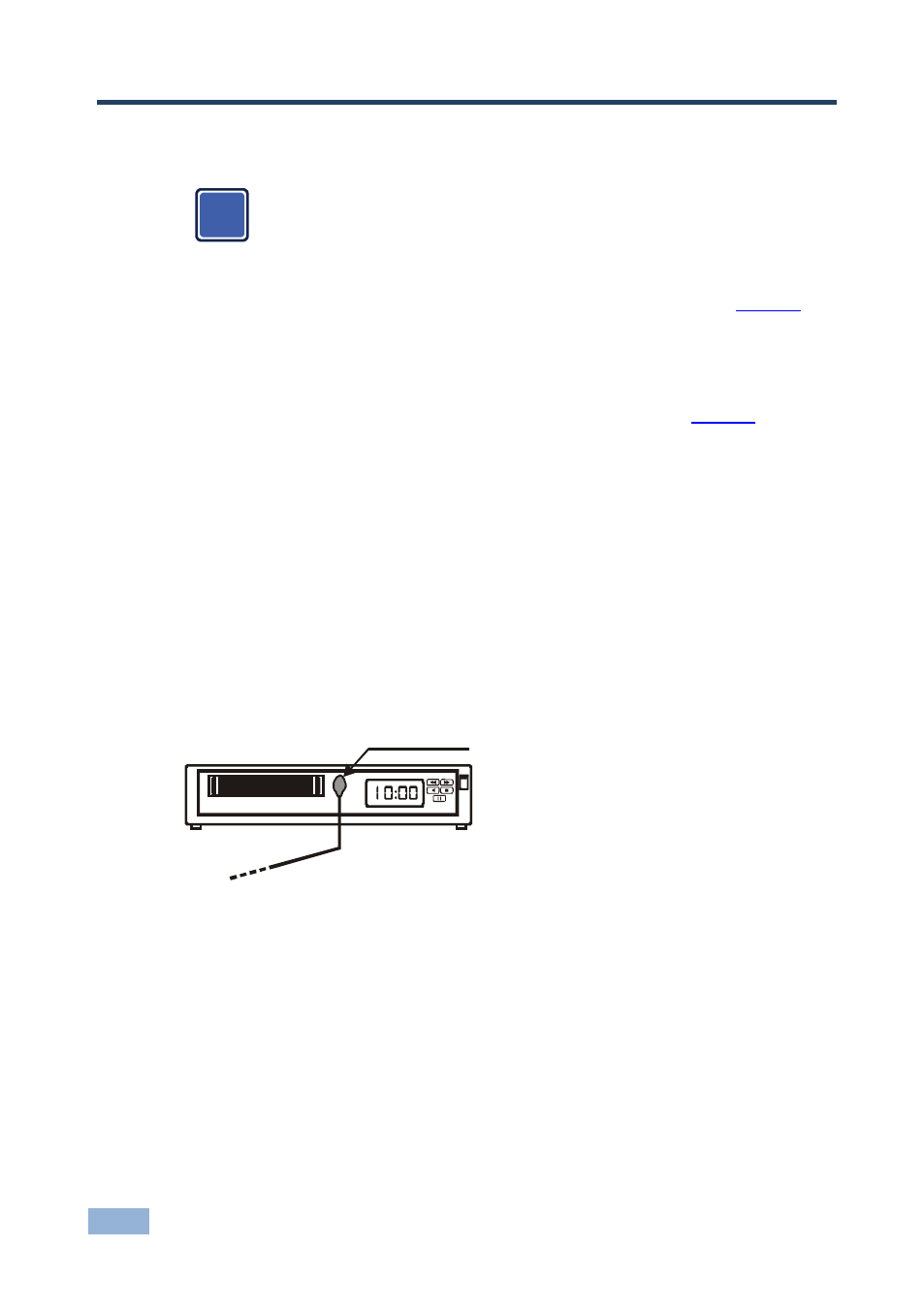

Figure 2: Connecting the IR Emitter
To operate any of the connected machines, use a remote control (the machine’s
original remote control or a universal remote control) pointed to the IR Repeater
(or the external IR remote receiver, model C-A35M/IRR-03) that is located at a
place of your convenience. The IR signal from the remote control is transmitted
from the
PT-4 iREX, via an IR emitter cable, to the appropriate machine.
i
IR Emitter
