Your VGA Distributor
2
With its video bandwidth of 350MHz, ensures transparent operation at the
highest resolutions
Achieving the best performance means:
Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your Kramer VP-3 in a
location free from moisture and away from excessive sunlight and dust
4 Your VGA Distributor

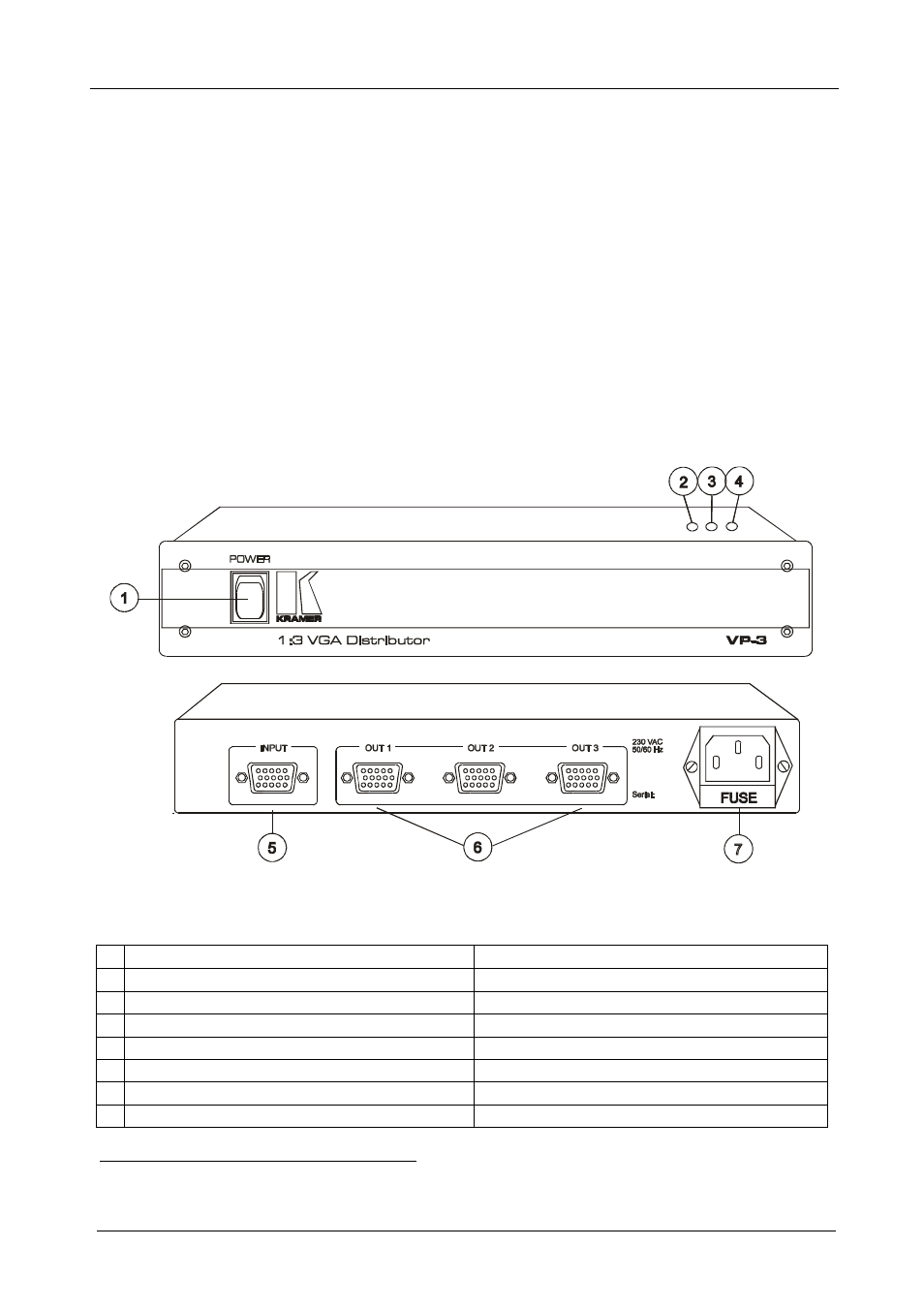

Figure 1 and Table 1 define the VP-3 1:3 VGA Distributor:
Figure 1: VP-3 1:3 VGA Distributor
Table 1: VP-3 1:3 VGA Distributor Features
# Feature Function
1 Power Switch Illuminated switch supplying power to the unit
2 Red Level Trimmer (accessible from the underside) Adjusts 1 the red level
3 Green Level Trimmer (accessible from the underside) Adjusts 1 the green level
4 Blue Level Trimmer (accessible from the underside) Adjusts 1 the blue level
5 INPUT HD15F Connector Connects to the VGA/XGA source
6 OUT HD15F Connectors Connect to the VGA/XGA acceptors (from 1 to 3)
7 Power Connector with FUSE AC connector enabling power supply to the unit
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the level
