Your VP-250 1:2 High Resolution UXGA DA
3
1 2 3
4 5
Top Side Panel
Lower Side Panel

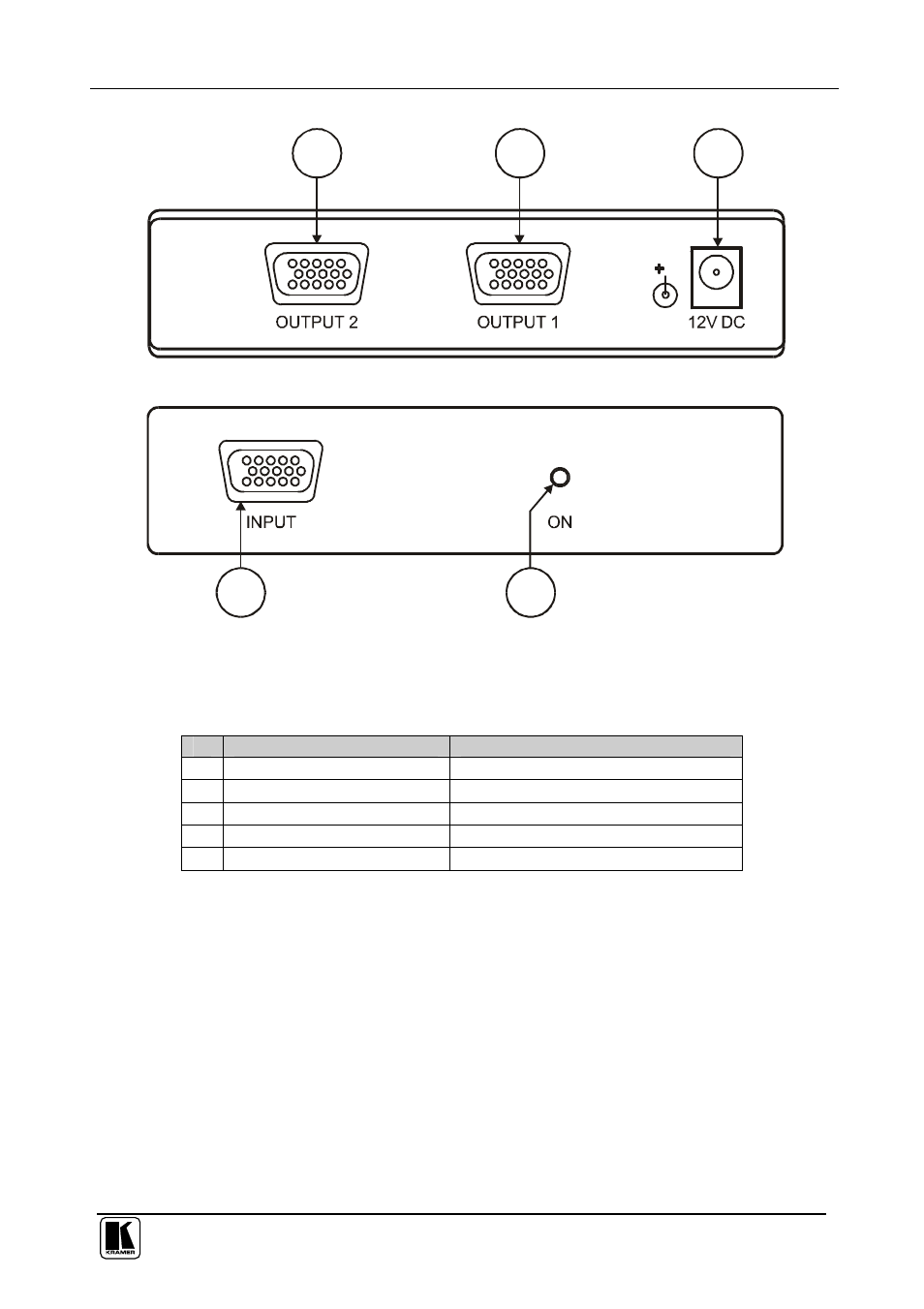

Figure 2: VP-250 1:2 High Resolution UXGA DA – Top and Lower Side Panels
Table 1: Features and Functions of the VP-250 1:2 High Resolution UXGA DA
# Feature Function
1 OUTPUT 2 HD15F Connector Connect to the UXGA acceptor 2
2 OUTPUT 1 HD15F Connector Connect to the UXGA acceptor 1
3 12V DC +12V DC connector for powering the unit
4 INPUT HD15F Connector Connect to the UXGA source
5 ON LED Illuminates when receiving power
Figure 3 and Table 2 define the switches on the underside of the VP-250:
