Page 7
4
VP-2K - Overview

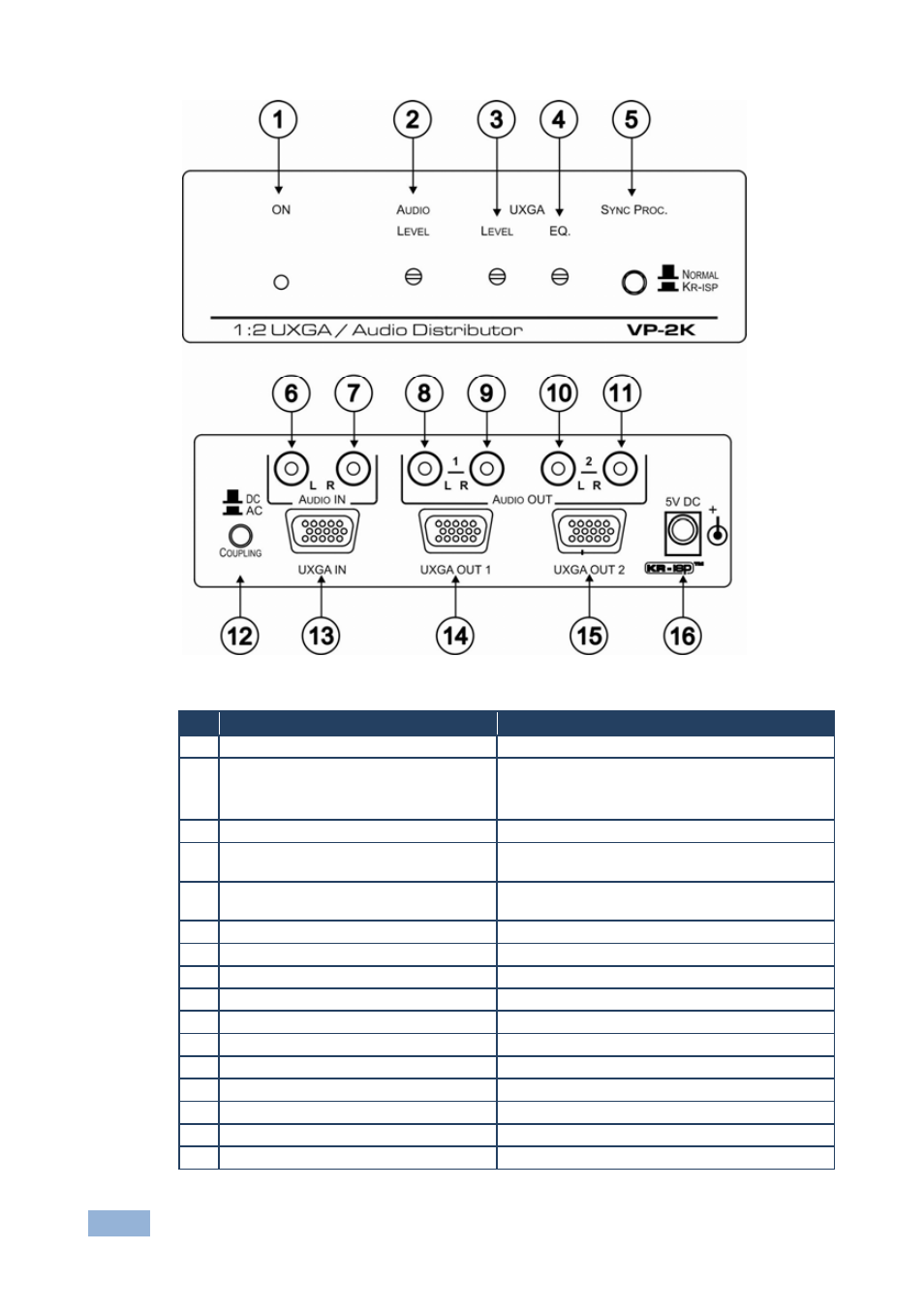

Figure 1: VP-2K 1:2 UXGA/Audio Distributor
#
Feature
Function
1
ON
LED
Illuminates when the unit is powered ON
2
AUDIO LEVEL
Control
Adjust the output audio level, if required
Rotate all level and EQ controls with a small
screwdriver
3
UXGA LEVEL
Control
Adjust the UXGA output level, if required
4
UXGA EQ.
Control
Adjust the EQ. (equalization) compensation level,
if required
5
SYNC PROC.
Button
Push in to KR-ISP (to activate the sync
processing); or release to NORMAL
6
AUDIO IN (L)
RCA Connector
Connect to the left audio source channel
7
AUDIO IN (R)
RCA Connector
Connect to the right audio source channel
8
AUDIO OUT 1 (L)
RCA Connector
Connect to the left audio acceptor 1 channel
9
AUDIO OUT 1 (R)
RCA Connector
Connect to the right audio acceptor 1 channel
10 AUDIO OUT 2 (L) RCA Connector
Connect to the left audio acceptor 2 channel
11 AUDIO OUT 2 (R) RCA Connector
Connect to the right audio acceptor 2 channel
12 COUPLING Pushbutton
Press in for AC coupling, out for DC coupling
13 UXGA IN 15-pin HD (F) Connector
Connect to the UXGA source
14 UXGA OUT 1 15-pin HD (F) Connector
Connect to the UXGA acceptor 1
15 UXGA OUT 2 15-pin HD (F) Connector
Connect to the UXGA acceptor 2
16 5V DC
+5V DC connector for powering the unit
