6 VM-51 - Connecting the VM-51
4 Connecting the VM-51
Always switch off the power to each device before connecting it to your
VM-51. After connecting your VM-51, connect its power and then
switch on the power to each device.
To connect the VM-51 as illustrated in the example in Figure 2 :
1. Connect a composite video source (for example, a CV player) to the video
INPUT BNC connector.
2. Connect up to 5 video output BNC connectors to the appropriate video
acceptors (for example, CV displays).
Not all outputs need to be connected.
3. Connect the power adapter to the power socket and connect the adapter to
the mains electricity.
4. Adjust, if required, the output signal level (Gain) and/or the equalization level
(EQ.).

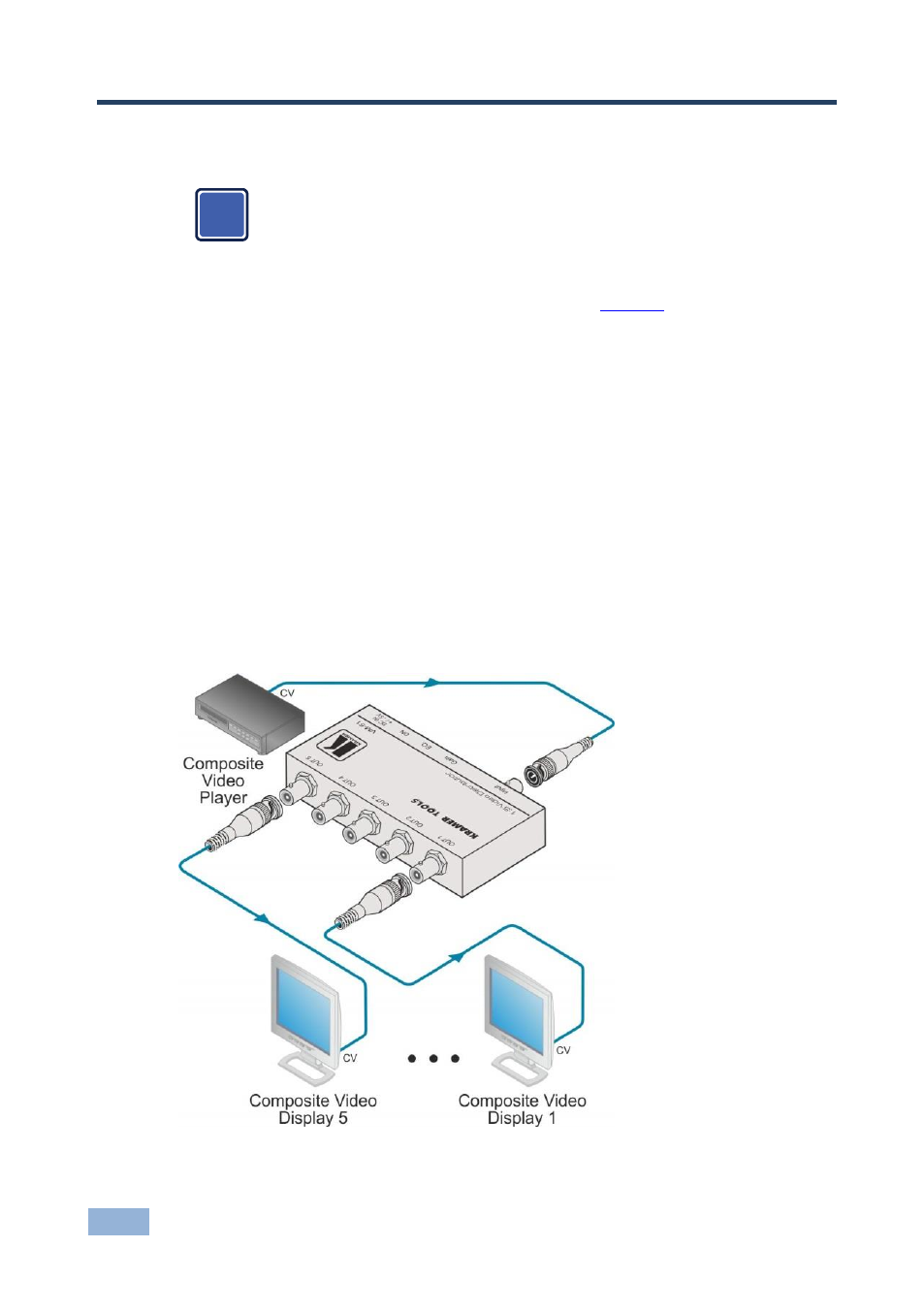

Figure 2: Connecting the VM-51 1:5 Video Distributor
