Connecting Your Balanced Stereo Audio Distributor
7
6.1 Connecting a 1:20 Mono DA
To configure a 1:20 mono DA, as illustrated in Figure 2, do the following:
1. Connect a source (for example, an audio player 1 ) to LEFT INPUT A and
RIGHT INPUT A.
2. Connect up to 20 mono audio acceptors (for example, mono audio
recorders) to any of the OUTPUT connectors.
3. Release the LEFT and RIGHT selector buttons 1:10/2x1:5 to select 1:10.
4. Connect the power cord to the electricity supply.
5. Switch on the
VM-1120.
The audio input(s) is/are distributed to the audio outputs.

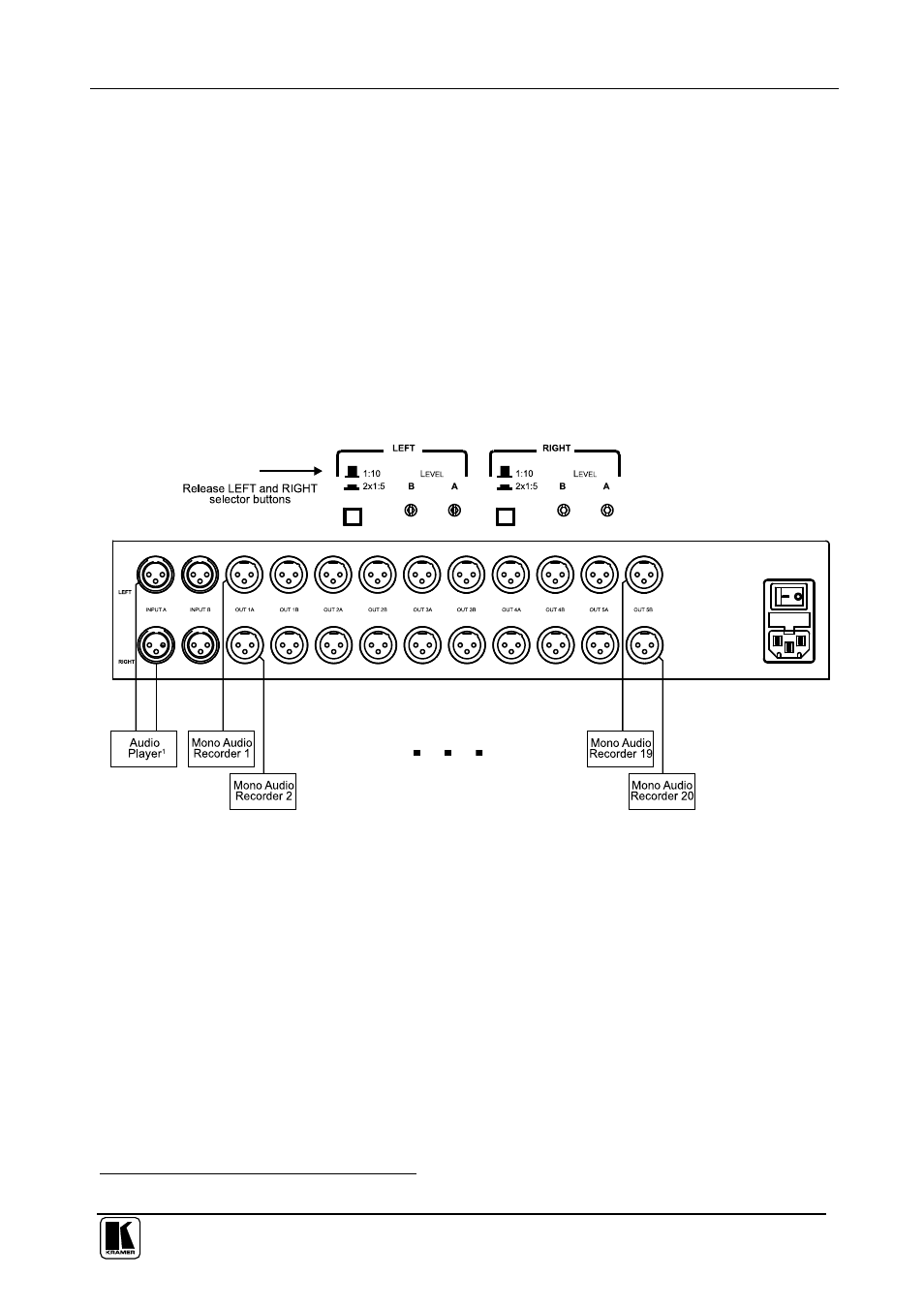

Figure 2: 1:20 Mono DA Configuration
1 With 2 identical outputs, or via a 1:2 splitter
