6505 - Overview
3
3
Overview
The 6505 is a high
−performance distribution amplifier for S/PDIF digital audio
signals. The unit takes one S/PDIF input and distributes the signal to five identical
S/PDIF outputs.
The 6505 features:
•
Compatibility with EIAJ CP1201, IEC-60958, AES3id and S/PDIF standards
•
A sample frequency range of 32kHz to 96kHz
•
Equalization and reclocking of incoming data for low jitter recovery of the
digital audio data stream
•
5V DC power and is housed in a DigiTOOLS® enclosure
3.1
Defining the 6505 1:5 S/PDIF Distributor
This section defines the 6505.

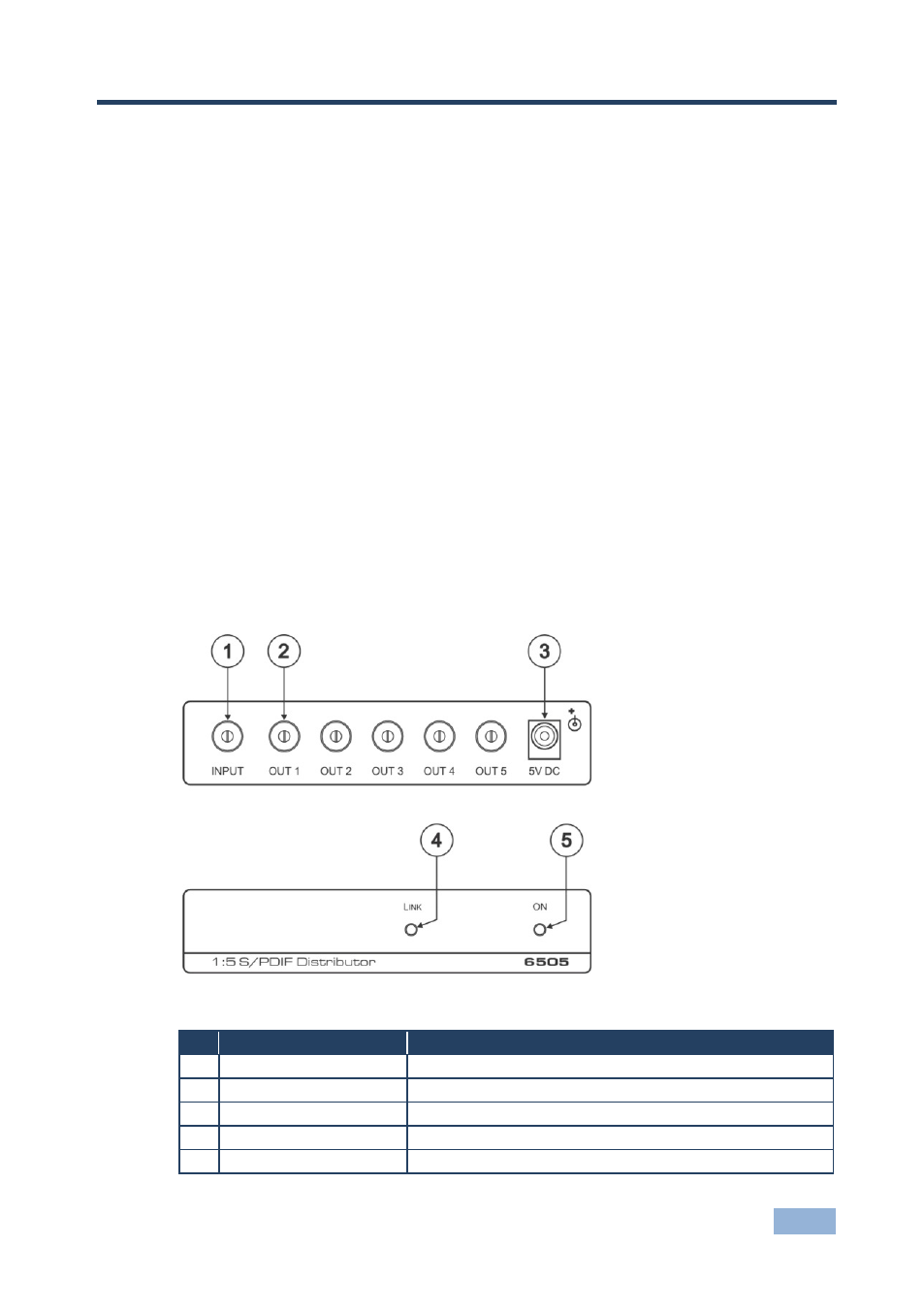

Figure 1: 6505 1:5 S/PDIF Distributor
#
Feature
Function
1
INPUT RCA Connector
Connects to the S/PDIF digital audio source
2
OUT RCA Connectors
Connect to the S/PDIF digital audio acceptor (from 1 to 5)
3
5VDC
+5V DC connector for powering the unit
4
LINK LED
Illuminates when receiving the appropriate input signal
5
ON LED
Illuminates when receiving power
