104LN - Overview 5
3.1 Defining the 104LN 1:4 Differential Video Line Amplifier
This section defines the 104LN.

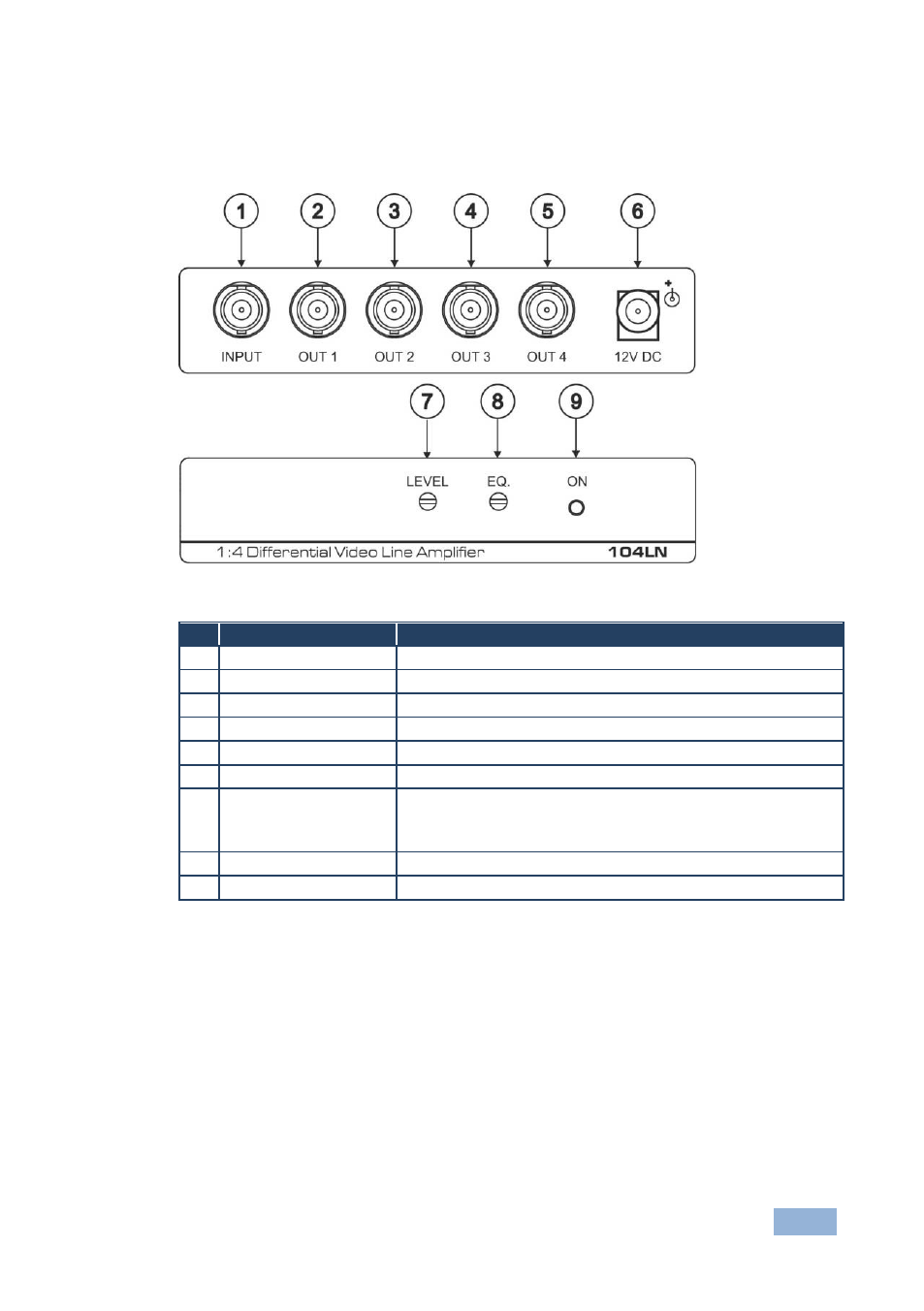

Figure 1: 104LN 1:4 Differential Video Line Amplifier
# Feature Function
1 INPUT BNC Connector Connects to the composite video source
2 OUT 1 BNC Connector Connects to composite video acceptor 1
3 OUT 2 BNC Connector Connects to composite video acceptor 2
4 OUT 3 BNC Connector Connects to composite video acceptor 3
5 OUT 4 BNC Connector Connects to composite video acceptor 4
6 12V DC +12V DC connector for powering the unit
7 LEVEL Trimmer Adjusts the output signal level for outputs 1, 2, 3 and 4
Insert a screwdriver into the hole and carefully rotate it, to trim the
level
8 EQ. Trimmer Adjusts the cable compensation equalization level
9 ON LED Illuminates when receiving power
