Installation Directions
If the SMART Pac III is being used with ASSA ABLOY electrified products check
to make sure the electrified product or products do not have a current rating
exceeding 750 mA at 25 degrees C. Remove the SMART Pac III molex

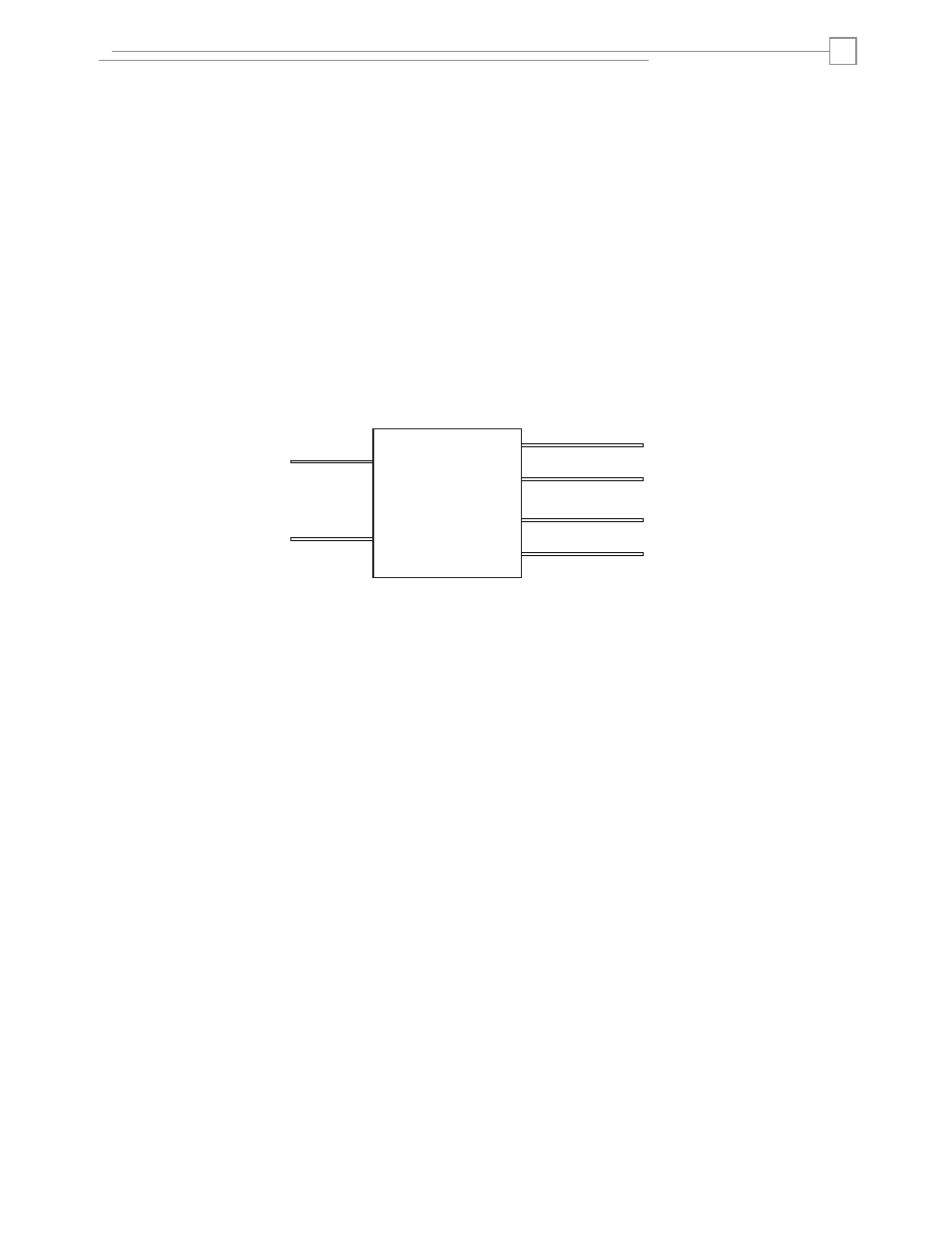

connectors and connect wires as illustrated in the diagram below.
Note: After modifying, please cap the Black and Violet wires independently to
prevent electrical shorting within the frame. Also, verify device is within the
current limitations specified on page 2.
(+ VDC)
(- NEG)
(+ VDC OR VAC)
(- NEG)
Input
RED
RED/GREEN
If Connectors are Removed
RED
BLACK
(NOT USED)
(NOT USED)
BLACK
VIOLET
SMART Pac III
Output
