Graymills DH536r-A Drum Mount - Manual (Page 6)

795-92152
07/16/08
Graymills Corporation – 3705 N. Lincoln Ave. / Chicago, IL 60613 – Phone: 773.477.4100 Fax: 773.477.8673 – www.graymills.com

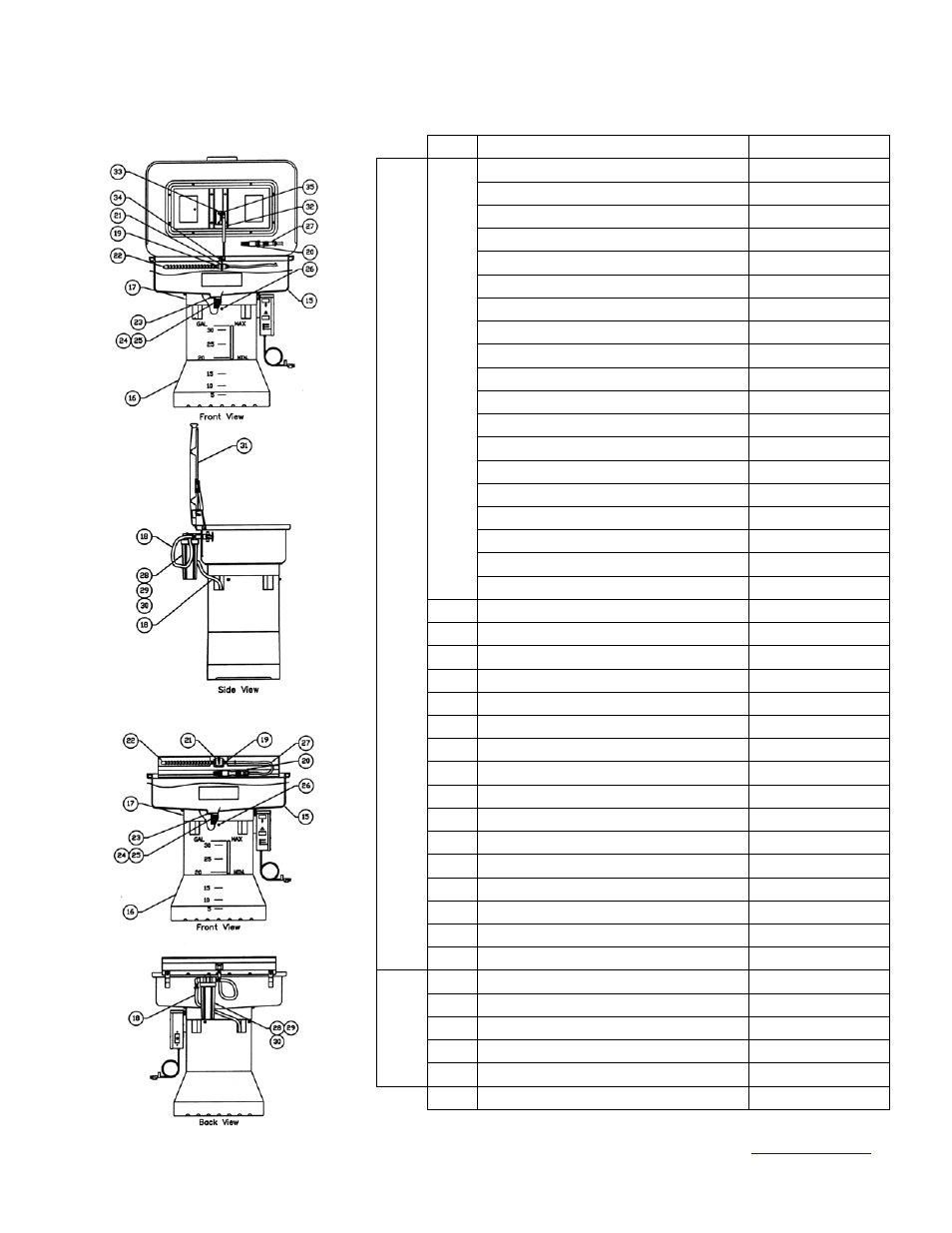

DRAWINGS AND PARTS LISTS
DH436R-A
DH536R-A
REF DESCRIPTION PART NO.
Complete Electrical Control Ass’y 457-40313
Toggle Switch (Pump) 770-09192
Toggle Switch (Reset) 770-92011
Toggle Switch Boot 770-08481
Indicator Light – Green 772-92079
Indicator Light – Amber 772-92078
Indicator Light – Red 772-92080
GFCI – 115V 777-09499
Float Switch 770-90167
Heater 780-90166
Pump 390-09663
Tube Bulkhead Compression Fitting 735-91249
¼” Air Tubing 729-90678
8’ Power Cord and Plug 777-04152
Relay 782-92066
Relay Socket 782-92126
Rubber Condensation Guard 744-37878
Polyurethane Foam Filter 742-90883
Electrical C
ontr
o
l Assemb
ly C
o
mpo
nents (N
ot Shown)
3/8” Trim Bulb 603-37983
15 Tank 727-37995-GRAY
16 Drum 727-37883-GRAY
17 Ring 727-37995R-GRAY
18 Black Neoprene Hose 729-90327
19 Lockline Adapter 728-90796
20 Gripper Clip 769-90170
21 3-Way Fluid Valve 738-90795
22 Flex Hose and Nozzle Assembly 728-90951
23 Strainer 715-26971-81
24 Vapor Barrier 742-90144
25 Filter Cup 742-34222-81
26 Ring Mounting Thumb Screws 753-04325-81
27 Flow-Thru Brush with Hose 749-09925
28 Filter Housing 742-90186
29 Filter Cartridge BIOFL1
Items co
mmo
n
to
b
o
th
th
e
DH43
6
R-A
an
d
th
e DH536R
-A
30 Filter O-Ring 744-90187
31 Lid 727-34157-GRAY
32 Gas Spring Assembly 765-09361
33 Fuse Link Assembly Bracket 432-34800-81
34 Linkage Bracket 435-39511-81
DH43
6
R-A
Only
35 Fuse Link Assembly 451-23482
N/A DH536R-A Backsplash Assembly 402-38092
– 6
