Setup & Operation:
1. Connect the heater / heating mantle to the load receptacle (located on the rear of the unit) for desired channel(s).
2. Plug the power cord of the Power Controller into an electrical outlet.
3. Turn the ON/OFF switch to its ON position. In the ON position, the switch will be illuminated.
4. Select either the 30 VAC or 60 VAC output.
5. Turn the control knob to your desired power setting.
6. When the knob is pointed at 100%, full power will be applied to the load. (Refer to Table 1)
NOTE: Do Not Exceed Wattage & Voltage Requirements of
Heating Mantle

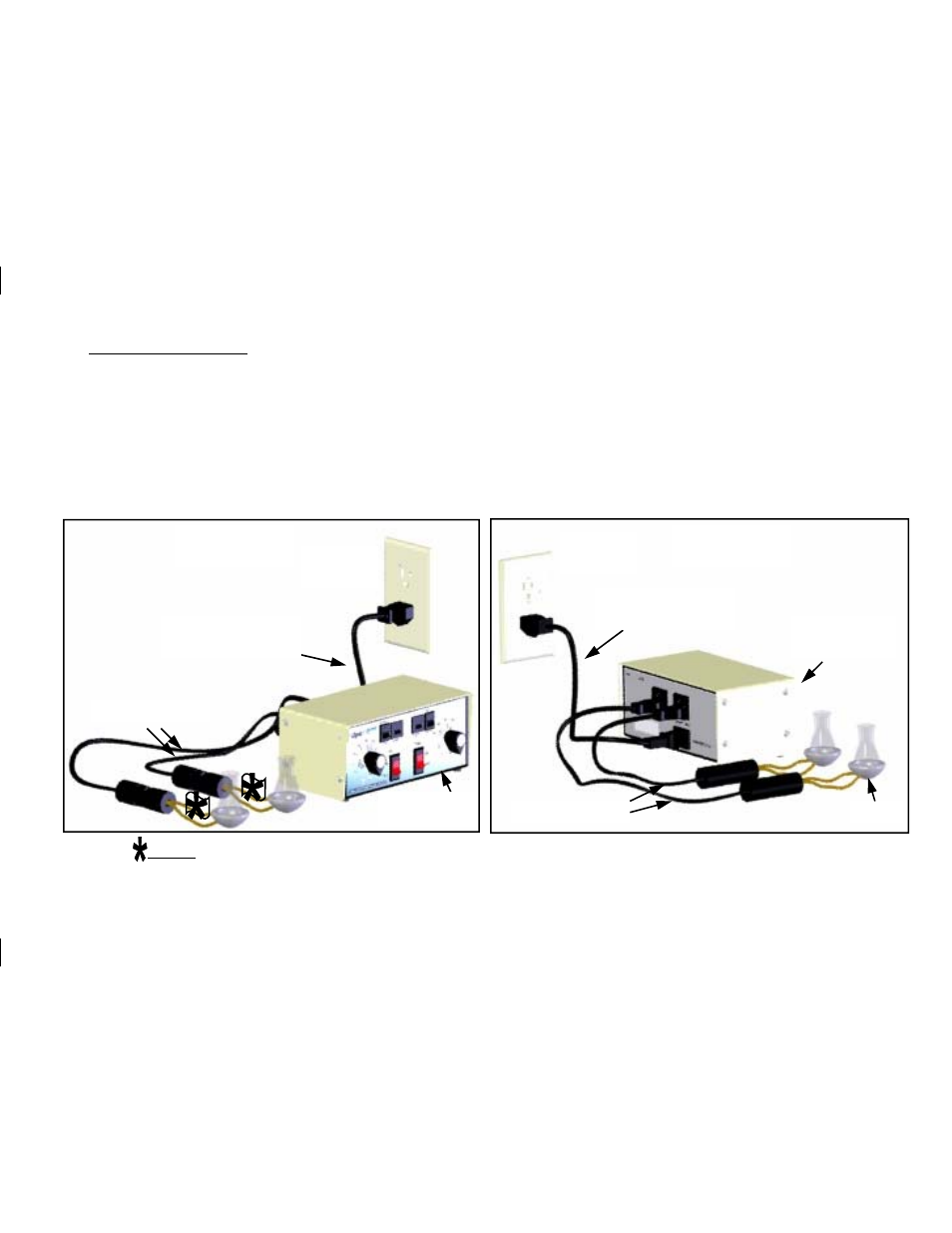

REAR VIEW FRONT VIEW
Mantle
120VAC
Receptacle
30/60VAC Controller
Power Cord
Mantle power cords
30/60VAC Power
Controller
120VAC
Receptacle
30/60VAC Controller
Power Cord
Mantle power cords
30/60VAC Power
Controller
