unD32 BoB
User Manual
 Attero Tech LLC 2013 Page 12 614-00012-01
4 – Configuration using a GUI
There are two parts of the device that can be configured using a GUI: audio routing and device specific parameters such
as mater volume, master mute and channel volumes and mutes.
The audio routing can be carried out using Audinate’s Dante Controller. This application is obtained from the Audinate
website (
www.Audiante.com ). Instructions on how to use this software and about setting up routes on a Dante network
can also be found on their website.
*Note:
When using Dante controller, the unD32 will be shown using a default device name of unD32-###### where
‘######’ is the last six characters of the devices MAC address.
Configuration of the unD32 specific features is carried out using the Attero Tech unIFY unD32 Control Panel
application. This application is available from the Attero Tech website (http://www.atterotech.com/). It should be used
to examine and modify the device specific features such as channel volume and mute settings and master volume and
master mute.
4.1 – Application Pre-Requisites
The unD32 Control Panel application requires several pre-requisites. The hardware pre-requisites are shown below:
o PC running Windows XP or later
o Must be fitted with a wired Ethernet adapter
There are also several software support applications that need to be installed on the PC. These are shown below:
• Dante Controller Version 3.4.0 or later (for audio routing)
o Download the latest version from the Audinate website ( http://www.audinate.com ).
o Run the installation following the instructions provided
• Bonjour (for device discovery)
o Download the latest version from the Apple website ( http://support.apple.com/kb/dl999 )
o Run the installation following the instructions provided
4.2 – Installation of unD32 Control Panel
To install the Attero Tech unIFY unD32 Control Panel application, download the latest version from Attero Tech's
website (
www.atterotech.com ).

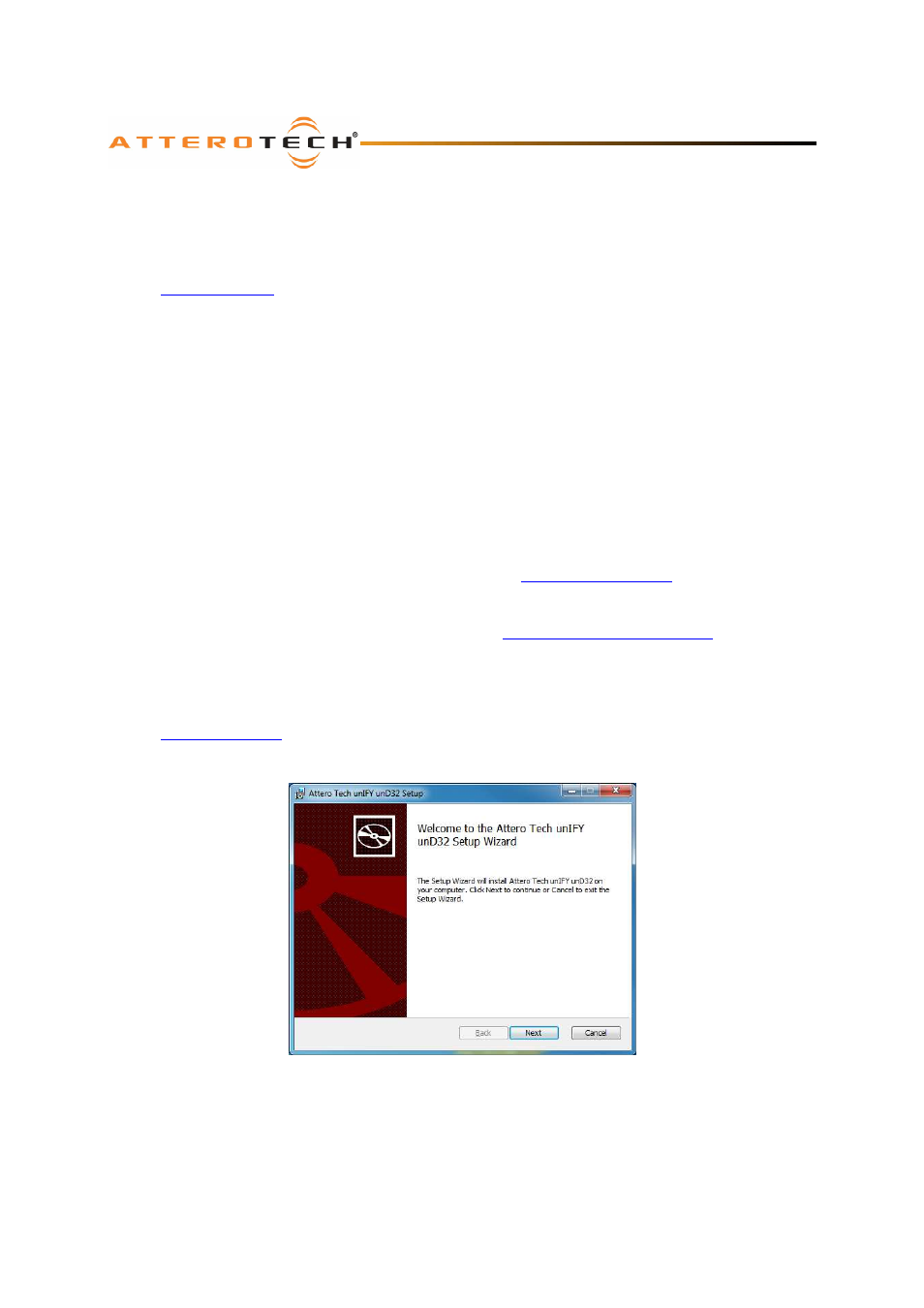

Run the installer by double-clicking the “unIFY-D32.msi” file.
Click the “Next button to proceed
