3. Installation
Please make sure you have the following before proceeding:
• RMS Technologies USB485 converter.
• Standard USB Type A to B cable.
• RMS Technologies Manuals and Software CD.
Installing the Unit:
The USB485 Converter card will install two sets of drivers. One set is for the unit itself, and the
second set is for the Virtual Communications Port (VCP).
1. Power up the PC and start up
Windows.
2. Connect the USB485 converter card
to the PC with a USB cable.

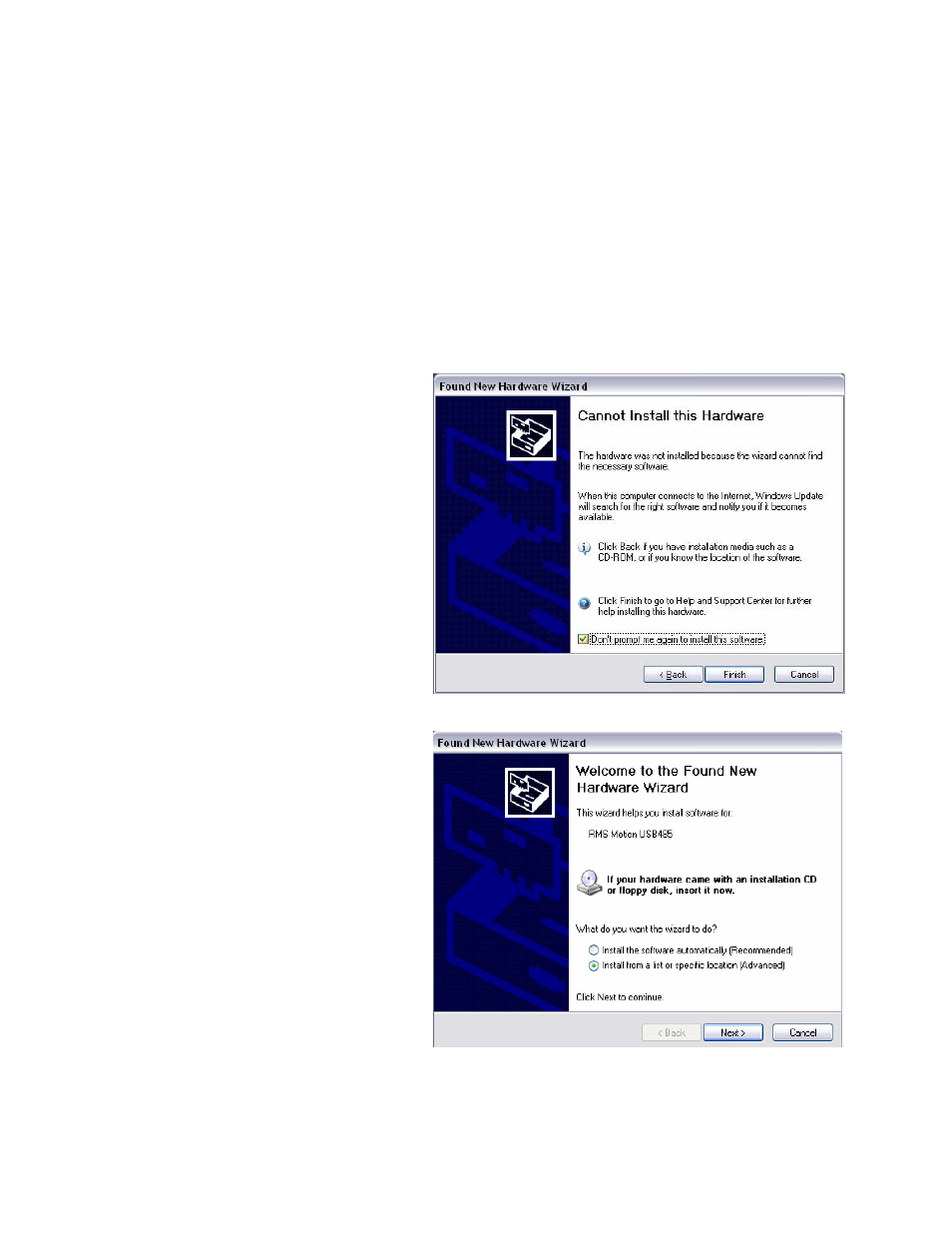

3. Windows will detect a new device
“RMS Motion Serial Converter”
4. A window may appear with the text
“Cannot Install this Hardware.”
Simply click on the “Back” button.
5. A window will prompt you for
drivers:
6. Choose “Install from a list or
specific location (Advanced)” and
click “Next.”
