3 Connection Specifications
This card is used with several products (see section 7). Below is a general
diagram of how to connect the RS485-232 converter card to a PC and an RS485
communicating device.

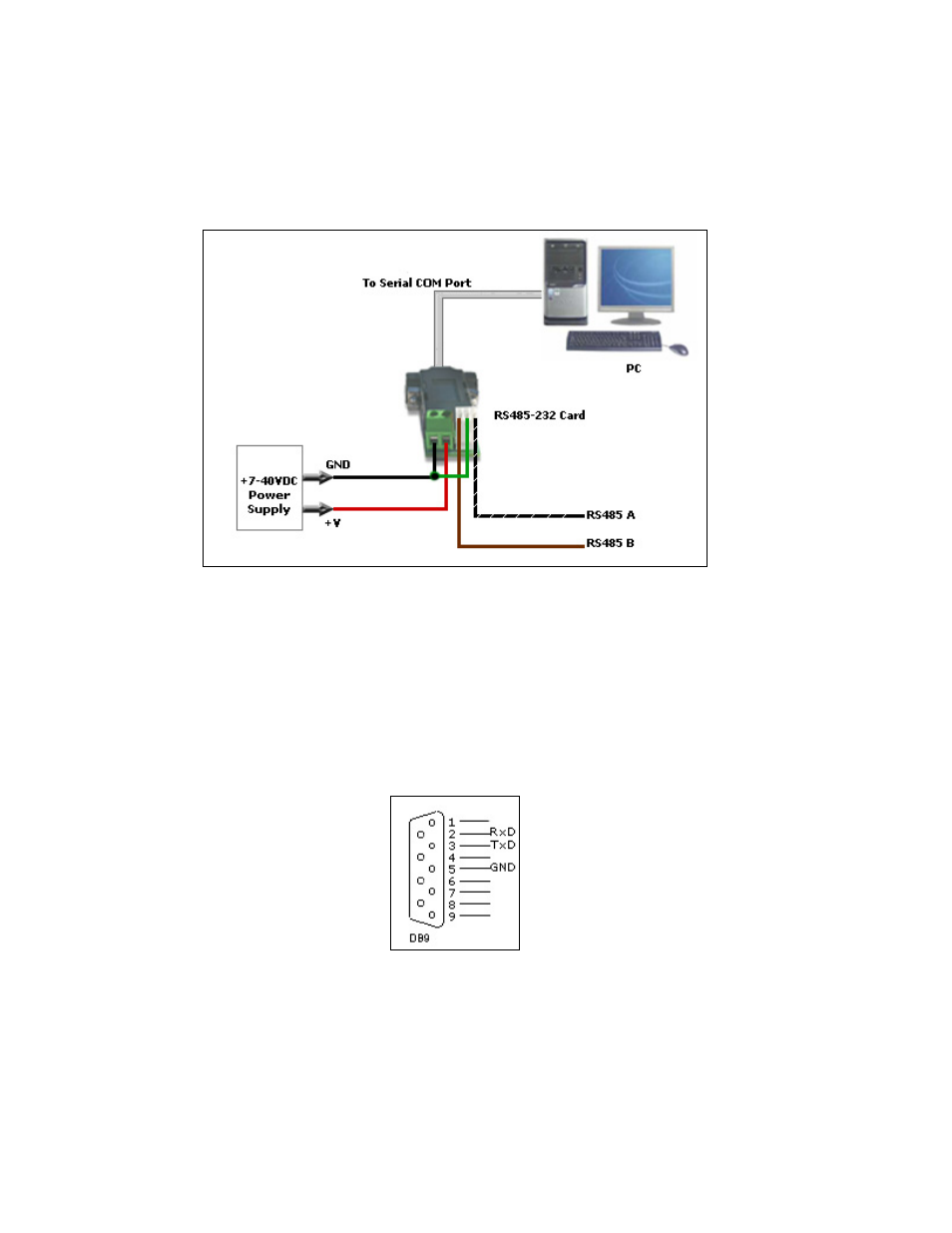

Figure 2:General connections diagram
For specific connection specifications with the IMC/IMCE17, IMC/IMCE23, R256,
or R356, please see the specific product manual.
Serial COM Port
The DB9 side of the RS485-232 Converter card is a female DB9 and pinouts are
standard to all PC serial COM Ports (Pin 2: RxD, Pin 3: TxD, Pin 5: GND):
Figure 3: DB9 pinouts
