Air supply connection
• This tool should be connected to a clean, dry air supply with inline oiler
and water separator
• Do not allow supply pressure to exceed the maximum stated (see
‘Specifications’)
• Ensure that water is drained from air system daily
• Ensure that all parts of the system (hoses, couplers, etc.) are correctly
rated for the air pressure to be used
Setting tool power
• The tool speed/power can be adjusted by decreasing/increasing the air
supply pressure within the range specified in ‘Specifications’.
Fitting and removing drill bits and accessories
WARNING: Always disconnect the tool from the air supply before fitting or
removing drill bits or other accessories.
WARNING: NEVER run the drill while tightening the chuck or changing the
direction.
WARNING: Never install accessories with a maximum speed rating below
the no load speed of this tool.
1. Open the chuck by rotating the chuck collar anticlockwise
2. Insert the required drill bit or accessory
3. Close the chuck by rotating it clockwise. Tighten by hand
Note: Ensure the drill bit or accessory runs centrally and repeat above steps
to correct the position of the bit in the chuck if necessary.
Forward/reverse function
• For clockwise rotation (‘forward’) tilt the Forward/Reverse Lever (5) into
the position labelled ‘F’
• For anticlockwise rotation (‘reverse’) tilt the forward/reverse lever into the
position labelled ‘R’
WARNING: DO NOT operate the tool with the forward/reverse lever in a
position between ‘F’ or ‘R’, as this may damage the internal mechanisms.
Operation
1. Select direction using the Forward/Reverse lever (5)
2. Hold the tool firmly by the Handle (2)
3. Press the Trigger (6) to operate the drill. Release the trigger to stop the
machine.
Note: The air exhaust is located at the bottom of the handle. During
operation, air will escape directly next to the air inlet connection.
WARNING: Be aware that air tools may hold residual pressure after use.
Always bleed air pressure from the tool after shutting off air supply.
Accessories
• Accessories for this tool, including drill and countersink bits, wire cup brushes
and more, are available from your Silverline stockist. Spare parts can be
obtained from your Silverline dealer or
www.toolsparesonline.com
www.silverlinetools.com
7
793759 Air Drill Reversible

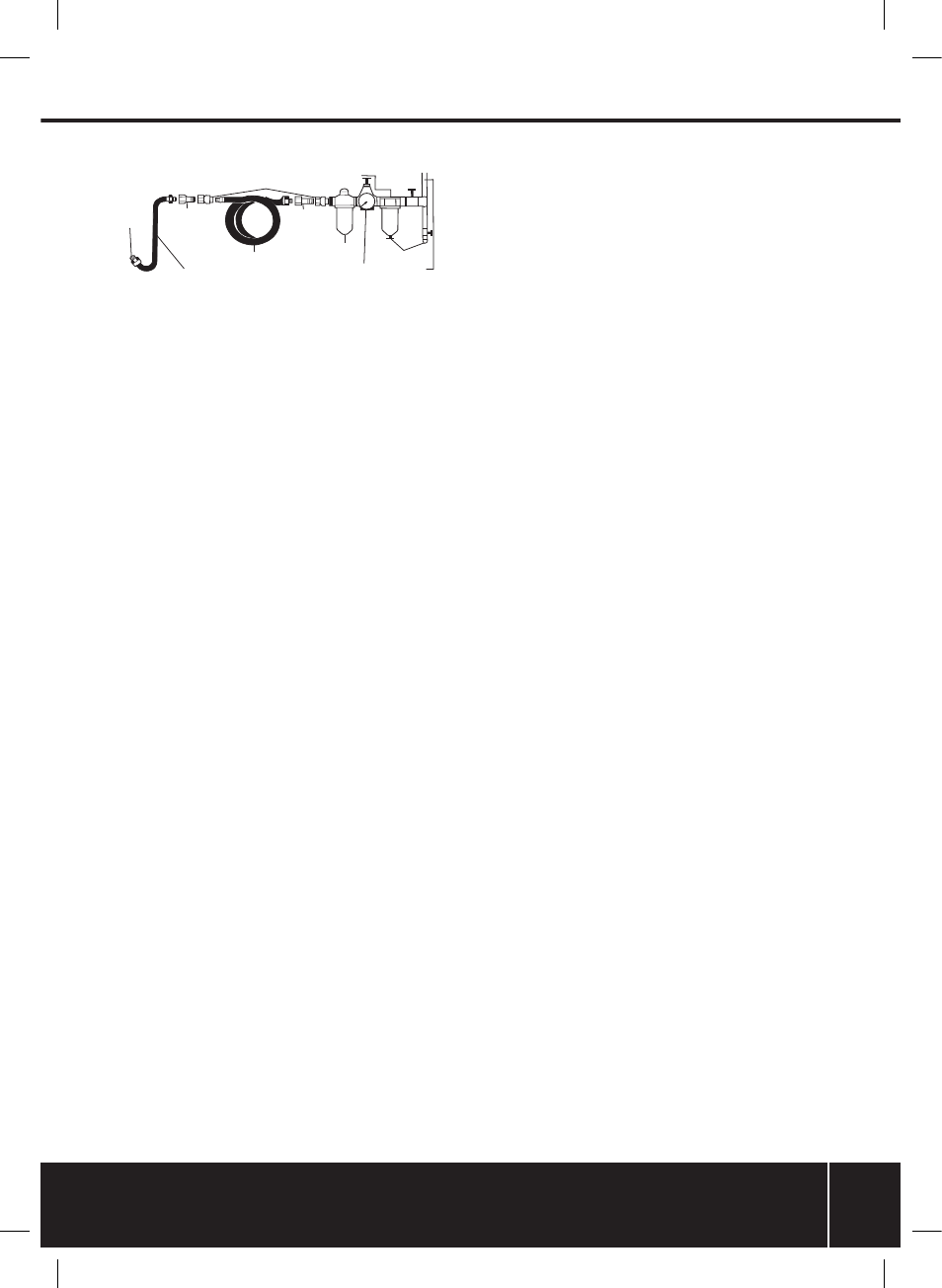

TO YOUR
AIR TOOL
LEADER HOSE
NIPPLE
QUICK COUPLER
WATER SEPARATION
OILER
NIPPLE
REGULATOR
DRAIN DAILY
AIR SUPPLY
RECOIL HOSE
Maintenance
WARNING: Always disconnect from the air supply and depressurise before
cleaning or carrying out any maintenance.
Cleaning
• Keep your tool clean at all times. Dirt and dust will cause internal parts
to wear quickly, and shorten the machine’s service life. Clean the body of
your machine with a soft brush, or dry cloth
IMPORTANT: There is very little that can go wrong with your air tool and it
should be noted that when an air tool fails to work it is generally because
the internal workings have corroded due to dirty, wet air and failure to
follow the instructions given below.
Daily maintenance procedure: Disconnect from the air supply, pour the
equivalent of a tablespoon of oil into the air intake. Operate the machine at
low speed to thoroughly lubricate all internal workings.
• If the machine is in constant use or used for long periods at a time, a
combined filter/lubricator must be fitted. There must be an air filter fitted
at all times
• Use air tool oil. DO NOT UNDER ANY CIRCUMSTANCES USE NORMAL
ENGINE OIL
• Failure to comply with the operating and maintenance instructions may
invalidate the guarantee
Storage
• Store this tool carefully in a secure, dry place out of the reach of children
Disposal
• As with other power tools, air tools should not be disposed of with
household waste
• Air tools may contain traces of tool oil and other lubricants and so must
be recycled accordingly
• Contact your local waste disposal authority for information on the correct
way to dispose of power tools
