27

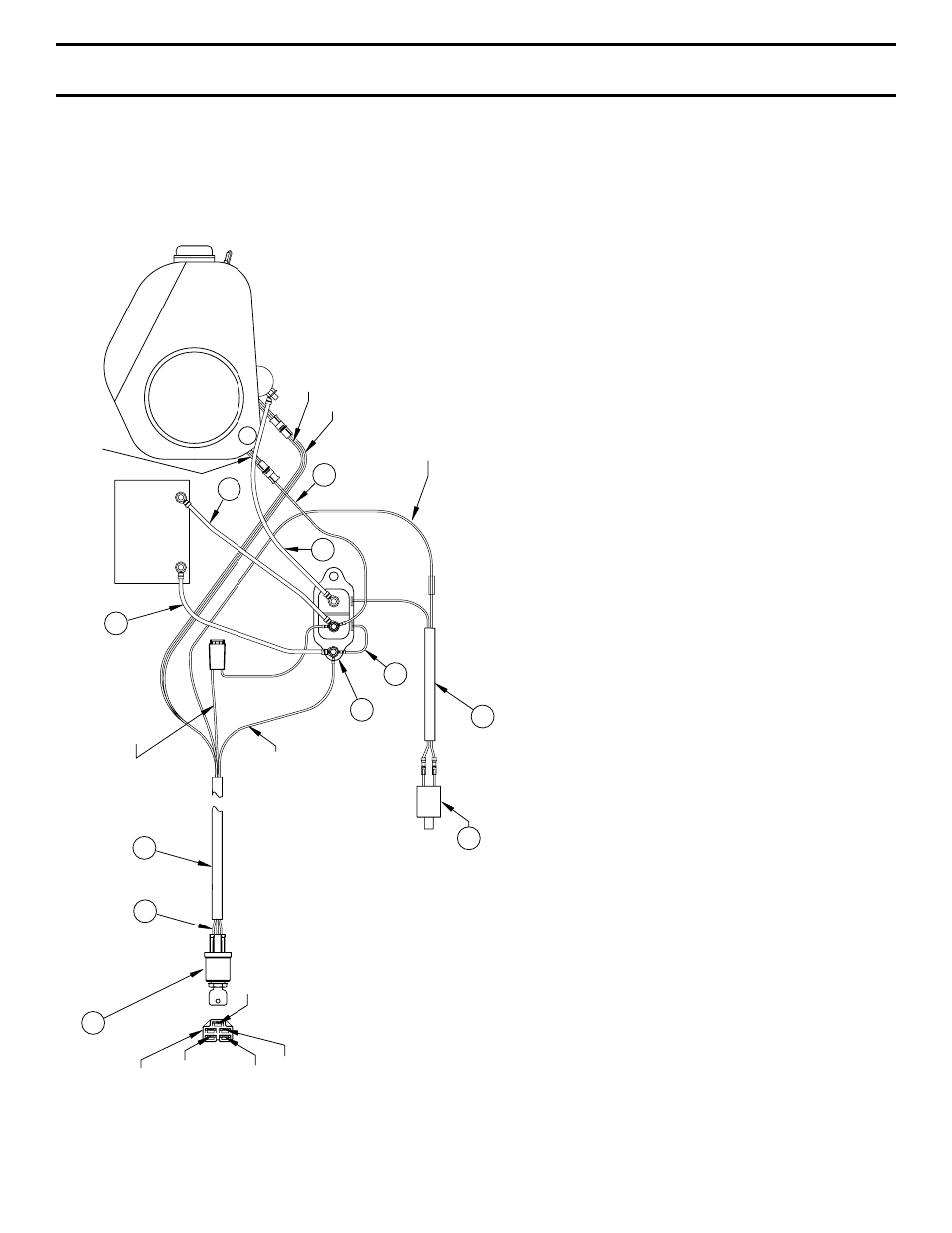

WIRING DIAGRAM
ITEM
P
ART NO.
DESCRIPTION
1.
49193
WIRE HARNESS
2.
49194
WIRE, RED CHARGE
3.
49195
WIRE, BLACK
4.
49192
WIRE, INTERLOCK
5.
49244
WIRE, GROUND
6.
49196
WIRE, BLACK BA
TTERY
7.
49197
WIRE, RED BA
TTER
Y
8.
HA237888
WIRE, RED ST
AR
TER
9.
HA237544
SOLENOID
10.
HA231999
SWITCH, INTERLOCK
1
1
.
HA237494
SWITCH, ST
AR
TER
12
2491545
CONDUIT
, FLEXIBLE
RED WIRE BATTERY CHARGE
BLACK WIRE TO ENGINE GROUND
GRAY WIRE TO AFTERFIRE SOLENOID
BLACK WIRE
RED WIRE
BATTERY
SOLENOID
INTERLOCK SWITCH
STARTER SWITCH
BLUE WIRE
BLUE WIRE
GRAY WIRE
WHITE WIRE
RED WIRE
WHITE WIRE
O
ENGINE
-
+
1
12
6
7
2
10
11
4
5
9
8
