VFH InverterFlex ® - Ceiling Cassette Control Heat Controller
Wired Remote Controller XK19
2

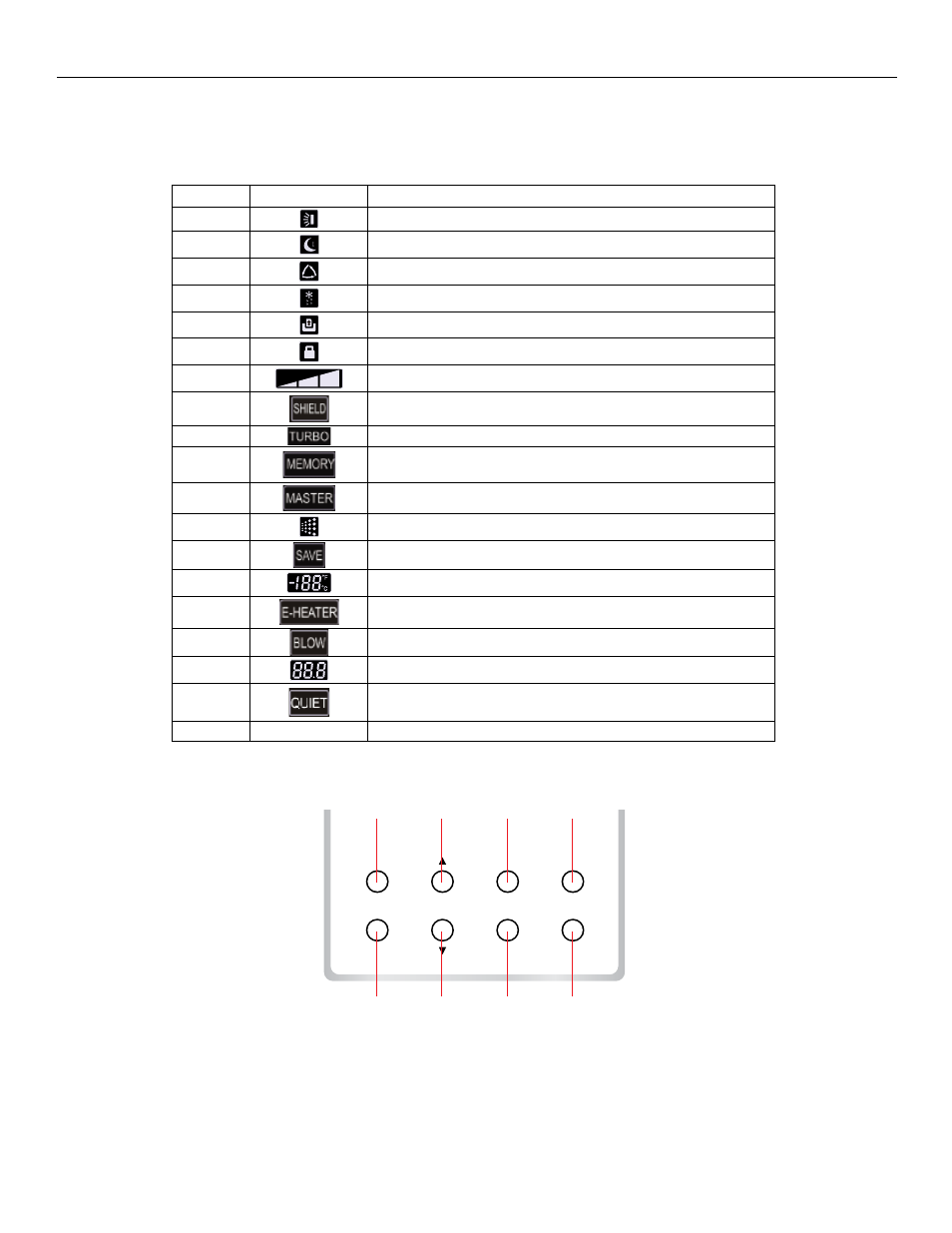

Table 1
No. Symbols Description
1 Swing function.
2 Sleep function (Only sleep 1).
3 Running modes of the indoor unit (Cooling, Dry, Fan and Heating).
4 Defrosting function for the outdoor unit.
5 Gate-control function (this function is yet unavailable for this unit).
6 Lock function.
7 High, middle, low or auto fan speed of the indoor unit.
8
Shield functions (buttons, temperature, On/Off or Mode is shielded
by the remote monitor.
9 Turbo function.
10
Memory function (The indoor unit resumes the original setting state
after power failure and then power recovery).
11
Master wired remote controller (this function is yet unavailable for
this unit).
12 It blinks under on state of the unit without operation of any button.
13 Energy-saving function (this function is yet unavailable for this unit).
14 Ambient/preset temperature value.
15 Electric auxiliary heating function.
16 Blow function.
17 Timing value.
18
Quiet function (two types: quiet and auto quiet)
(this function is yet unavailable for this unit).
19 SET It will be displayed under the debugging mode.
2 Buttons
2.1 Buttons on the Wired Remote Controller
Enter/cancel Enter/Cancel Fan Mode
Function Timer On/Off
12 3 4
5 6 7 8
Fig. 3 Buttons on the Wired Remote Controller
