5
Heat Controller, Inc. VMH 30/36 SERIES Owner’s Manual
5 6
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS

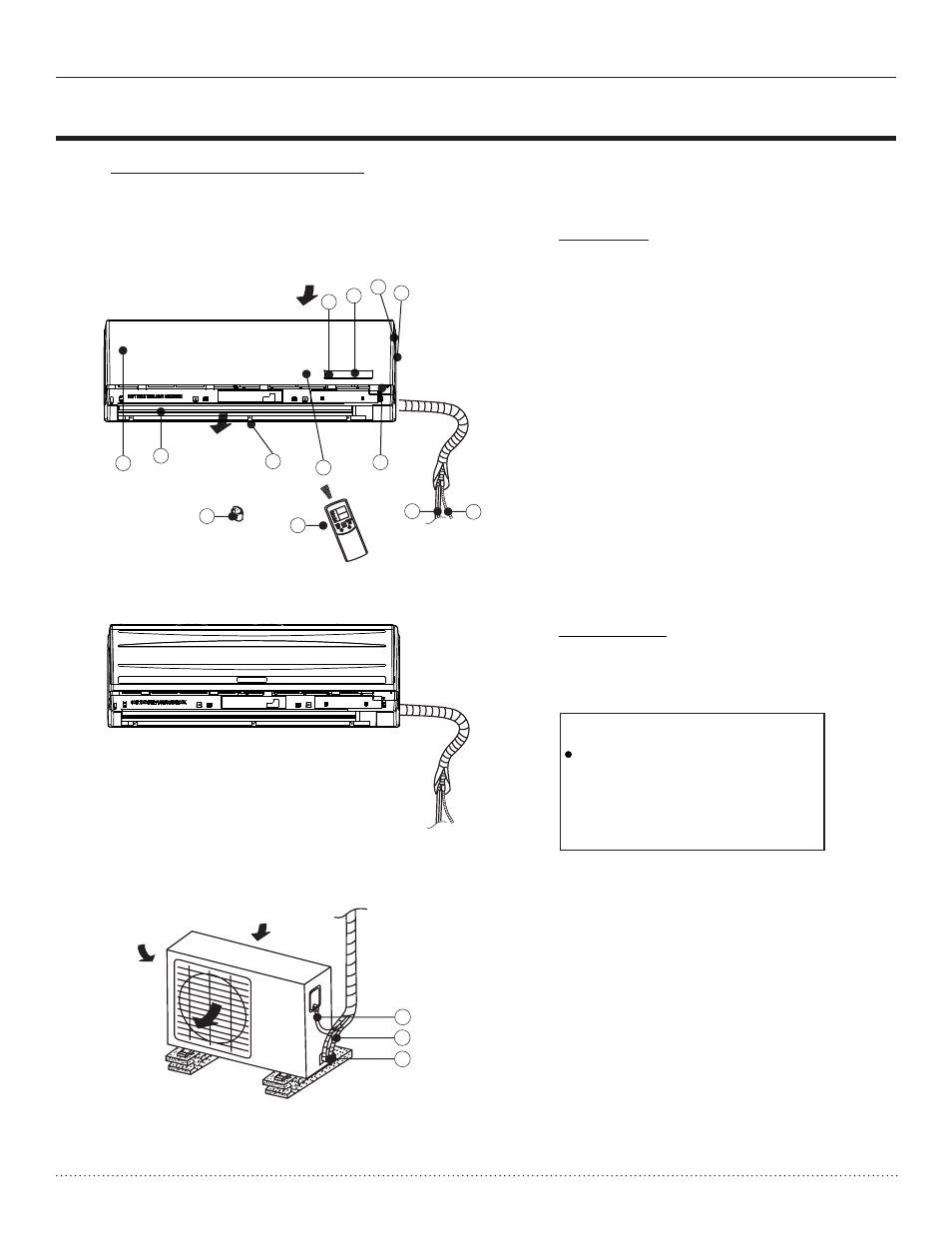

Identification of parts
Outdoor unit
Indoor unit
NOTE:
All the pictures in this manual
are for explanation purposes
only. Your air conditioner may
be slightly different.
1. Signal receptor
2. Display panel
3. Panel frame
4. Chassis
5. Front panel
6. Horizontal louver
7. Vertical louver(on some models)
8. Air filter(under the panel)
9. Manual control button
10. Remote controller holder
11. Remote controller
12. Connecting pipe
13. Drain hose
14.
15. Connective pipe
16. Base valve
Connecting cable
Indoor unit
Outdoor unit
6
5 7
8
9
1 2
3 4
13 12
11
Air outlet
Air inlet
Air inlet(rear)
Air inlet(side)
Air outlet
15
16
14
10
MOD E FAN S PEED
M
AUTO COO L DRY HEAT FAN
Note: The indoor unit you purchased may look
like one of the following:
(A)
(B)
LED display features
Signal
receptor
Signal
receptor
Signal
receptor
Signal
receptor
TIMER indicator
This indicator illuminates when
TIMER program is set ON/OFF.
AUTO indicator
This indicator illuminates when
the air conditioner is in AUTO
operation.
OPERATION FREQUENCY indicator
This display is separated into five zones.
The zones illuminate based on the
frequency of the compressor. For
example: high frequency will illuminate
all zones, the lower the frequency the
less zone will illuminate.
DEFROST indicator
This indicator illuminates when the
air conditioner starts defrosting
automatically or when the warm air
control feature is activated in heating
operation.
TEMPERATURE indicator
CLEAN AIR indication lamp:
Lights up when CLEAN AIR feature
is activated.
The actual display on your appliance may
differ slightly, but the features and
functions still apply:
(1)
(4)
(2)
(3)
A) This displays the temperature
point. When set temperature is
changed, this indicator begins
to flash, and stops 20 seconds later.
B) In fan only mode, the temperature
indicator displays the room
temperature.
C) This may also display any error or
protection codes needed to trouble
shoot the problem.
OPERATING INSTRUCTIONS
