Page 5: Dodge, Dodge sprinter, Ford

5

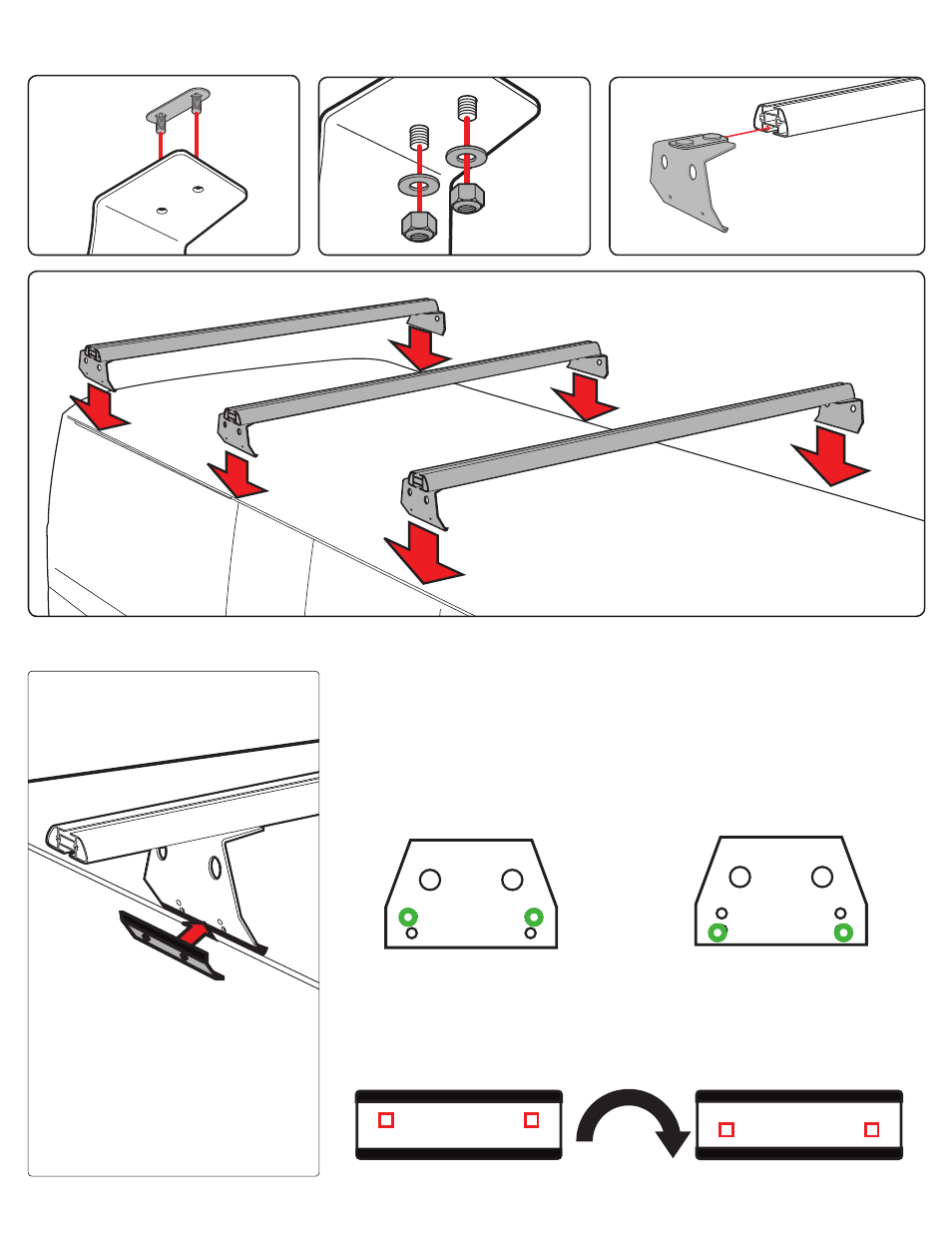

Please refer to page 1 for correct measurements.
H11
-For Ford Econoline 92-present turn the mounting plate so the hole
are slightly higher.
-Except for the Passenger side barn door. Flip the mounting plate 180°
so doors can open freely.
180°
Chevy Express
96-Present
GMC Savana
96-Present
Secure the mounting plate to the
“top” holes of the upright mounts.
Chevy Van GMC
Up & Till 96
Dodge
All Years
Dodge Sprinter
2002-2006
Ford
All Years
Secure the mounting plate to the “bottom” holes
of the upright mounts.
S053
W008
N005
A286
X4
