Vantech H1 Rack 3 Bar System for a GMC Savana 1996-On - Manual (Page 2)

2

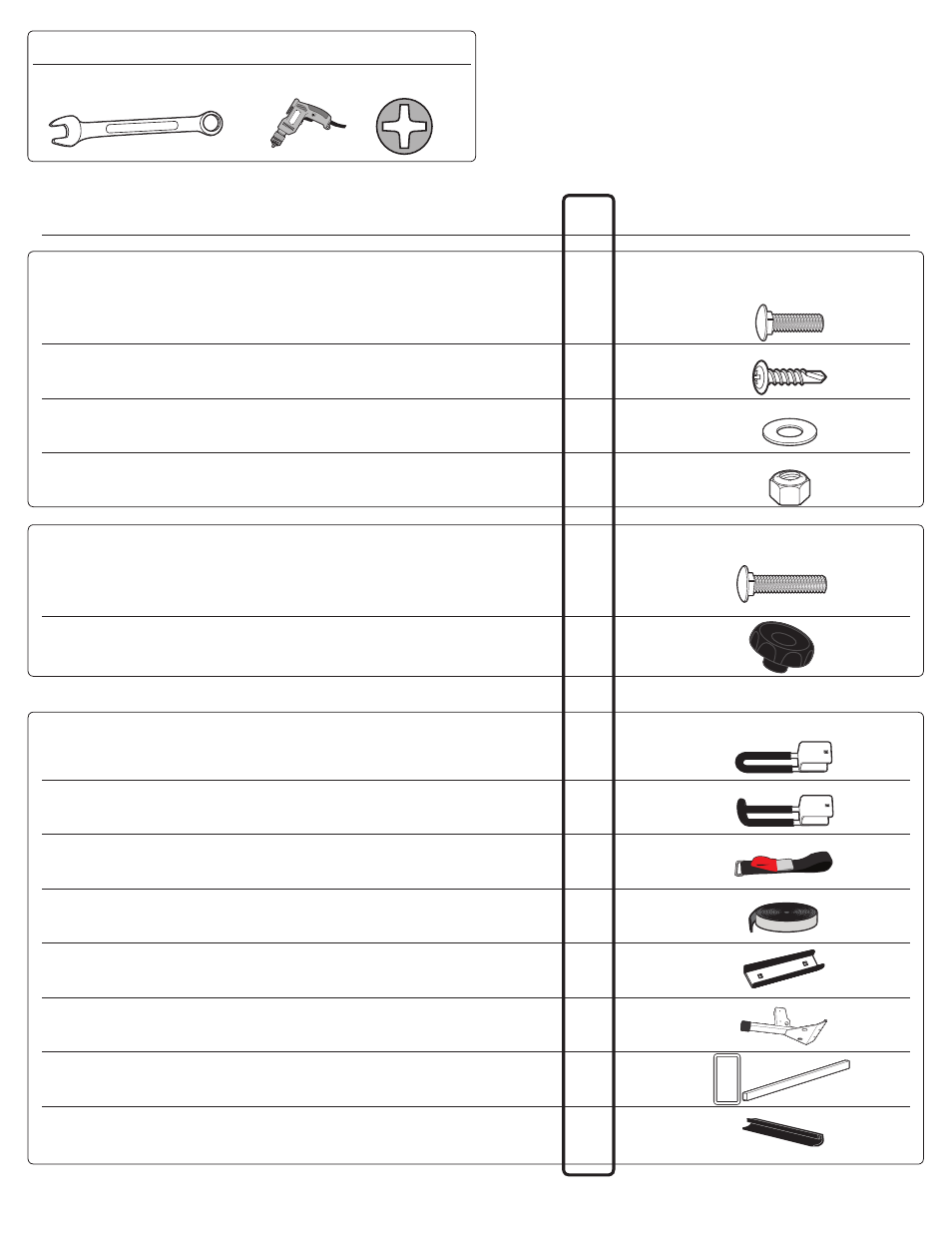

PART# DESCRIPTION 1 BAR 2 BAR 3 BAR 4 BAR ITEMS
(not DraWn to SCaLe)
ZC-B016 5/16” X 1 1/4” CarrIaGe BoLt 4 8 12 16
SS-B201 1/2” PHILLIP taP SCreWS` 4 8 12 16
ZC-W008 5/16” X 3/4” WaSHer 4 8 12 16
ZC-n005 5/16” nYLon nUtS 4 8 12 16
ZC-B018 5/16” X 1 3/4” CarrIaGe BoLt 0 2 4 5
n016 PLaStIC knoB 0 2 4 5
a02 LaDDer GUIDe 0 1 2 2
a06 LaDDer StoPPer 0 1 2 3
a69 eZ VeLCro StraP 0 1 2 3
BG0[ ] PLaStIC Bar GUarD 48”,49”,54”,55” 1 2 3 4
H11 DrIP raIL CLaMP 2” X 8” 2 4 6 8
H03/H04 UPrIGHt MoUntInG BaSe ( REFER TO CHART ON PG 1) 2 4 6 8
a500-[ ] CroSS Bar ( REFER TO CHART ON PG 1) 1 2 3 4
BG708 rUBBer Seat 2 4 6 8
required tools
Power tool with Phillips head
1/2” Wrench
HARDWARE D001/D002/D003
HARDWARE D055
