The "Channel A" SPEAKON actually carries both
channel A & channel B outputs (see Figure 5: Speakon
Connector Wiring Diagrams).
The "Channel B" SPEAKON carries the Channel B
output only.
This arrangement allows you the option of connect-
ing to the outputs separately or together. Connecting
through a single connector has the advantage of
minimising connections, preserving phasing and
simplified channel allocation, which is particularly
important when bi-amping or in bridge mode.
IMPORTANT
Do not overload your amplifier by connecting the
channel B output twice!
Channel A is used as the “dominant” channel and
when sourcing a dual output from Channel A the
following standard should be used:
Channel A = Left or Low Frequencies.
Channel B = Right or High Frequencies.
When in bridge mode:
Pin 1+ = Bridge Output Positive
Pin 2+ = Bridge Output Negative.
Output Wiring
When wiring to your speakers always use the largest
gauge wire your connector will accept. The longer the
speaker lead the greater the losses will be, resulting
in reduced power and less damping at the load. We
recommend using a heavy duty two core flex (four
core flex if bi-amping) 10 to 12 gauge (2mm
2 to
2.5mm 2 or 50/0.25 or equivalent) as a minimum.
Binding Post Outputs
When terminating to the 4 mm binding post (banana
jack) output connectors, banana plugs or bare wires
can be used. The red terminal is positive and the
black terminal is negative (ground).
If running in BRIDGE mode, only the red binding
posts are used. Channel A provides the positive
output to the load and channel B provides the negative
output to the load.
SPEAKON Outputs
When using the NEUTRIK SPEAKON (NL4MP) con-
nector for speaker output, use only the mating
NEUTRIK NL4FC in-line connector. This connector
is designed so that both channels can be fed from a
single connector.
Two SPEAKON connectors are provided on the
amplifier.
12 Installation

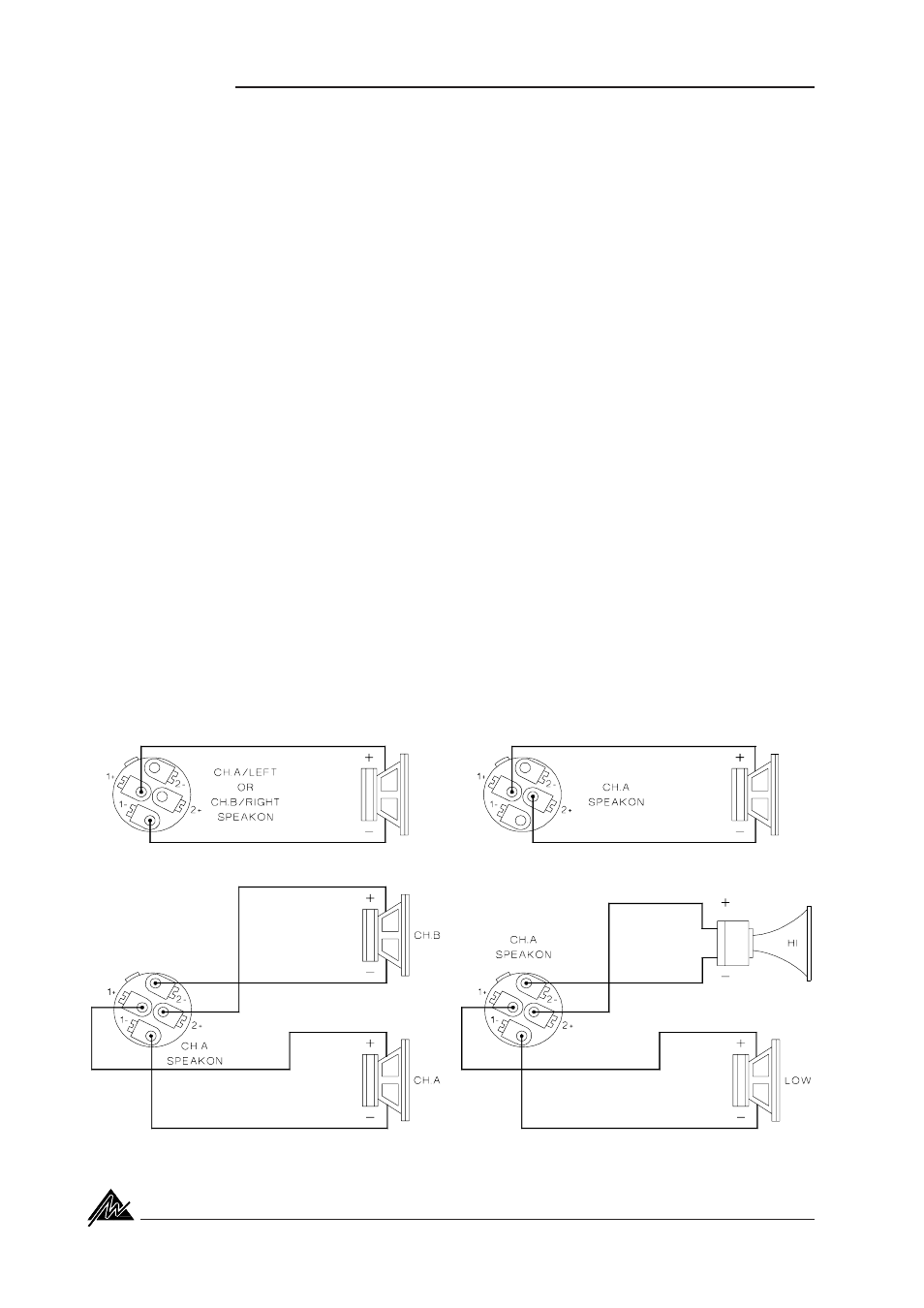

SINGLE CONNECTION BRIDGED CONNECTION
BI-AMP CONNECTION DUAL CONNECTION
Figure 5. "Speakon" Connector Wiring Diagram
