Front panel, 1 attenuator, 2 status indicator – Australian Monitor KA800 User Manual

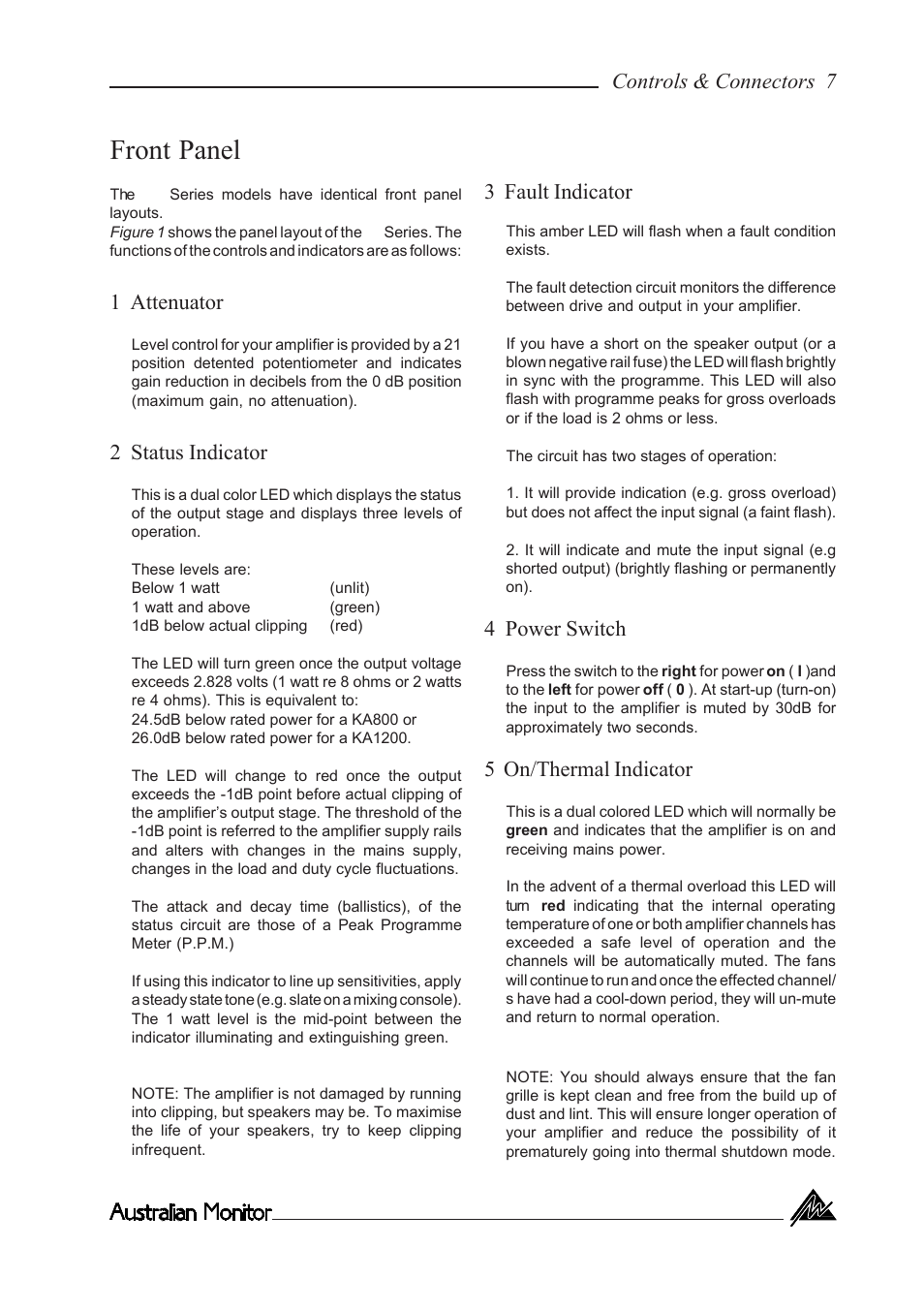

Page 7: 3 fault indicator, 4 power switch, 5 on/thermal indicator, Controls & connectors 7

Front panel, 1 attenuator, 2 status indicator | 3 fault indicator, 4 power switch, 5 on/thermal indicator, Controls & connectors 7 | Australian Monitor KA800 User Manual | Page 7 / 20 Front panel, 1 attenuator, 2 status indicator | 3 fault indicator, 4 power switch, 5 on/thermal indicator, Controls & connectors 7 | Australian Monitor KA800 User Manual | Page 7 / 20
