Lutron HD-RS - Manual (Page 3)

3

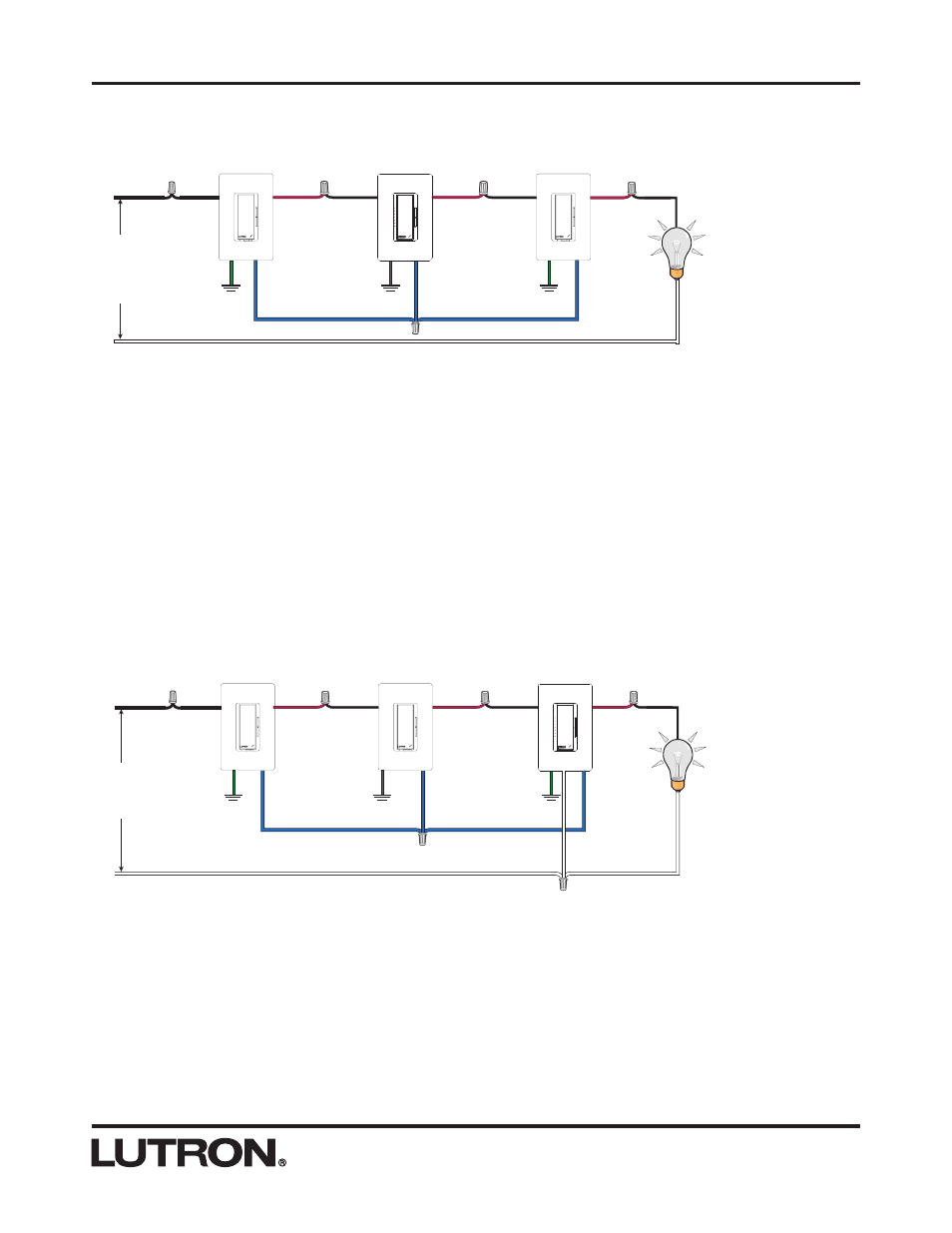

Multi-Location Installation 1
-6D, -10D with HD-RD
120/127VAC
50/60Hz
Black
Green
Hot
Neutral
Red
Blue
Black
Green
Red
Blue
Black
Green
Red
Blue
Lighting
Load
Multi-Location Installation with Neutral 1, 2
-6ND, -10ND, -5NE with HD-RD, -8ANS with HD-RS
Wiring Diagram 2
Remote Dimmer Dimmer
120/127VAC
50/60Hz
Black
Green
Hot
Neutral
Red
Blue
Black
Green
Red
Blue
Black
Green
Red
Blue
Lighting
Load
White
2
Remote Dimmers/Switches must be connected on the Line side of a multi-location installation when used with Neutral wire Dimmers or
Switches.
1
Up to 9 HomeWorks ® Maestro ® Remote Dimmers/Switches may be connected to the HomeWorks Maestro Dimmer/Switch. Total Blue
wire length may be up to 250' (76m).
Remote
Dimmer/Switch
Dimmer/
Switch
Remote
Dimmer/Switch
Remote Dimmer
Wiring Diagram 1
