RM 6210
9U 20” Rackmount LCD Monitor
2.2

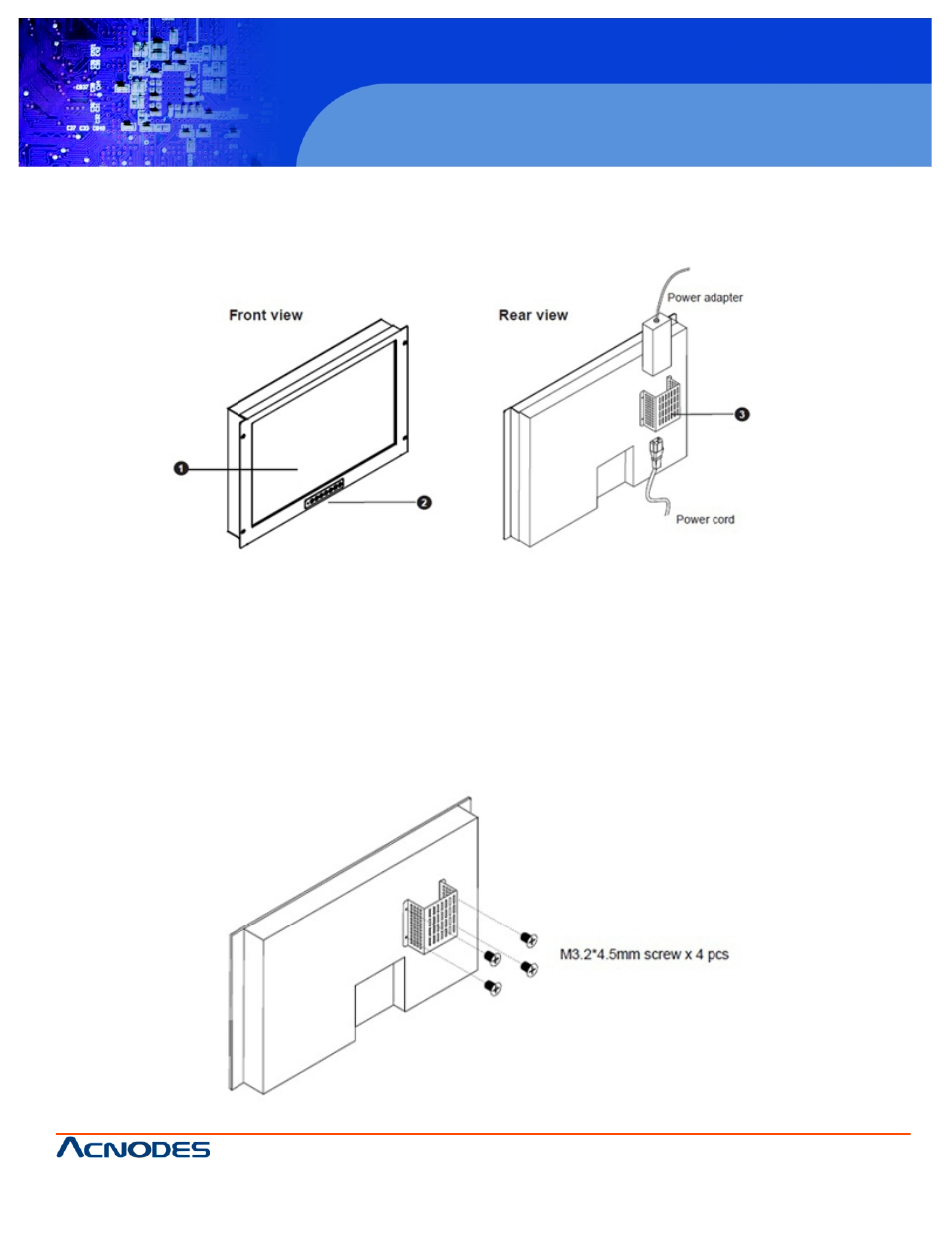

Structure Diagram
1. LCD interchangeable module kit
2. LCD membrane
3. Power adapter bracket
Power adapter bracket installation
