Connect audio amplifier or other TV set (Only
for AV)
1. Connect audio amplifier apparatus or other
TV set that with audio input.
2. Connect the composite video output terminal
to the video output terminal of the video
input device.
DVD or Set-top box
white red
DVI AUDIO
DVI
HDMI
red white
DVD or Set-top box

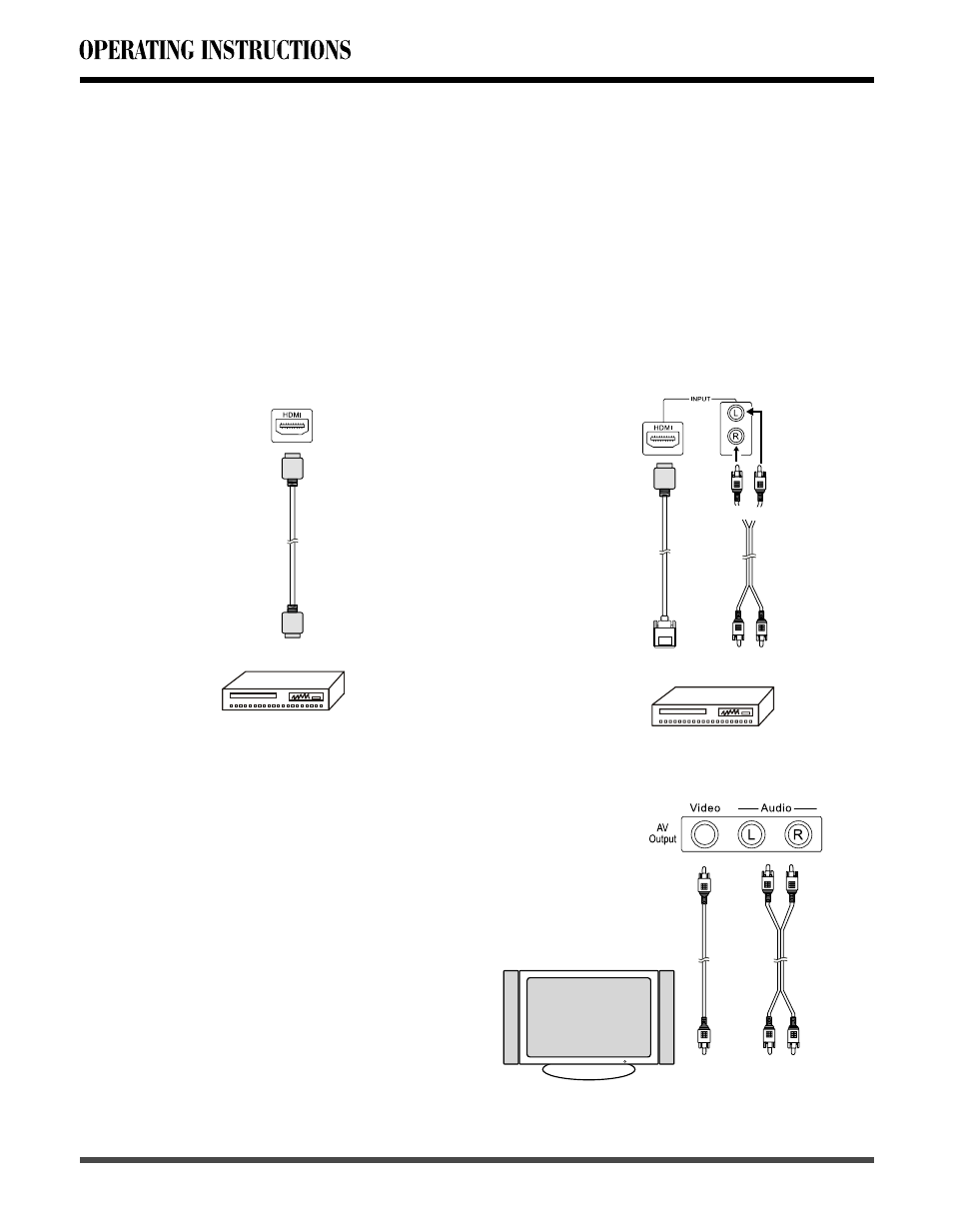

Connecting the DVD player or HDTV Set-top box using HDMI input
1. Connect the PDP to the DVD player or HDTV Set-top box with the HDMI cable.
2. Connect the DVI AUDIO input terminal to the audio output terminal of HDTV Set-top box
with DVI output terminal, and a DVI to HDMI conversion cable should be adopted.
3. Please ensure the Power Cord is connected and turned on the STANDBY button before
it is operated.
4. Press STANDBY button on the remote control or on the PDP.
5. The PDP and Computer are working at the same time. Press SOURCE button to select
HDMI on the remote control.
Note:
1. The second step is used, if you connect DVI output to the HDMI input of the PDP.
The second step isn’t used, if you connect HDMI output to the HDMI input of the PDP.
2. HDMI don’t support PC.
