-11-
CAR STEREO
GROUND
BATTERY
FOR 12 VOLT USE ONLY
AUTO-ANTENNA LEAD
GROUND METAL
SECTION OF VEHICLE
EXISTING SCREW OR BOLT CLEAN PAINT, RUST, DIRT
OR GREASE FROM AREA FOR GOOD CONNECTION.
LEFT FRONT
SPEAKER
REM BATT GND BRIDGED BRIDGED BRIDGED BRIDGED
CH1 CH2 CH3 CH4
FUSE FUSE
LEFT FRONT
SPEAKER
RIGHT FRONT
SPEAKER
MONO SPEAKER
OR
SUB-WOOFER
4-8 OHMS

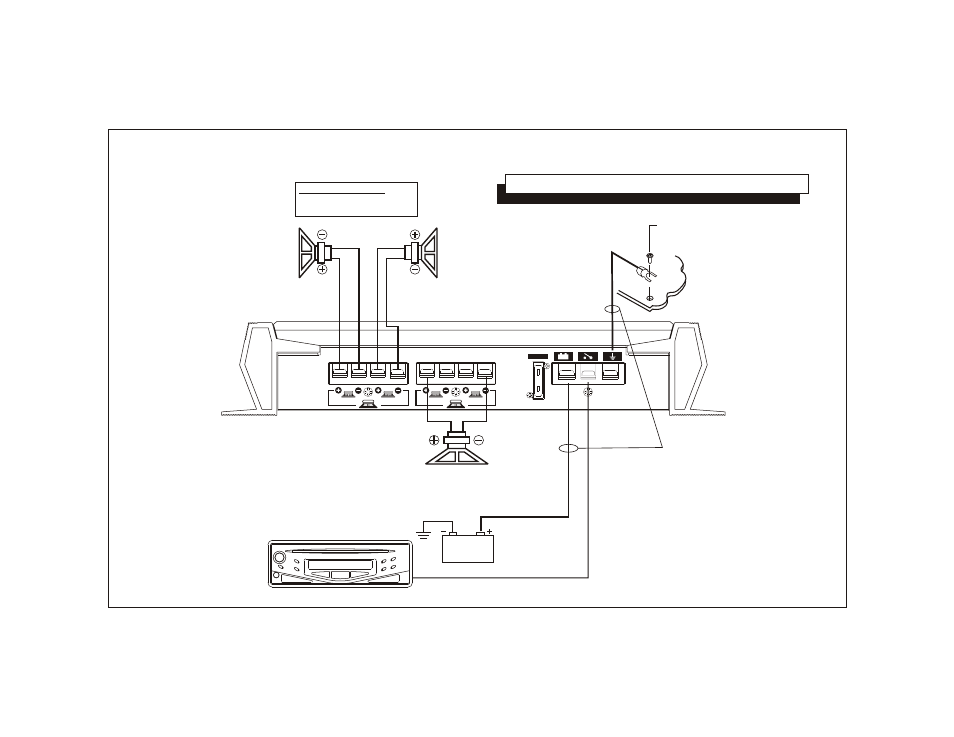

3-CHANNEL OUTPUT WIRING DIAGRAM
USE #10 GAUGE
WIRE (SEE TEXT)
SPEAKER IMPEDANCE
4-CHANNEL MODE: 2-8 OHMS
2/3-CHANNEL MODE: 4-8 OHMS
