AVerMedia Technologies EB1004 BAK User Manual
Page 5
5
6
:
(a) Display Channel 1 in full-screen.
(b) When in the OSD menu, pressing button is equivalent to entering the number "1".
7
:
(a) Display Channel 2 in full-screen.
(b) Pressing this button is equivalent to entering the number "2" when in the OSD
menu.
8
:
(a) Display Channel 3 in full-screen.
(b) Pressing this button is equivalent to entering the number "3" when in the OSD
menu.
9
:
(a) Display Channel 4 in full-screen.
(b) Pressing this button is equivalent to entering the number "4" when in the OSD
menu.
10
:
Display cameras in quad screen.
11
X :
(a) Display the Playlist.
(b) Play back a recording.
12
/
:
(a) Pause playback.
(b) Pause/Stop recording.
13
: Fast reverse during playback.
14
:
(a) Fast forward during playback.
(b) Toggle between the Playlist and the date/time search controls.
15
Removable hard disk rack with lock
CAUTION
BEFORE REMOVING THE REMOVABLE OR INTERNAL HARD DISK,
POWER OFF THE DVR UNIT FIRST.
16
Removable Power LED
17
Removable Hard disk LED
18
Hard disk LED
19
DVR Power LED
20
USB2.0 Socket
6

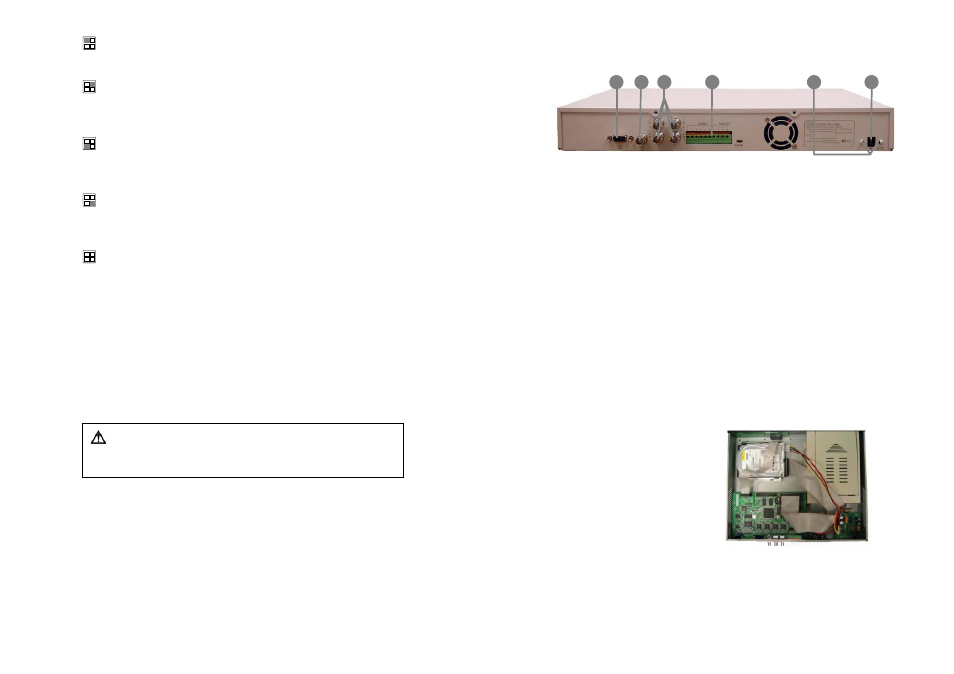

Back Panel
3
1
2
5
4
6
1
VIDEO OUT (BNC) : Composite video output for connection to a television monitor.
2
VGA OUT (15-pin D-Sub) : VGA output for connection to a VGA monitor.
3
CH1 ~ CH4 (BNC) : Composite video input for connection of up to four video
cameras. (Video input : V = 1 Vp-p)
4
Sensor Inputs and Relay Output : For connection of up to 4 sensor devices and an
alarm device. (Relay : 1A @ 125V AC/30V DC)
5
Power Socket : For connecting the power adapter. (12V @ 4.2A)
6
Ω Hook: Fix the power adapter after it is plugged into Power Socket.
Setting Up the DVR Unit
Installing Hard Drives
Before you install hard drives, please adjust the jumpers’ setting according to
users’ demands. Please refer to your hard disk label to adjust jumpers’ settings.
The DVR unit allows you to install up
to two hard drives (a master and slave
drive).
Install the master hard drive inside
DVR unit and fix it, and put the slave
hard drive in a removable hard disk
bay as the right picture shows.
