RESIDENTIAL
Gas Water Heaters
500 Tennessee Waltz Parkway, Ashland City, TN 37015
www.hotwater.com
ARGSS02708
February 2008 Printed in U.S.A.
Recovery capacity based on actual performance tests.
Water Connections – 3/4" on all models.
Internal Heat Traps (factory installed)
Pex-Lined Nipples (factory supplied)
®
MODEL
NUMBER
FIRST
HOUR
RATING
GALLONS
ENERGY
FACTOR
GALLON
CAPACITY
BTU
INPUT
PER HOUR
NATURAL †
RECOVERY
90ºF RISE
GALLONS
PER HOUR
R
VALUE A B C D E F
DRAFT
HOOD
OUTLET
APPROXIMATE
SHIPPING
WEIGHT
(LBS)
SHORT MODELS

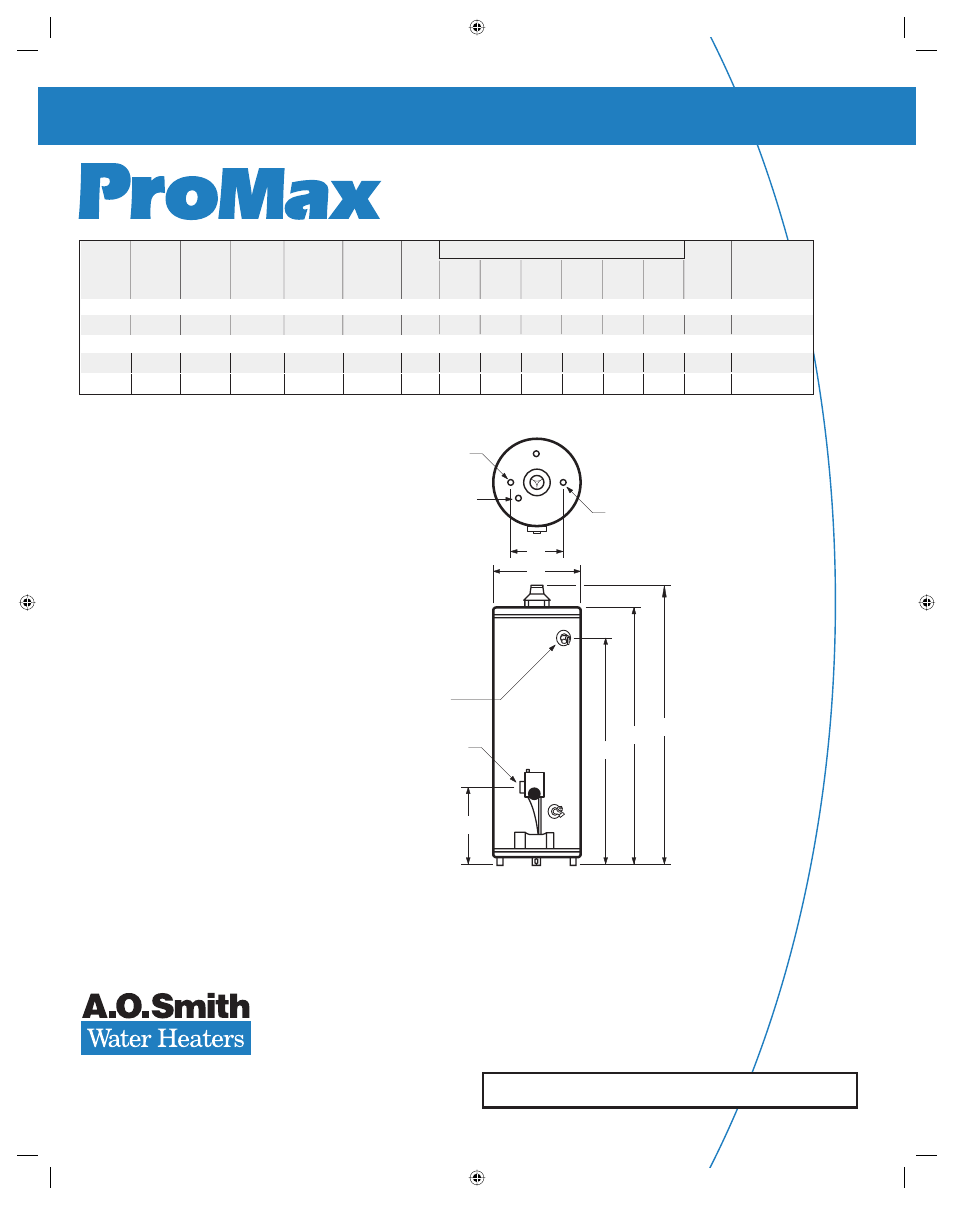

DIMENSIONS IN INCHES
For Technical Information and Automated Fax Service, call 800-527-1953.
A. O. Smith Corporation reserves the right to make product changes or improvements without prior notice.
Maximum Hydrostatic Working Pressure: 150 PSI.
B
A
F
D
1/2" GAS
CONNECTION
T&P VALVE
COLD
CONNECTION
C
E
HOT
CONNECTION
ANODE ROD
TALL MODEL
ACVT-50 87 .58 50 50,000 51 8 60-3/4 57-1/2 20 13 8 50-1/2 4 148
GVCA-30 54 .61 30 30,000 30 8 49 45-3/4 18 13 8 39 3 99
GVCA-40 67 .59 40 40,000 40 8 52-1/4 49 20 13 8 42-1/4 3 122
