Martin Universal Design U-9102 KIDS' DUAL ART CENTER - Manual (Page 3)

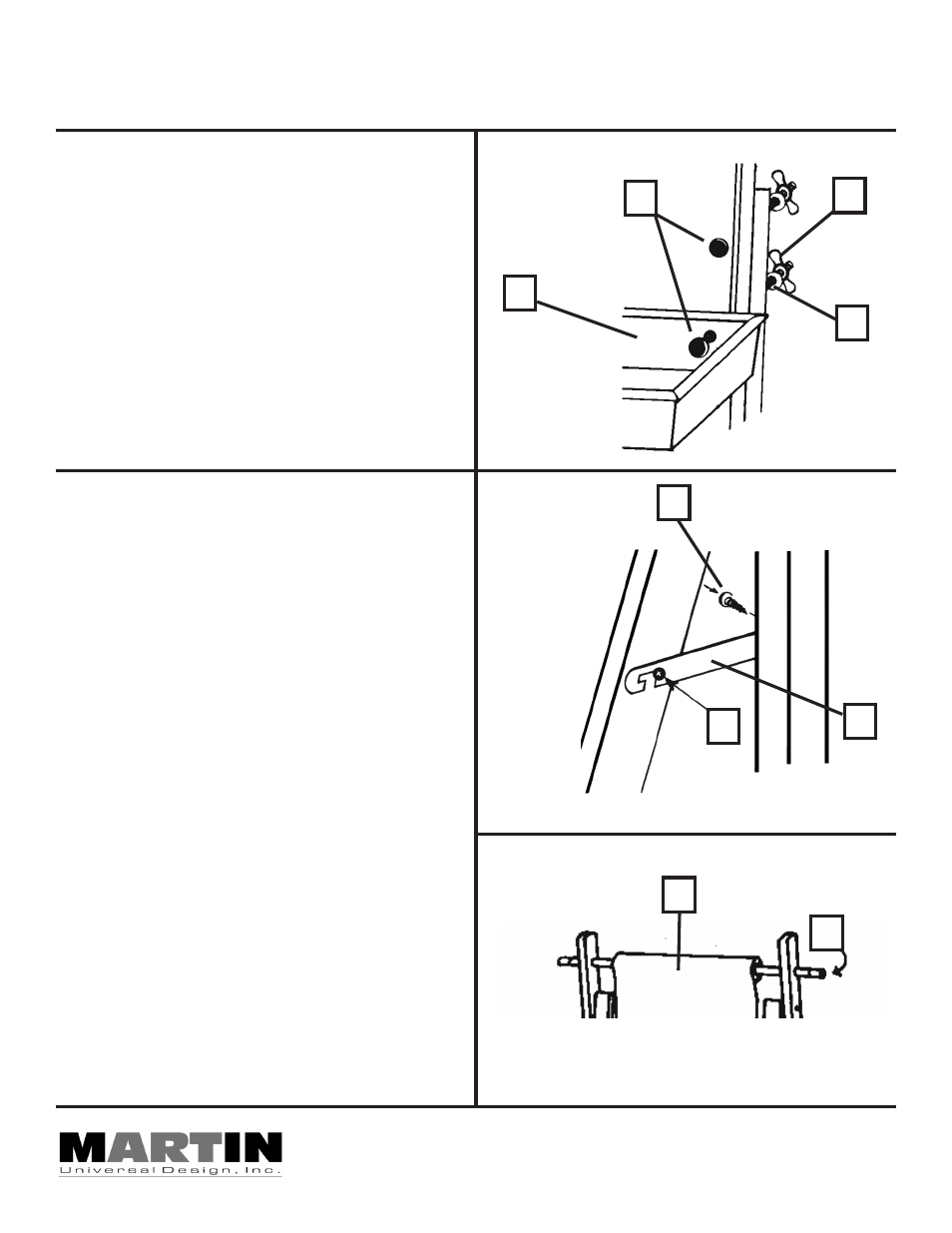

3. Attach plastic tray (A) to white
board side, using 2 ea.
3/16” x 2 1/2” bolts (G) into holes
below white board, first insert bolt
through black plastic tray, then
through upper and lower leg and
then attach washer (H) onto bolt
and tighten wing nut (I).
Repeat with other side .
See FIG 2.
4. Attach brackets (J) to both sides
of easel using 4 ea. 5/8” phillip head
screws (K) into pre-drilled holes and
tighten.
Note: 2 screws per bracket.
See FIG 3.
5. Insert dowel rod (B) through
paper roll (D), then insert dowel rod
through top of easel holes in easel
side frame. See FIG 4.
See FIG 5 on last page for
exploded large view with part
identification & completed easel
illustrations.
Your child is now ready for hours of
Creative Enjoyment!
Kids’ Dual Art Center Assembly Instructions
Model # U9102
H
A
FIG 2.
I G
K
J
K
4444 Lawton Avenue, Detroit, MI 48208 USA • Tel:(313)895-0700/Fax:(313)895-0709
Email: [email protected] • visit us at www.MartinUniversalDesign.com
09/201
1- RPI
B
D
FIG 3.
FIG 4.
White
Drawing
Board Side
3
