input of another channel on the same amplifier, or of
another amplifier with true balanced inputs.
The pass-through output does
not convert unbalanced sources
to a true balanced signal.
If you wish to drive an unbalanced amplifier from
the pass-through outputs, you will need to use
XLR-to-RCA adapters. These should be configured
so that pin 1 of the XLR is connected to the shell of
the RCA connector, and pin 2 of the XLR is
connected to the center pin of the RCA connector.
Loudspeaker Outputs
The heavy-duty output
terminals of the Ayre V-6x
work best with speaker cables
using spade lugs.
The Ayre V-6x drives the loudspeakers with
balanced outputs. Since none of the output
terminals are grounded, connecting any of them to
ground may result in damage to the amplifier.
D o n o t c o n n e c t t h e l o u d s p e a k e r
outputs to any speaker switch-box,
accessory, or test equipment that has a
common ground connection.
5

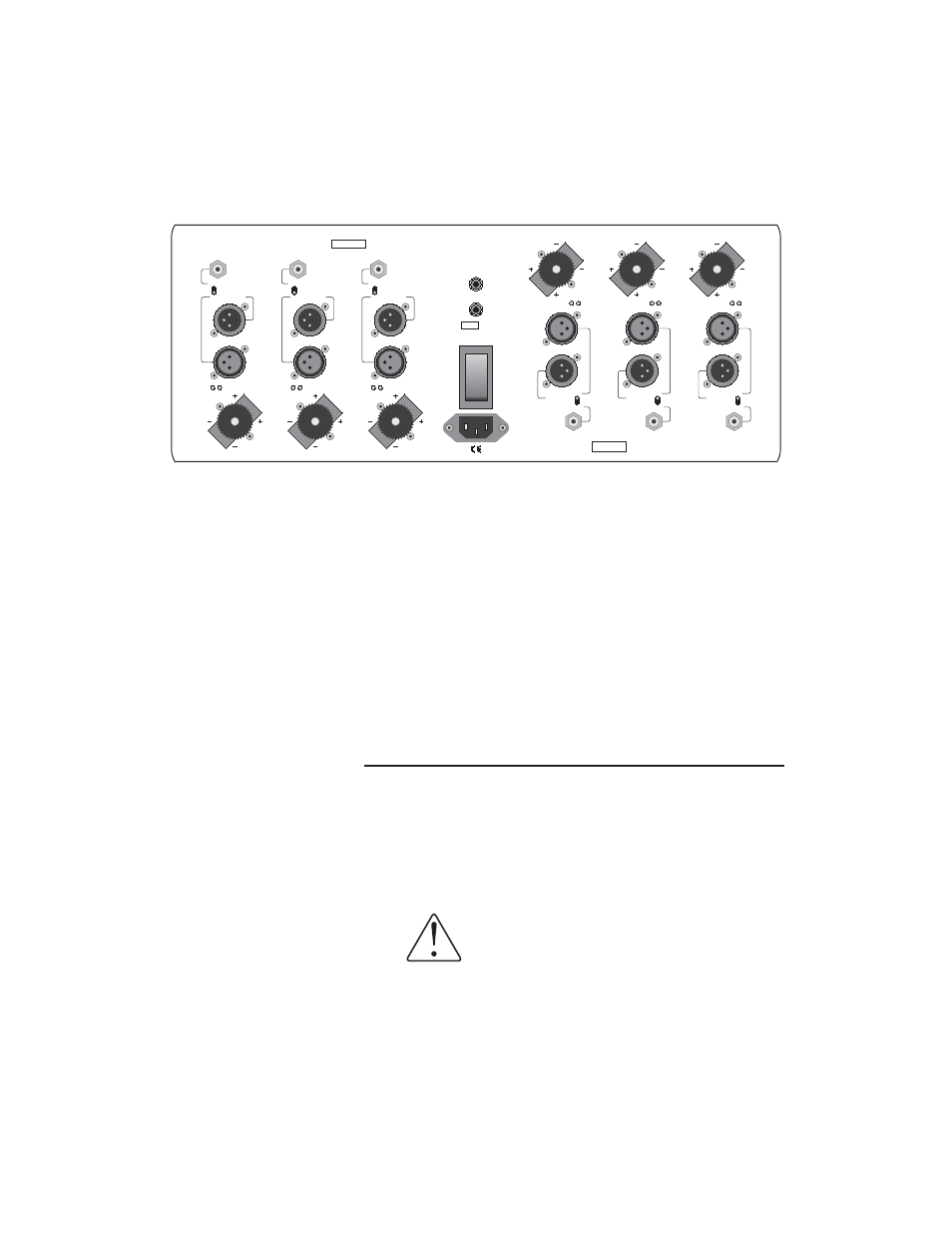

Trigger In/Out
Input Sel
Unbal
Bal
Pass-Through
Output
Fuse + - Fuse
Input Sel
Unbal
Bal
Pass-Through
Output
Fuse + - Fuse
Input Sel
Unbal
Bal
Pass-Through
Output
Fuse + - Fuse
Input Sel
Unbal
Bal Pass-Through
Output
+ Fuse Fuse -
Input Sel
Unbal
Bal Pass-Through
Output
+ Fuse Fuse -
Input Sel
Unbal
Bal Pass-Through
Output
+ Fuse Fuse -
¡Attention! — Balanced Outputs
Do Not Connect Output Terminals to Ground
Volts
50/60 Hertz
1800 W Max
V-6 Power Amplifier S.N.
A y r e Boulder, Colorado USA
