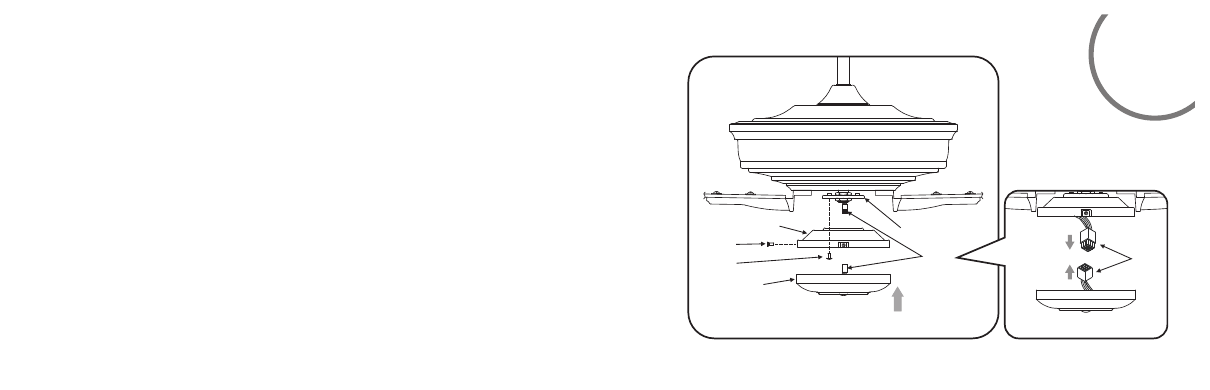

Fig. 17
Mounting ring
Screw
Switch box plate
Switch Cup
Screw
Molex
Molex
INSTALLING THE SWITCH BOX
PLATE&SWITCH CUP
Step1. Remove the switch box plate from the switch cup by removing three screws
from the rim of the switch box plate and reserve the screws.
Step2.Remove 1of 3screws from the mounting ring and loosen the other 2
screws.(Do not remove.) (Fig.17)
Step3.Place the key holes from the switch box plate over the 2 screws previously
loosened from the mounting ring , turn switch box plate until it locks in place
at the narrow section of the key holes. Secure by tightening the 2 screws
previously loosened and the one previously removed.(Fig.17)
Step4.While holding the switch cup under your fan, firmly snap the wire molexes
together.(Fig.17)
Step5.Align the holes in the switch cup with the holes in the switch box plate.
Tighten the three screws removed in step1.(Fig. 17)
