2

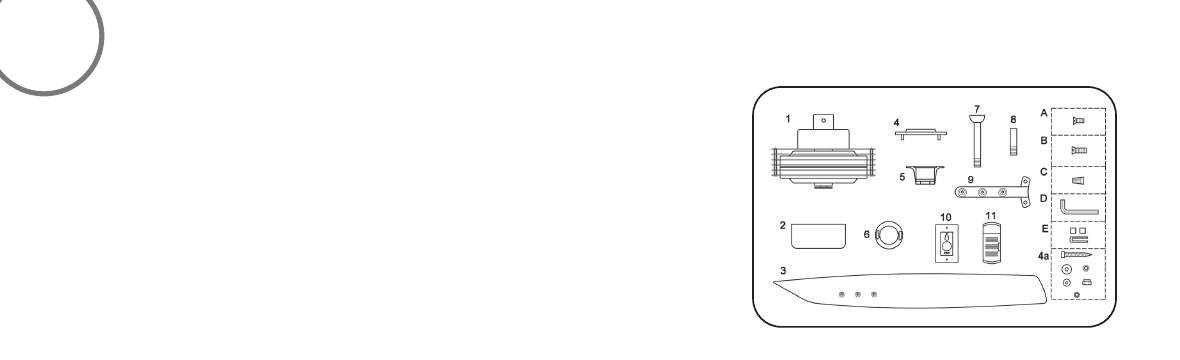

PACKAGE CONTENTS
2. Canopy
Canopy cover
3. Fan blade
4. Hanger bracket plate
4a. Mounting hardware:
M6.5x89mm wood screw (3pcs)
M6.5(Ø6.4x11.3x0.4-1.7mm-12
toothes) washer (3 pcs)
Ø6.5x19x1mm flat washer (3 pcs)
M5 nylon nut (3 pcs)
Ø5x14x1mm flat washer (3 pcs)
3/16" (Ø5.2x8.4x1.00mm) spring washer (3 pcs)
6.
5. Hanger bracket
11. Receiver with wire nuts(10pcs)
A. Blade Attachment Hardware:
3/16"x10mm screws(10pcs)
B. Bracket Attachment Hardware:
1/4"-20x13mm screws(7pcs)
C .
E.
Wire Nut (3 pcs.)
D. L hex wrench
Balance kit
1. Fan motor/housing ass'y
7. Standard 6"downrod assembly
to ceiling mounting only)
8. Minimum 3-1/2" length downrod (for close
9. Blade holder
10. Wall control transmitter include below pcnts
1) big wall plate (2 pcs)
2) small wall plate (2 pcs)
3) screw (6 pcs)
