Bibby Sterilin hotplates and stirrers are designed to operate under the following
conditions:-
❖ For indoor use only
❖ Use in a well ventilated area
❖ Ambient temperature range +5°C to +40°C
❖ Altitude to 2000m
❖ Relative humidity not exceeding 80%
❖ Mains supply fluctuations not exceeding 10% of nominal
❖ Overvoltage category II IEC664
❖ Pollution degree 2 IEC664
❖ Use with a minimum distance all round of 200mm from walls or other items
If the equipment is not used in the manner described in this manual the protection
provided by the equipment may be impaired.
Electrical Installation
THIS EQUIPMENT MUST BE EARTHED
Before connection please ensure that the line supply corresponds to that
stated on the rating label.
Power requirements:
Model Wattage Model Wattage
CB160 500W SB160 700W
CB161 50W SB161 50W
CB162 550W SB162 750W
There is an IEC socket at the rear of the instrument for connection to the mains
supply, (see figure 2). The unit is supplied with two mains leads fitted with IEC plugs
for connection to the instrument. One has a U.K. 3 pin plug and the other has a 2
pin “Shuko” plug for connection to the mains. Choose the lead appropriate for
your electrical installation and discard the other.
Should neither lead be suitable, take the lead with the U.K. plug and replace the
plug with a suitable alternative. See the enclosed instruction sheet for advice on how
to carry out this procedure.
Should the mains lead require replacement a cable of 1mm 2 of harmonised code
H05W-F connected to an IEC 320 plug should be used.
IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN
The mains lead should be connected to the instrument BEFORE connection to the
mains supply.
NOTE that when connected to the mains supply a green neon light on the front of
the unit illuminates, (see figure 1).
1
ENGLISH

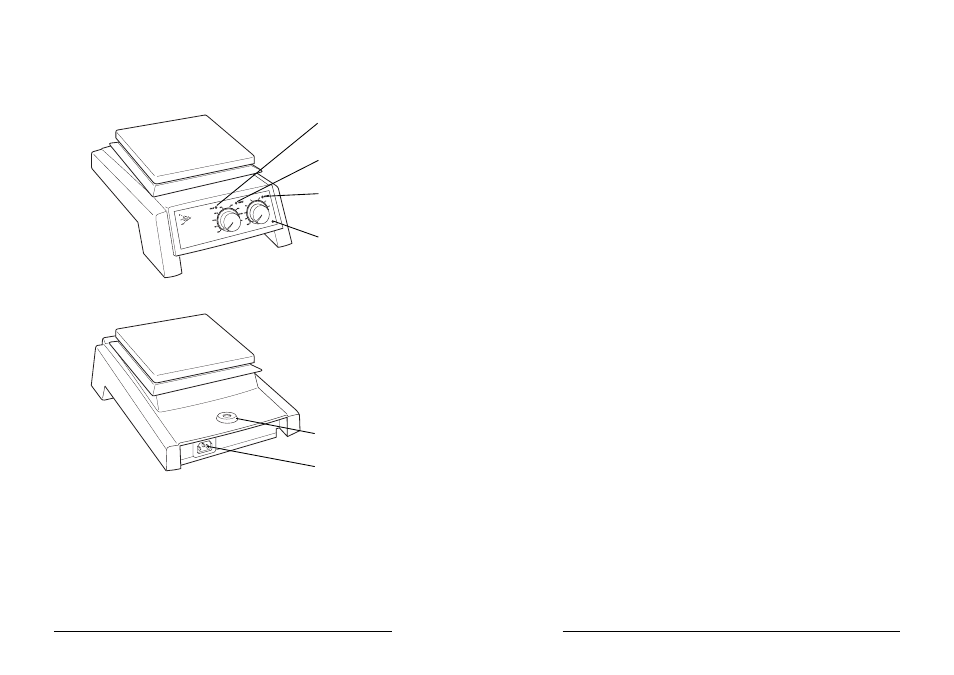

Figure 1 (Front view)
Figure 2 (Rear view)
‘Hot’ warning light
IEC socket
Retort rod fitting
Heater on light
Stirrer on light
Mains on light
Thank you for purchasing this Bibby Sterilin product. To get the best
performance from the equipment, and for your personal safety, please read
these instructions carefully before use.
