As-9950 – Audiovox AS-9950 User Manual

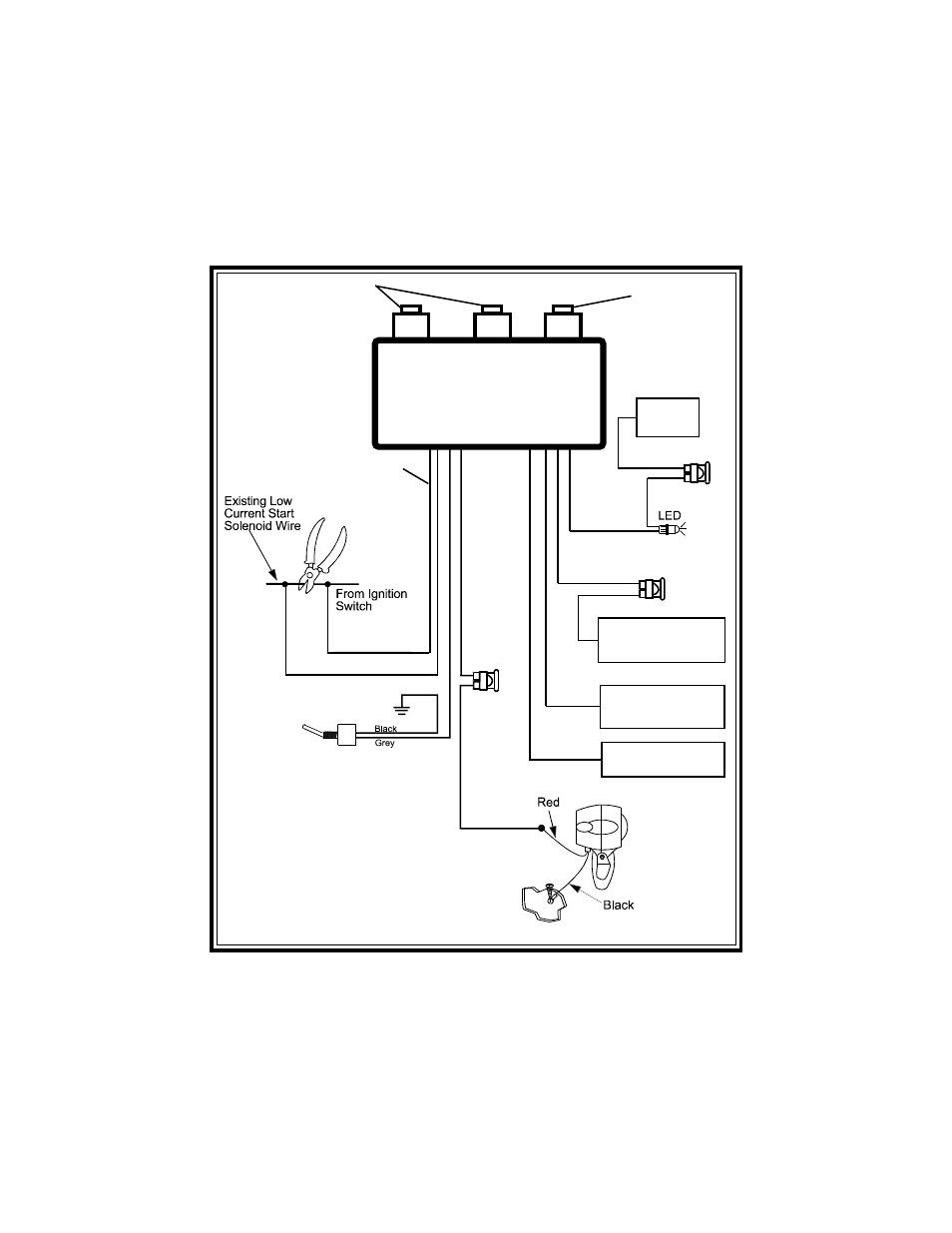

Page 5
AS-9950
Red
2A FUSE
Blue
Ignition Source
Connect To +12 Volts
Ignition/Crank
2A FUSE
Yellow
Ground Output
To Operate Horn
Black/White
Black 12 Gauge
White/Black
12 Gauge
2A FUSE
White/Black
(18 Gauge)
(Optional Siren)
To Secret Override
Switch (+12V when
activated)
Pink
Page 5
Required Relays
Optional Horn
Relay
+12 Volts
Constant
Valet Toggle
Switch
To Starter
Solenoid
