52
-EN

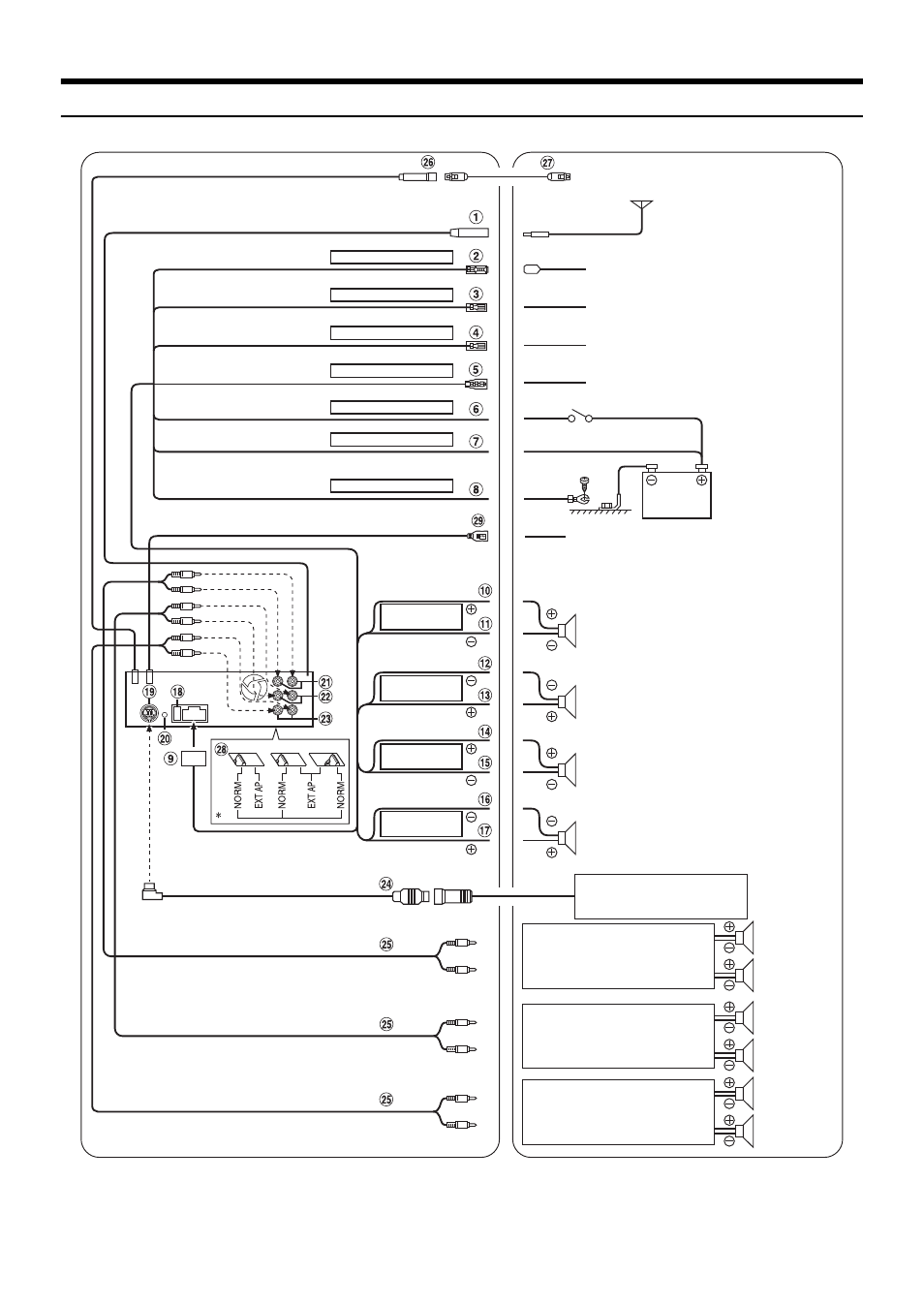

Connections
* The system switch is located on the bottom of the unit.
To amplifier or equalizer
Amplifier
Amplifier
Amplifier
To BLUETOOTH INTERFACE (KCE-400BT)
(sold separately)
Antenna
POWER ANT Blue
To power antenna
REMOTE TURN-ON Blue/White
AUDIO INTERRUPT IN Pink/Black
To vehicle phone
ILLUMINATION Orange
To the instrument cluster illumination lead
IGNITION Red
Ignition Key
Yellow BATTERY
Black GND
Battery
To USB Memory/Portable audio player or
iPhone/iPod
Gray
Speakers
SPEAKER
RIGHT FRONT
Front right
Gray/Black
Violet/Black
SPEAKER
RIGHT REAR
Rear right
Violet
Green
SPEAKER
LEFT REAR
Rear left
Green/Black
White/Black
SPEAKER
LEFT FRONT
Front left
White
CD Changer
(sold separately)
Speakers
Rear Left
Rear Right
Front Left
Front Right
Subwoofers
