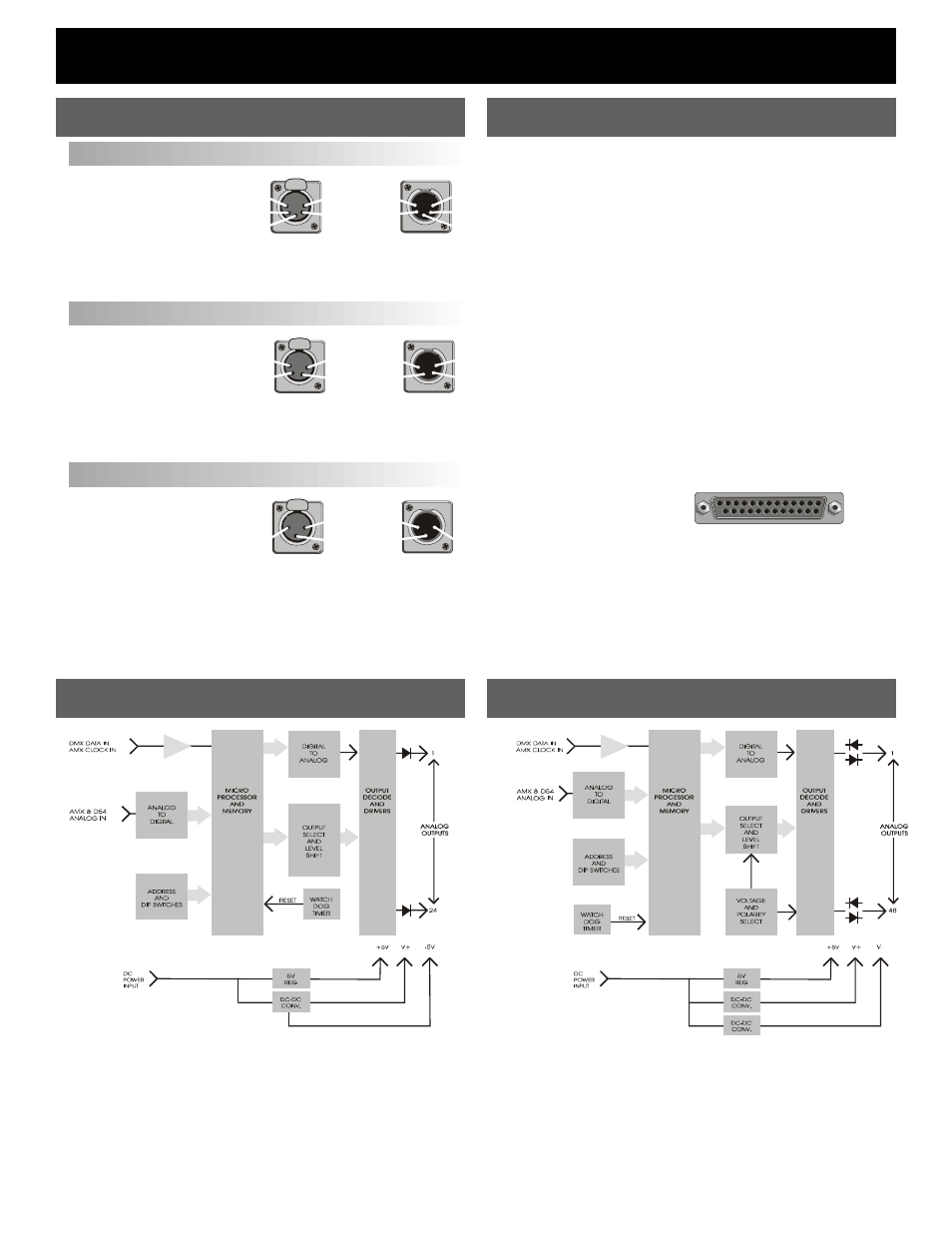

Page 3: Block diagram 24 channel block diagram 48 channel
DMXDecoder User Guide
Connector Pinout
AMX PIN ASSIGNMENT
1 - COMMON
2 - CLOCK+
3 - ANALOG
4 - CLOCK-
D54 PIN ASSIGNMENT
1 - COMMON
2 - NC
3 - ANALOG
DMX PIN ASSIGNMENT
1 - COMMON
2 - DATA-
3 - DATA+
4 - NC
5 - NC
AMX - 192
STRAND D54 (384)
DMX - 512
OUT (F)
OUT (F)
IN (F)
IN (M)
IN (M)
OUT (M)
5
4
3
2
1
PUSH
3
2
1
PUSH
4
3
2
1
4
3
2
1
5
4
3
2
1
PUSH
3
2
1
Analog
1
13
14
25
1 – Channel 1 & 25
2 – Channel 2 & 26
3 – Channel 3 & 27
4 – Channel 4 & 28
5 – Channel 5 & 29
6 – Channel 6 & 30
7 – Channel 7 & 31
8 – Channel 8 & 32
9 – Channel 9 & 33
10 – Channel 10 & 34
16 – Channel 15 & 39
17 – Channel 16 & 40
18 – Channel 17 & 41
19 – Channel 18 & 42
20 – Channel 19 & 43
21 – Channel 20 & 44
22 – Channel 21 & 45
23 – Channel 22 & 46
24 – Channel 23 & 47
25 – Channel 24 & 48
11 – Channel 11 & 35
12 – Channel 12 & 36
13 – Common
14 – Channel 13 & 37
15 – Channel 14 & 38
Block Diagram 24 Channel
Block Diagram 48 Channel
