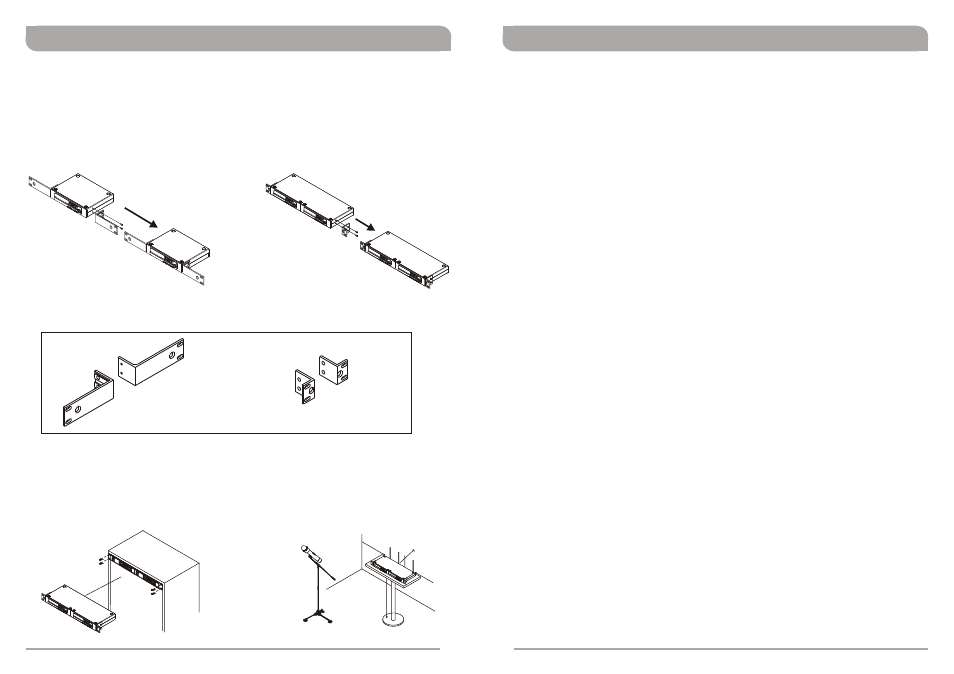

RACKMOUNT INSTALLATION FOR RECEIVERS
RECEIVER RACK-MOUNT KITS
Half-Rack Unit Receiver
! Install the optional FB-71 rackmount kit & fasten with screws on both sides. (Figure 4)
1-Rack Unit Receiver
! Install the optional FB-72 rackmount kit & fasten with screws on both sides. (Figure 5)
!
!
The rack mountable kits are pre-drilled with 4 opening holes to be fitted on an EIA
standard 19-inch rack case. (Figure 6)
For ideal reception and performance, install the receiver at least 1 meter (3 feet)
above the ground and away from EMI / RFI “noise” sources. In addition, place the
transmitter/microphone at least 1 meter (3 feet) away from the receiving antenna, as
shown. (Figure 7)
Mounts 1 half-rack receiver
into a single rack space
FB-71 FB-72
Mounts 1 1-rack receiver
into a single rack space
(Figure 5)
Ground
W
ll a
1
m
m 1
m 1
1m
(Figure 7)
(Figure 4)
(Figure 6)
8 9
WIRELESS ACCESSORIES & REPLACEMENT PARTS
FB-71: Rackmount kit fits 1 MR-818 receiver alone.
FB-72: Rackmount kit fits 1 MR-818T receiver alone.
FBC-71: Rear-to-front cables only(1-pair). It allows front mount antenna placement for
improved reception quality.
AT-20: Detachable 1/2 Wave Coaxial Antenna.
AD-707a: UHF 4-channel Wideband Antenna Divider System (480MHz ~ 1GHz).
AD-90W: UHF Wideband Directional Antenna (480MHz ~ 1GHz).
AT-70: UHF Ground Plane Antenna (1-pc, 2-pcs recommended)
AT-70B: UHF Antenna Signal Booster (1-pc, 2-pcs recommended)
AD-90S: UHF 4-Channel Wideband Power Splitter.
AT-90A: UHF 4-Channel Wideband Power Amplifier.
AD-808: UHF 4-Channel Active Antenna Combiner.
Single/Dual Channels True Diversity Receivers Single/Dual Channels True Diversity Receivers
