Setting RF Output Power
! 2 RF Output Power Levels: RF-HI and RF-LOW.
! Press MODE button until RF POWER mode
appears.
! Press SET button once to activate function.
! Press SET button to select the desired RF output
power.
! Press MODE button to confirm and save the
change, or LCD will stop flashing after 5 seconds
and parameter will be saved.
10 11
RF-HI
RF POWER
RF-LOW
RF POWER

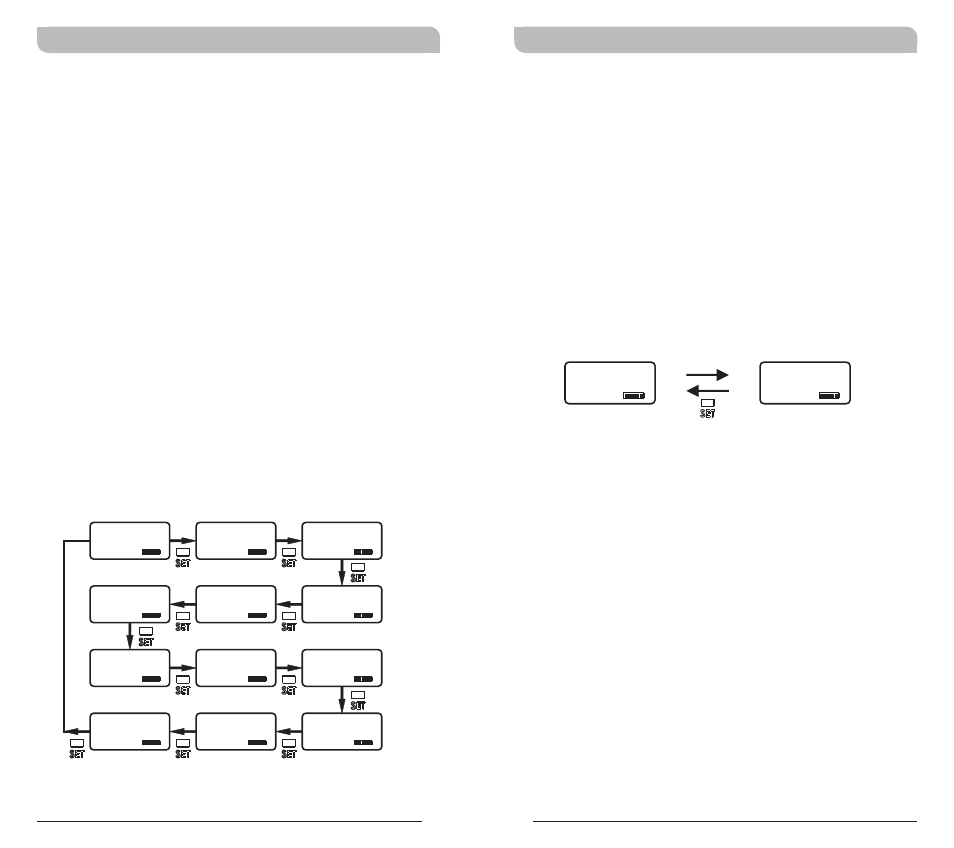

Setting Input Gain Level
! Selectable AF GAIN between 12dB to -6dB with
3dB step parameter up or down selection.
! Press MODE button until AF GAIN mode
appears.
! Press SET button once to activate function.
! Press SET button to select the desired
sensitivity level.
! Press MODE button to confirm and save the
change.
! The higher the sensitivity level, the lower the
dynamic range of input signals. Meanwhile noise
will increase, and the feedback problem will be
getting more serious.
! Please make sure sensitivity level is set at
proper level.
0 dB
AF GAIN
+3 dB
AF GAIN
+6 dB
AF GAIN
+12 dB +9 dB
AF GAIN AF GAIN
+9 dB
AF GAIN
+6 dB
-3 dB
AF GAIN
AF GAIN
+3 dB
-6 dB
AF GAIN
AF GAIN
0 dB
-3 dB
AF GAIN
AF GAIN
