Setting ACT transmitter frequency
The battery meter is lit when the transmitter is powered on. The LCD battery meter gives
a % indication of remaining battery life, as shown above. Replace with new, fresh batteries
when battery indicators fall to 10% (1 level remaining).
BA BA BA BA BA BA
100% 90% 80% 40% 10% 0%
SET
SELECT
Press ACT button
BA: Transmitter Battery Meter

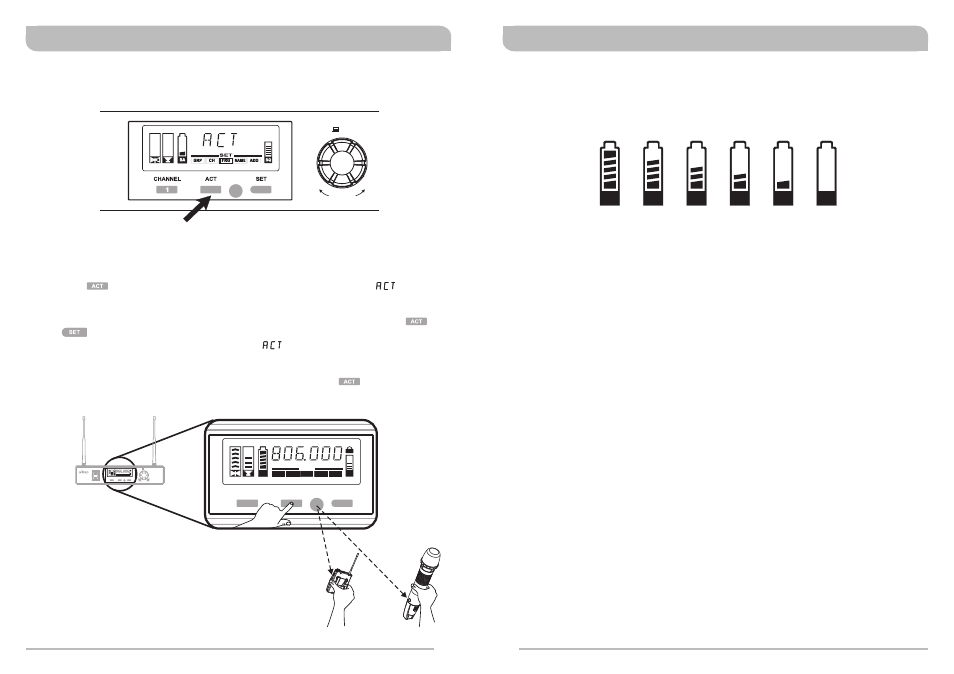

1. Press the button once to activate the syncing function. The word “ ”
appears immediately on the receiver screen.
2. Turn the transmitter’s power on and bring handheld or bodypack transmitter within
30cm (12”) of the IR port on the receiver. The IR port is located between the
and buttons. The frequency will sync automatically.
3. When the sync is done successfully, the word “ ” will disappear from the receiver
screen and the transmitter LCD will show the group & channel.
4. The word “A--LOSE ” will appear on the receiver screen after 10 seconds if the syncing
was unsuccessful. To start the “ ACT ” syncing again, press the button again.
