SANBloc S50 Quick Install Guide
2

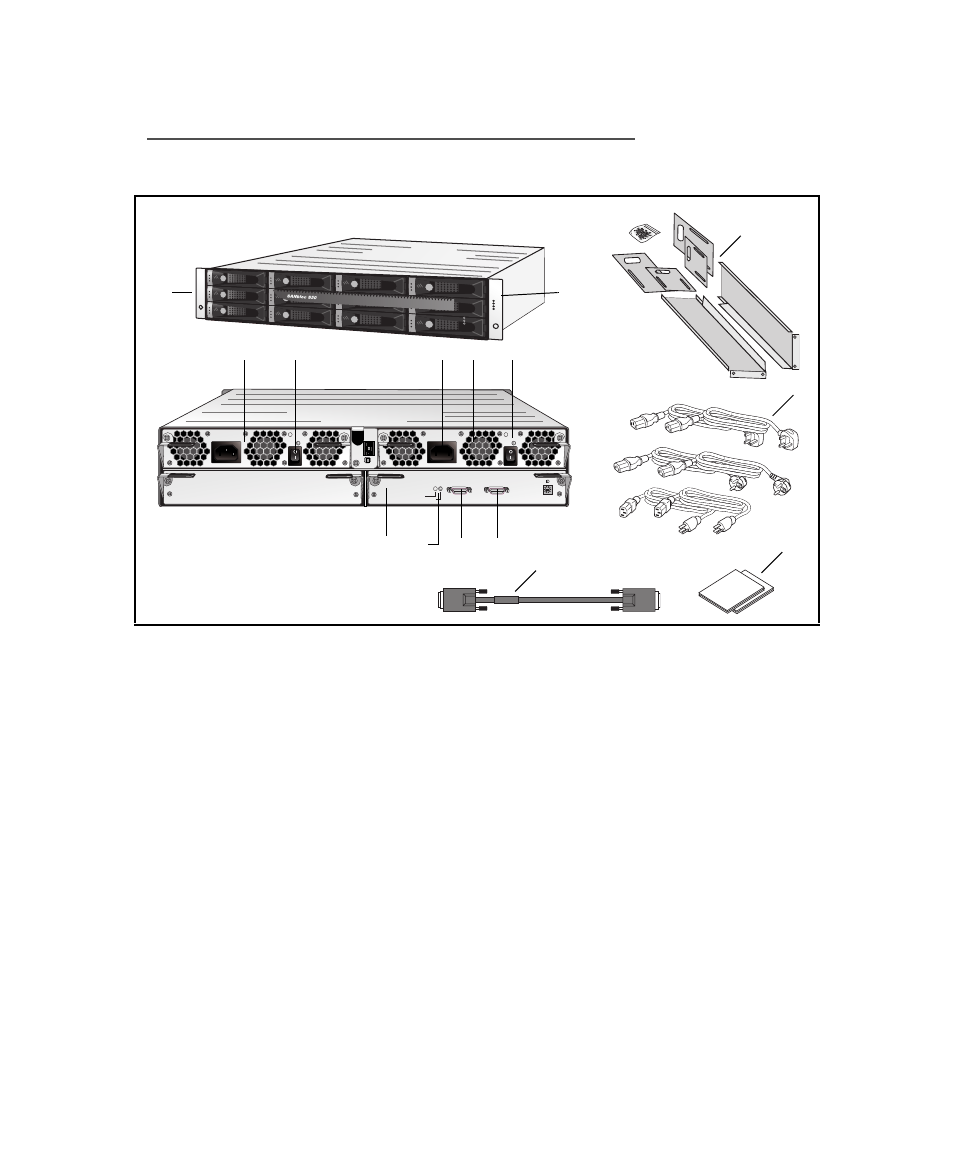

Enclosure Features and Accessories
1
Pre-installed disk drives (4 or 12) and
pre-installed drive carrier blanks (8
blanks if 4 drives are pre-installed)
8
SAS I/O controller status LEDs
2
Enclosure status LEDs
9
SAS HOST connector
3
Advanced Power and Cooling units
(two)
10
SAS EXP connector
4
On/off switch
11
Rackmount kit
5
Power connector
12
Power cables for all regions (6
total)
6
APC unit status LEDs
13
External 4x SAS cable
7
SAS I/O controller
14
Quick Install Guide
Qui
ck
Insta
ll
Gu
ide
HOST
EXP
FAULT !
SEP MASTER
1
3
4
5
6
7
8
9
2
11
13
14
12
3
10
