Recycle Rack

*Tools Needed for Installation

Level

Cement mixing tub

Shovel

Trowel

Hole coring machine with 4” bit

Access to water hose

Materials to build brace

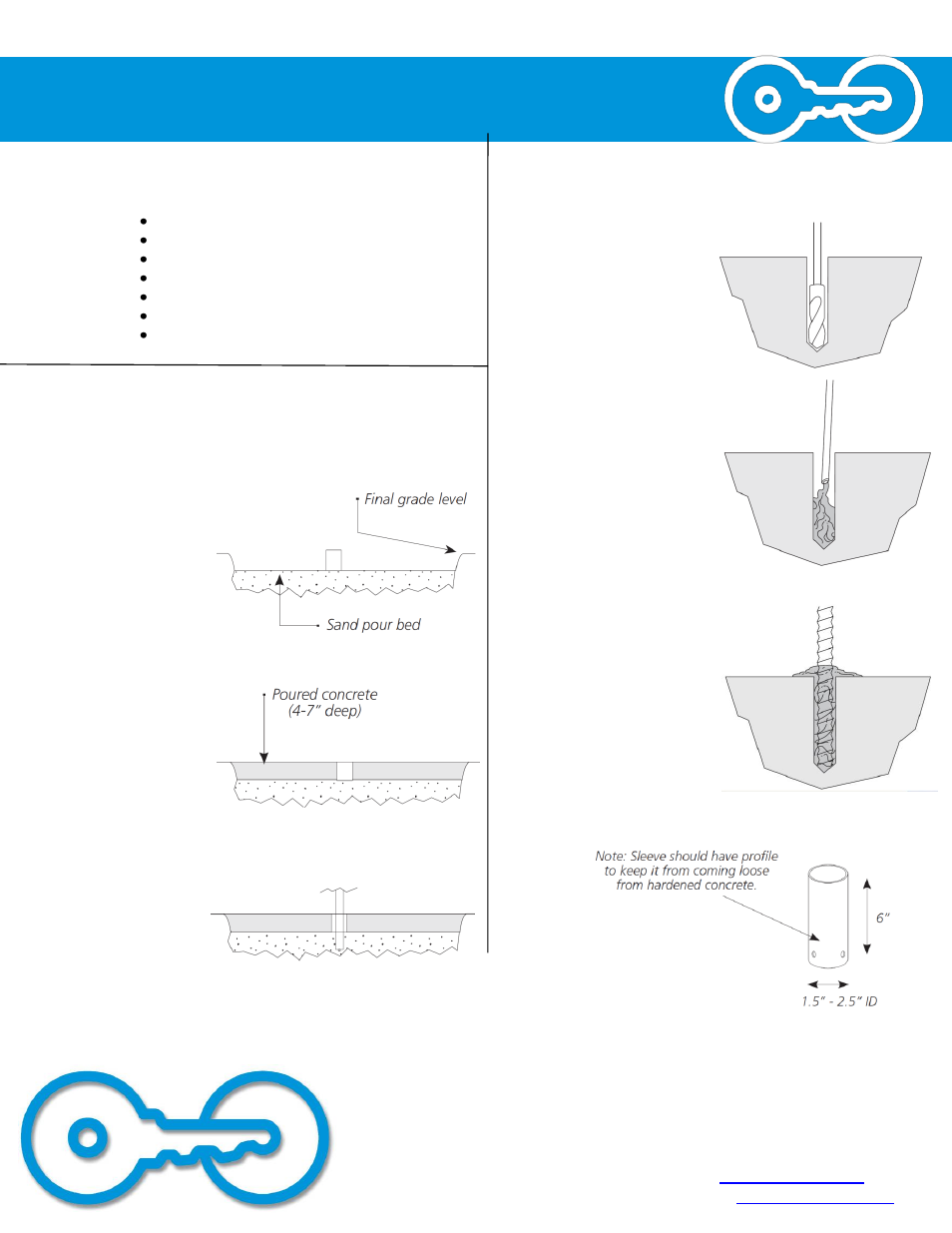

In-Ground Mounted Installation

Installing into Existing Concrete

Installing into New Concrete

Drill holes no less than 1.5”
diameter and no less than
6” deep into sidewalk.

Fill hole with Super Por Rok
or epoxy grout ½ - 2/3 full
starting from the bottom to

prevent air bubbles.

Place Recycle Rack into
holes, making sure the
rack is level. Make sure
the rack is level and held
in place until the grout
has set.

1.

2.

3.

Place corrosion resistant

sleeve (min. 1.5” inside

diameter) in sand pour bed

in exact location where rack

will be installed. Make

sure top of sleeve is at

same level as desired

finished concrete surface. Fill

sleeve with sand to keep it in

place and prevent it from

filling with concrete.

Pour concrete
& allow to

cure.

After appropriate
cure time, dig out
sand from sleeves
and insert racks,
making sure they
are level and at
the appropriate
height. Pour in Por-
Rok or epoxy grout
and allow to set.

1.

2.
.

3.
