American Bicycle Security Company
P.O. Box 7359
Ventura, CA 93006
Ph: (800) 245-3723 or (805) 933-3688
Fax: (805) 933-1865

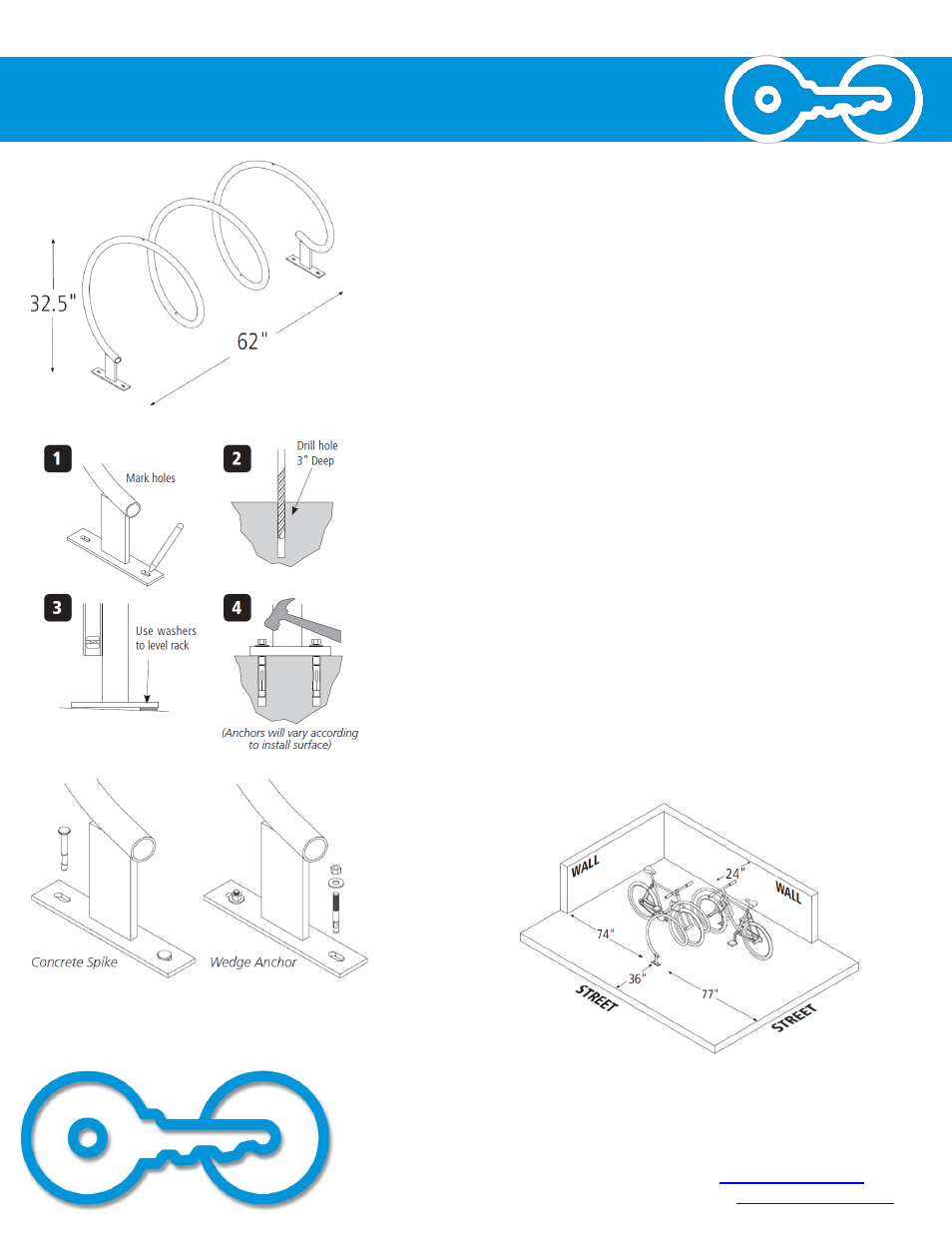

Helix Rack
Product
Helix Rack
Capacity
6 Bikes
Materials
1.25” Pipe (1.66” OD)
Finishes
A hot dipped galvanized finish after fabrication is standard.
Powder coat, thermoplastic, and stainless steel options
are also available.
Installation
Methods
Foot Mount has two 2.5”x6”x.25” feet with two anchors per
foot. Specify foot mount for this option.
Space Use
& Setbacks
Wall Setbacks: A minimum of 74” should be left between
the wall and the long side of the rack. If placing the Helix
perpendicular to the wall 12”-24” is the recommended
setback.
Distance Between Racks: Helix ends can be placed
together to look like a continuous spiral. Helixes placed
parallel with each other should allow for 13’ between each
rack, measured center to center.
Street Setbacks: 74” is the minimum setback distance
between the street and the rack. 77” is recommended.
Recommended Base Materials:
Solid concrete is the best base material for installation. Ask
your Dero Rack representative which anchor is appropriate
for your application to ensure the proper anchors are
shipped with your rack. Be sure nothing is underneath
the base material that could be damaged by drilling.
Installation:
3/8” anchors are shipped with the rack. Place the rack in
the desired location. Use a marker or pencil to outline the
holes of the flange onto the base material. Drill the holes
in accordance with the specifications shipped with the
anchors. Make sure the holes are at least 3” away from
any cracks in the base material. Tap in anchors and follow
directions for the specific anchor shipped with the rack.
