Compack rack – American Bicycle Security Company Compack Rack User Manual
Page 2
American Bicycle Security Company
P.O. Box 7359
Ventura, CA 93006
Ph: (800) 245-3723 or (805) 933-3688
Fax: (805) 933-1865
Compack Rack
Product
Compack Rack
Capacity
8 Bikes
Materials
.75” Steel Tube
Finishes
A hot dipped galvanized finish after fabrication is standard.
Installation
Methods
The Compack Rack is a freestanding unit that may also be
bolted to the ground with 3/8” anchors for added security.
Space Use
& Setbacks

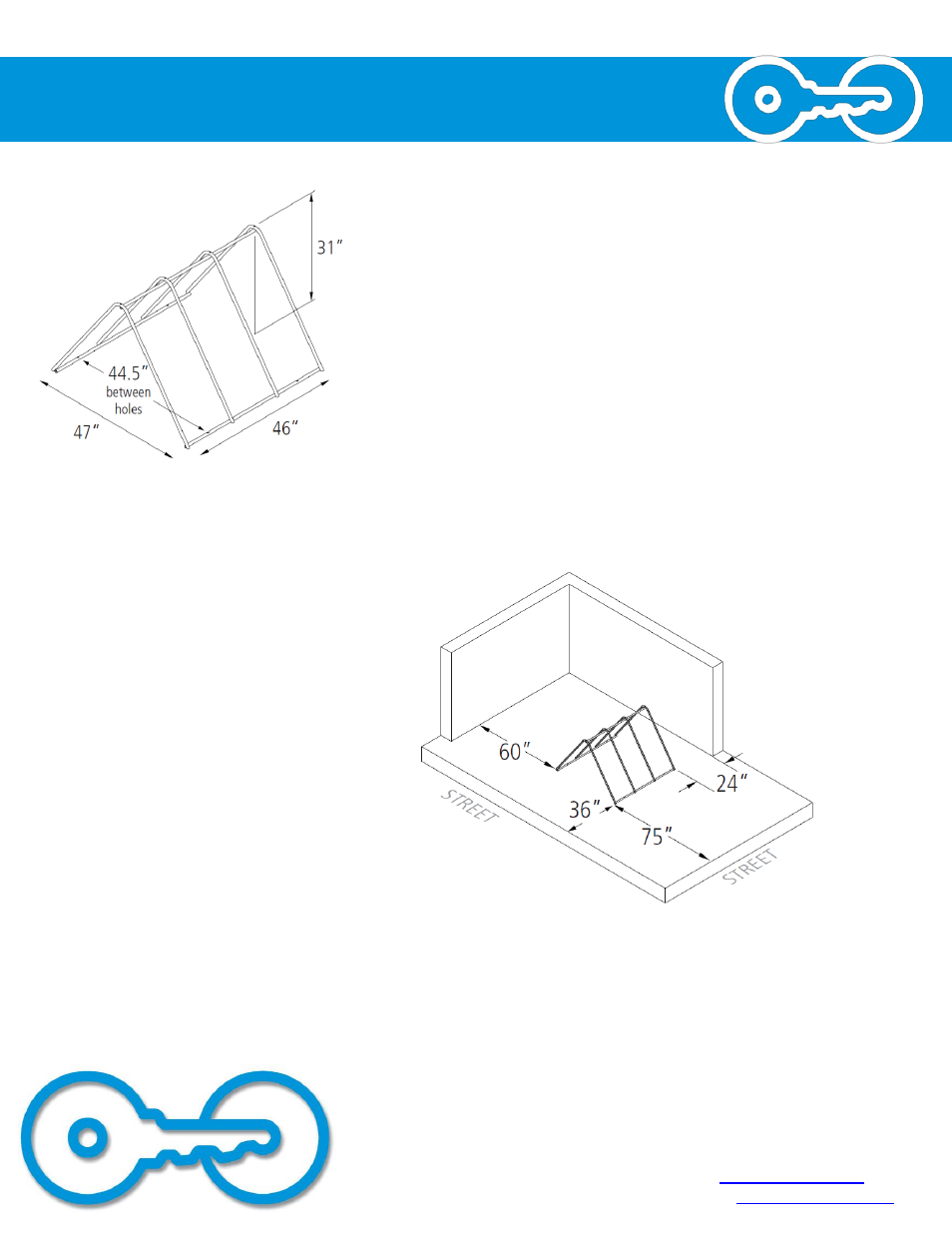

The Compack Rack is 44.5”W x 46”L x 31”H. Each unit
holds 8 bikes and can be stored on a standard pallet.
Wall Setback: A minimum of 60” should be left between
the wall and the long side of the rack.
Street Setback: For racks set parallel to the street,
a 75” setback is recommended. For racks installed
perpendicular to the street, 24” is the minimum setback.
36” is recommended.
Between Racks: For racks set next to each other, 24” is
the minimum setback. 36” is recommended.
