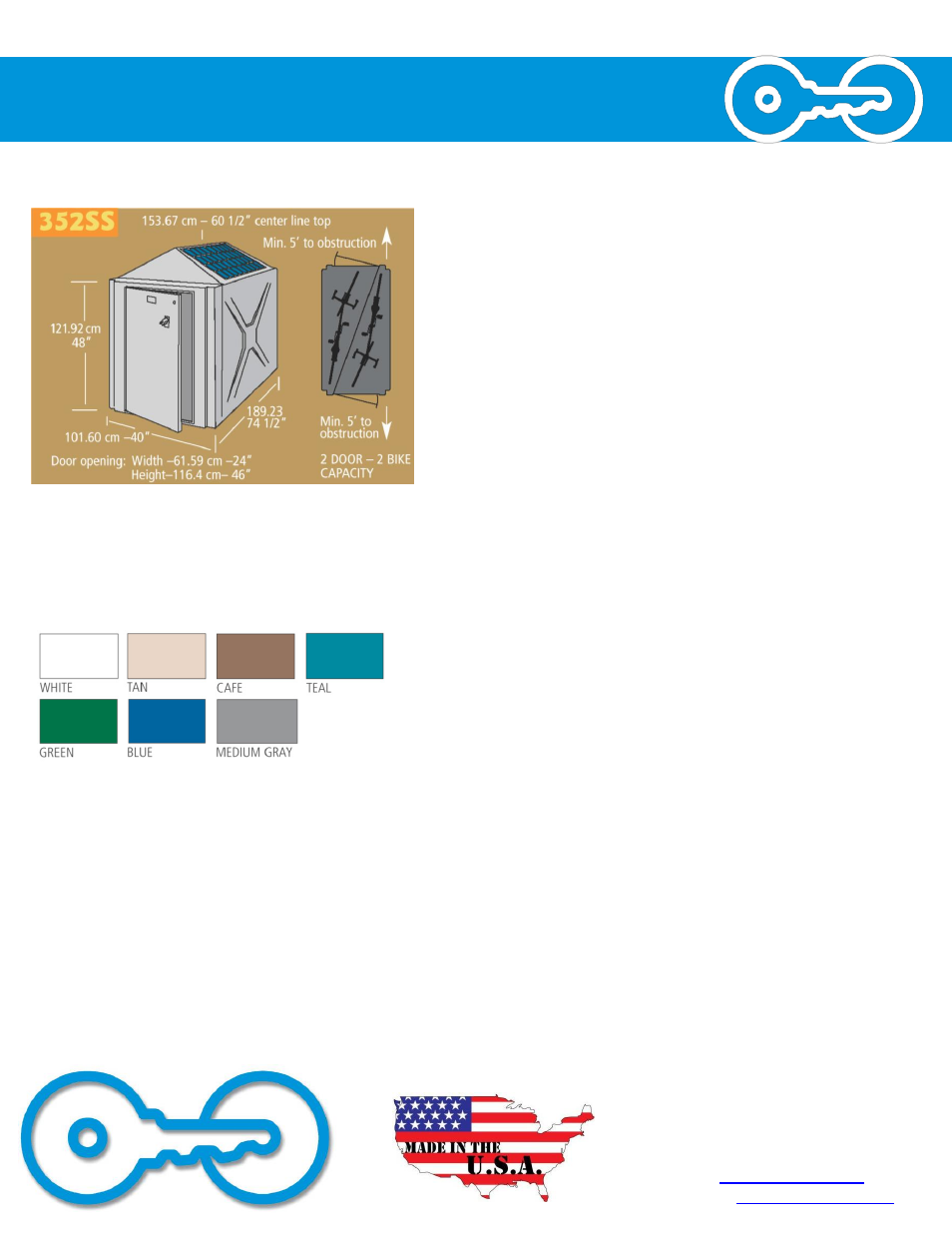

Solar-Shell™ Model 352SS

Product

Solar-Shell™ Model 352SS

Capacity

2 door/2 Bikes or Disaster Storage Container

System

The basic unit is composed of a PV (Photovoltaic)

panel, controller unit, 12V to 110V inverter and a

solar/cell maintenance free sealed gel battery (for

photovoltaic applications). In simple terms, the PV

panel maintains the charge in the battery, the 12V

battery power is converted to 110V through the

inverter which powers the internal battery charger on

the bike. By having the battery, there is power

available to charge in low sun light conditions. All of

these components were designed as an integrated
system for this application to provide maximum output

and battery charging capability. These components are

all integrated into the new Solar-Shell™ locker.

Design

One of the unique features of the new Solar-Shell™

locker is that the angle of the PV panel can be

adjusted to optimize year-round sun based on the

geographic latitude at which the locker is located. You

provide the latitude and our technicians will see that

the PV panel is set when it arrives. Our current locker

allows PV panel angle adjustment to accommodate

latitudes of the continental US and other countries

which fall into the same latitude band in both the

Northern & Southern hemisphere. Other latitudes

accommodated upon request.

Setback

Please allow 5ft clearance for both doors

Circuitry

Electrical building codes are not a problem with the

system operating at a safe 12 volts DC. The bike

charging unit plugs directly into a U.L. approved

inverter. For protection to the electrical components

we have a controller module with automatic shutdown

circuitry which prevents damage to the electric

components under a number of situations. And should

the system go into an automatic shutdown, it is self-

initializing which means it will resume charging on its

own. Other voltages can be readily accommodated for

International applications.

Locks

2 Standard Lock Options (No charge)

●High-security, T-Handle Abloy cylinder lock,

removable plug-type cylinder. Locker is recessed in the

door face.


●Heavy duty stainless steel padlock handle will

accommodate high security padlocks. Padlock not

included.

Installation Steps:

Color options:
